    HiBoost CommLink 30K Long-Range Commercial Cell Signal Booster | Top Signal Series

    Bulk Pricing:
    Buy in bulk and save

    Tier Price Rates

    • Professional system for office, warehouse & commercial environments
    • Supports hundreds of cell phone users simultaneously
    • 10% more indoor coverage with your choice high-gain outdoor omni or directional antenna
    • 2 inside antenna ports, with choice of 2 or 4 high-performance EDGE indoor dome or panel antennas
    • Web-based portal & Bluetooth monitoring, administration & alerts
    • Color LCD touchscreen with automatic or adjustable gain per cellular band
    • Boosts voice, text & 5G/4G data for all major carriers
    Outside Signal Strength
    Coverage @ 700 MHz LTE
    5 Bars
    Up to 33,000 ft²
    3 Bars
    Up to 19,000 ft²
    1 Bar
    Up to 11,000 ft²

    Free lifetime support
    $2,499.99
    SKU: TS546501
    Shipping:
    Calculated at Checkout

    Product Description

    Cell phone signal booster installation tips banner
    Cell phone signal booster installation tips mobile banner

    Features of the HiBoost CommLink 30K Long-Range system

    • Coverage up to 33,000 square feet for offices, retail stores, warehouses, and multi-level facilities—at least 10% more usable coverage than the standard CommLink 30K kit.
    • Two inside antenna ports, each delivering up to 14 dBm of amplified downlink signal to its own antenna. Each port covers up to 16,500 square feet, half the system total, giving you two independently fed coverage zones.
    • This Long-Range kit, available only from Powerful Signal, features your choice of outside high-gain antenna that delivers stronger signal to the amplifier, increasing your indoor coverage by 10 percent or more over the standard CommLink 30K kit:
    • The 44″-long Top Signal high-gain LPDA directional antenna sends and receives signal from a tower or towers in a specific direction with 11.2 to 13.1 dBi of gain, 66 to 157 percent more than our standard LPDA.
    • The 30″-tall Top Signal high-gain omnidirectional antenna sends and receives signal in all directions with 4.0 to 6.0 dBi of gain, 58 percent more than our standard cylinder omni antenna.
    • Also includes your choice of two or four inside dual-mount dome antennas or flex-mount panel antennas. (Get help picking the right antennas.)
    • Compact, wall-mountable metal enclosure with integrated thermal protection and oscillation detection.
    • LCD touchscreen for local control and gain adjustment, with both automatic (AGC) and manual (MGC) gain controls.
    • Monitor and troubleshoot your booster with HiBoost’s Signal Supervisor smartphone app and web portal.
    • Built for 24/7 continuous duty, supporting simultaneous multi-user voice and data operation.
    • Includes commercial-grade antennas and components.
    • Carrier agnostic: Works with all major US and Canadian carriers.
    • Improves 5G and 4G/LTE service for voice, text, and data. (Learn more about 5G compatibility.)

    The HiBoost CommLink 30K is a professional-grade cell signal amplifier engineered for office, commercial, and light-industrial environments that need improved cell signal reception. Delivering up to 72 dB of system gain, the CommLink 30K improves voice and data to reduce dropped calls and missed emails and texts, keeping your business, employees, residents, and/or guests connected with a stronger cell signal.

    The HiBoost CommLink 30K Long-Range commercial cell signal booster, part of Powerful Signal’s exclusive Top Signal Series, pairs the CommLink 30K amplifier with our top-of-the-line high-gain outdoor antennas—ideal for properties in fringe coverage areas or sites where the nearest cell tower is far away. The extra antenna gain captures more outside signal, expanding your usable indoor coverage and delivering stronger, more reliable cell service.

    This system includes two inside dome or panel antennas, one for each of the amplifier’s inside ports, that send amplified signal to the phones in your building. You may customize your CommLink 30K Long-Range system by adding a second antenna to each of its two inside ports, for a total of four.

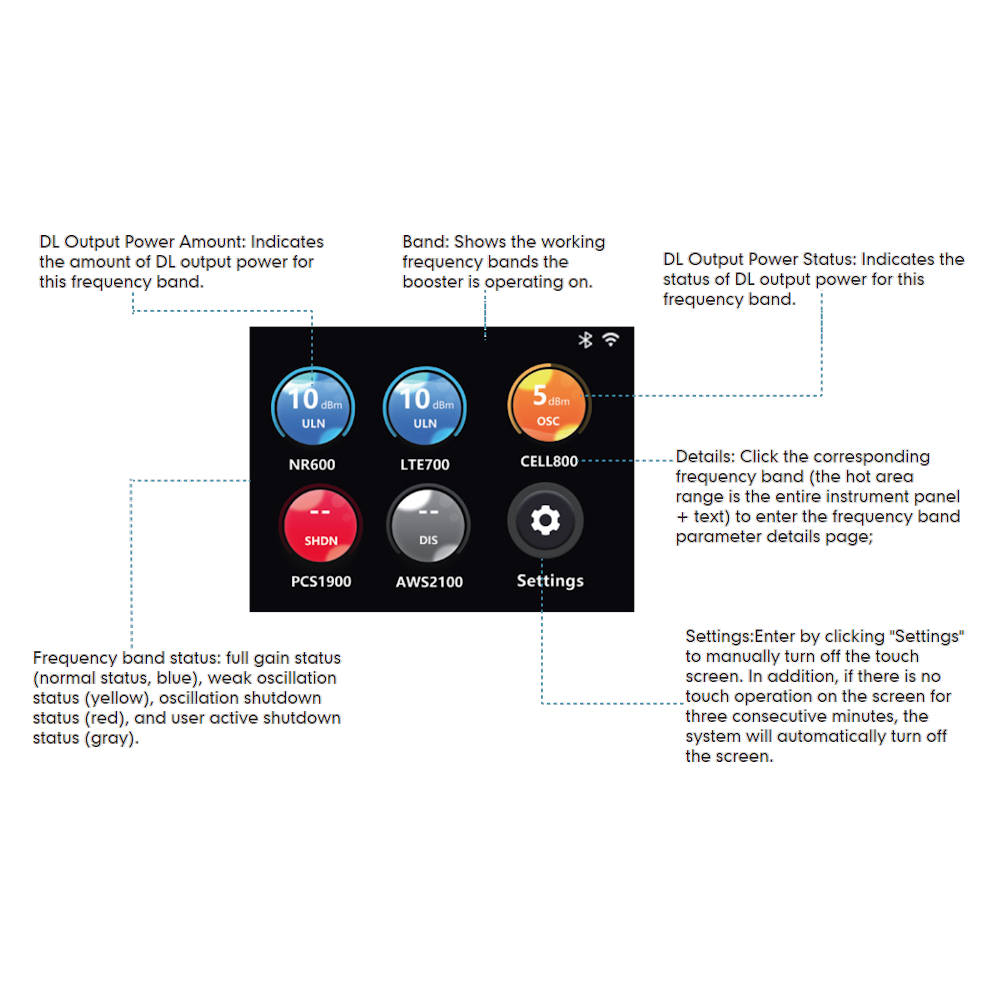

    HiBoost CommLink 30K Pro30T-5S-BTW LCD display and controls
    The HiBoost CommLink 30K amplifier features an LCD touchscreen display with controls for gain and power. (Click to enlarge.)

    Who is the HiBoost CommLink 30K Long-Range for?

    • Offices, retail stores, and multi-level facilities needing reliable cellular coverage.
    • Multi-unit residential structures.
    • Environments with multi-user voice and data demands.
    • Buildings in fringe coverage areas or where the nearest cell tower is far away, where the extra outdoor antenna gain matters most.
    • Remote and rural locations with weak cell service.
    • Buildings with materials that block outside cell signal (steel, low-e glass, concrete, plaster, etc.).
    • Areas below ground level, and other places where cell reception is poor.

    Signal Supervisor web portal

    With an Ethernet connection, you can monitor, administer, and receive email alerts from your HiBoost CommLink 30K system from any device with a web browser and internet access. You can also administer multiple HiBoost systems at one or multiple locations.

    Monitor your CommLink 30K system from your smartphone

    HiBoost’s Signal Supervisor app for smartphones helps you set up and monitor your cell signal booster. The booster links to your iPhone or Android smartphone via a Bluetooth or WiFi connection. With Signal Supervisor, you can:

    • Register your booster via a QR Code or Bluetooth.
    • Monitor your signal booster’s status via Bluetooth.
    • Set up and receive remote alerts if your booster isn’t operating properly.
    • View your booster’s power settings, gain, and dBm output.
    • Manage multiple boosters.

    HiBoost’s Signal Supervisor app is available for Apple iOSexternal link icon and Androidexternal link icon devices.

    The HiBoost Signal Supervisor app for iPhone and Android smartphones for use with HiBoost cell phone signal boosters
    Download on the App Store Get it on Google Play

    Best practices: a custom-designed HiBoost CommLink 30K solution

    In a large building, office, or warehouse, you’ll get the best results and performance from a HiBoost CommLink 30K with a custom design and professional installation.

    Working with your floor plans, Powerful Signal’s design engineers will create design specifications that will allow you to use the fewest number of components to get the maximum amount of cellular coverage inside your building.

    Powerful Signal’s professional installer will have knowledge of local building codes and the proper tools and experience to make sure your system is set up and configured correctly.

    Call Powerful Signal at 435-634-6800 or request a free custom quote online. We’ll design a custom system that will solve your cellular reception and connectivity problems at the best possible price point. We’ve designed thousands of cell signal amplifier systems—let us create one for you!

    Office floor with a cellular booster system and dome antenna An office floor with amplified cellular signal from a HiBoost amplifier and one dome antenna.

    Purchasing a HiBoost CommLink 30K Long-Range system

    The HiBoost CommLink 30K Long-Range can be self-installed if you are familiar with cellular amplification equipment. We’ll be happy to advise you on the best placement of antennas or provide a custom, turnkey solution. If you purchase this system as a standalone product, it includes the following components:

    HiBoost CommLink 30K cell signal booster Pro30T-5S-BTW icon HiBoost CommLink 30K cell signal amplifier Pro30T-5s-BTW
    HiBoost 12V/3A AC/DC power supply icon AC/DC adapter
    Top Signal high-gain directional LPDA antenna with U-bolts TS221101 icon Choice of…
    Top Signal high-gain LPDA antenna w/mounting hardware TS221101
    Top Signal High-Gain Omni Cellular Antenna 698-2700 MHz N-Female TS210681 icon …or
    Top Signal wideband high‑gain omni antenna w/mounting hardware TS210681
    Top Signal TS-400 coax cable 75 feet TS340075 icon 75′ Top Signal TS‑400 coax cable TS340075
    Top Signal adjustable rooftop antenna mount TS430001 icon Adjustable rooftop antenna mount TS430001
    Top Signal 50-ohm lightning surge protector TS450001 icon Top Signal 50‑ohm lightning surge protector TS450001
    HiBoost CommLink 30K user manual icon HiBoost CommLink 30K user manual

    2-antenna systems (one antenna per inside port) also include:

    Top Signal EDGE Dual-Mount Dome Antenna N-Female TS250620 icon Choice of…
    Top Signal EDGE dome antenna w/mounting post, nut & mounting plate TS250620 (×2)
    Top Signal EDGE Flex-Mount Panel Antenna N-Female TS260820 icon …or
    Top Signal EDGE panel antenna w/wall-mount bracket & mounting post TS250374 (×2)
    HiBoost 400 coax cable 50 feet TS340050H icon 50′ HiBoost 400 coax cable TS340050H (×2)

    4-antenna systems (two antennas per inside port) also include:

    Top Signal EDGE Dual-Mount Dome Antenna N-Female TS250620 icon Choice of…
    Top Signal EDGE dome antenna w/mounting post, nut & mounting plate TS250620 (×4)
    Top Signal EDGE Flex-Mount Panel Antenna N-Female TS260820 icon …or
    Top Signal EDGE panel antenna w/wall-mount bracket & mounting post TS250374 (×4)
    HiBoost 400 coax cable 50 feet TS340050H icon 50′ HiBoost 400 coax cable TS340050H (×4)
    Top Signal TS412101 2-Way Splitter 50 Ohm N-Female icon Top Signal 2‑way N‑female 50‑ohm splitter TS412101 (×2)
    Top Signal TS-400 coax cable 2 feet TS340002 icon 2′ Top Signal TS‑400 coax jumper cable TS340002 (×2)

    How the HiBoost CommLink 30K works

    The HiBoost CommLink 30K receives the outside cell signal through a single donor antenna, amplifies it, and rebroadcasts it inside your building through ceiling-mounted dome antennas or wall-mounted panel antennas. The amplifier has two inside antenna ports, and each one drives its own antenna at up to 14 dBm, covering half the system’s total area. Adding a 2-way splitter to each port takes the system to four inside antennas, dividing the same amplified signal (and coverage area) across more zones in your building. This allows you to stay connected in areas where cell service is poor or where your building materials interfere with signals from the local cell tower.

    Works with all major cellular carriers

    The HiBoost CommLink 30K works with all major wireless carriers, including Verizon, T-Mobile, AT&T, Boost Mobile, UScellular, GCI Alaska, and most others.

    It operates on common cellular frequencies.

    • 700 MHz (SMH) bands 12, 13, 17.
    • 850 MHz (Cellular 850) band 5.
    • 1700/2100 MHz (AWS) band 4.
    • 1900 MHz (PCS) bands 2, 25.
    Carrier logos for Verizon, T-Mobile, AT&T, Boost Mobile, UScellular, GCI Alaska
    T-Mobile customers please read about band 71 and cell signal boosters

    Which antennas should I choose?

    This system gives you the choice of an outdoor directional or omnidirectional antenna and either two or four indoor dome or panel antennas. Here are some general guidelines for selecting the right antennas.

    Outside (donor) antenna:

    • The Top Signal high-gain omnidirectional antenna picks up signal from cell towers in all directions with 4 to 6 dBi of gain. It’s the best option if you want to amplify all major carriers or have obstructions that block the line of sight to your preferred tower.
    • The Top Signal high-gain LPDA directional antenna works best if you want to amplify a specific carrier and have a direct (or nearly direct) line of sight to a specific, distant cell tower. With 11.2 to 13.1 dBi of gain, it pulls in significantly more signal than a standard LPDA. This antenna will work if a distant feature (like a hill or mountain) blocks your view of the tower, but you need a clear path for at least a few hundred yards from the antenna. The high-gain LPDA is also an excellent choice if there’s a powerful cell tower nearby but you need to bypass that tower in favor of a more distant one operated by your preferred carrier.

    Inside (broadcast) antenna:

    • The ceiling-mounted Top Signal EDGE dome antenna works best in most circumstances. It broadcasts downward and all around in a shape similar to a donut or an inner tube. It usually gives more broad, even coverage than a wall-mounted panel antenna and is less noticeable than a panel antenna. Installing a dome antenna does, however, require that you have access above the ceiling to pull cable and mount the antenna.
    • The wall-mounted Top Signal EDGE panel antenna broadcasts forward in a sideways teardrop shape. It’s a better option if you don’t have access above your ceiling or if you want to mount the antenna on the outside perimeter of the area you want to cover. It’s also a good option for long, narrow indoor areas.
    • Spread the two ports apart. Each inside port feeds its own antenna and covers half the system’s total area, so put those antennas in different parts of the building rather than near one another. Two antennas aimed at the same space overlap their coverage and leave the rest of your floor plan unserved.

    If you’re still not certain which antennas will work best for you, please call us at 435-634-6800. Our technical support representatives will be happy to discuss your specific requirements and give you a recommendation based on years of professional experience.

    How much area will the HiBoost CommLink 30K Long-Range cover?

    With strong outside cell signal (−95 dBm RSRP or greater), the HiBoost CommLink 30K Long-Range can cover up to 33,000 square feet of indoor building space with 700 MHz signal, split evenly between its two inside antenna ports at up to 16,500 square feet each—at least 10 percent more than the standard CommLink 30K kit. The high-gain donor antennas are especially valuable when outside signal is weak, where the extra antenna gain translates directly into more usable indoor coverage. The size of the coverage area depends on many factors, including:

    • Outside cell signal strength received by the donor antenna.
    • The type of antennas you choose (dome or panel) and where you position them.
    • Inside building materials. (Cellular frequencies pass through wood framing and drywall more easily than through steel and concrete.)
    • Cellular frequencies used by the carrier and the device. (Lower-frequency LTE and 800 MHz signals travel farther than higher-frequency AWS and PCS signals.)

    Substandard or inadequate conditions in any of these factors will reduce your coverage area.

    Powerful Signal has years of experience designing and installing cellular amplification systems. Please call us at 435-634-6800 or contact us online, and we’ll be happy to calculate the coverage area this system will provide in your building and answer any other questions about this amplifier.

    FCC notice

    For information on federal rules governing the use of consumer cell signal boosters, please see our FCC notice page.

    Prop 65 notice

    Caution triangle icon Warning This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.govexternal link icon.

    Product Specifications

    Usage:
    Large office/small office/warehouse/industrial
    Strong outside signal (−95 dBm RSRP, 5 bars):
    Up to 33,000 ft² indoor coverage @ 700 MHz
    Fair outside signal (−105 dBm RSRP, 3 bars):
    Up to 19,000 ft² indoor coverage @ 700 MHz
    Weak outside signal (−115 dBm RSRP, 1 bar):
    Up to 11,000 ft² indoor coverage @ 700 MHz
    Outside antenna:
    Omnidirectional high-gain cylinder or directional high-gain LPDA
    Inside antenna:
    Omnidirectional dome or directional panel (2 or 4)
    Cable Type:
    400
    Connector Type:
    N
    Impedance:
    50 Ω
    Gain/Loss:
    +72 dB max
    Max Output Power (Downlink):
    14 dBm per port (×2)
    Booster Case Material:
    Metal
    Signal Readout:
    LCD touchscreen display, smartphone app & web portal
    NDAA 889:
    Compliant
