Installer Tools
The Top Signal TS420001 RF Explorer signal meter for installing and troubleshooting signal booster systems
For professional installations
These tools are professional use when installing cell phone signal booster systems in commercial buildings and residences.
If you have any questions about our line of installer tools, please don’t hesitate to contact us.
-
Top Signal TS800101 Soft Carry CaseTop Signal TS800101 Soft Carry Case Product features Soft-sided zipper case. Fits weBoost mobile amplifiers* (Drive 4G-S, Drive 4G-M, Drive 4G-X). 14 × 10-inch exterior, 13 × 9½-inch interior. 2...Outside Signal Strength Coverage Area @ 800 MHzFlag For mobile boostersFeature 14" × 10" soft-sided caseFeature Pockets and straps hold weBoost mobile amplifiers and accessories (sold separately)Feature Zippers open on three sides -
DL-801K Ratchet Crimping Tool for Coax CableDL-801K Ratchet Crimping Tool for Coax Cable Overview 8.7-inch professional ratchet-type crimping tool For N, F, and other types of connectors and terminals. Application Designed for professional installers to attach...Outside Signal Strength Coverage Area @ 800 MHzFeature Attaches N-connectors to 400 coax cableFeature For professional installersUsage CommercialConnector Type N-maleCable Type 400 coax -
CST400 Coax Cable Prep ToolTwo-step tool for preparing 400-type coax cable. First cut prepares cable to the proper center conductor length; second cut removes the proper length of the outer jacket, exposing the braid. Includes built-in debur tool...Outside Signal Strength Coverage Area @ 800 MHzFeature Prepares bulk 400 coax cable for N-connectorsFeature For professional installersUsage CommercialConnector Type N-maleCable Type 400 coax -

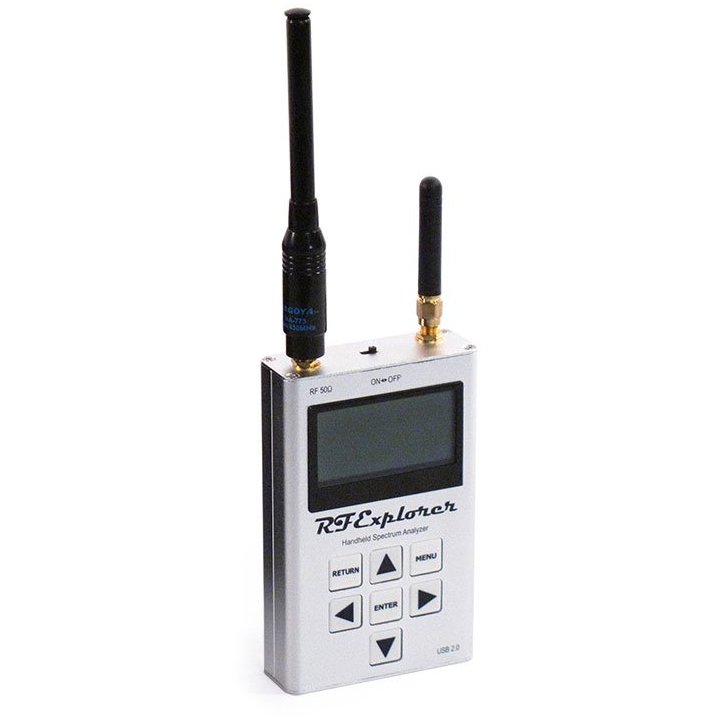

Top Signal TS420001 RF Explorer Signal MeterTop Signal TS420001 RF Explorer Signal Meter Product features Detects cellular signal strength and direction. Works indoors and outdoors. Detects frequencies from 15 MHz to 2700 MHz (2.7 GHz), including cellular and WiFi...Outside Signal Strength Coverage Area @ 800 MHzFlag Most powerfulFeature Detect strength, distance, direction of existing cell signalsFeature Detects 15 MHz–2700 MHz frequency rangeUsage CommercialImpedance 50 ΩConnector Type SMA-female (×2)Frequency Range 15 MHz–2700 MHzFrequency Span 112 kHz–600 MHzAmplitude Resolution 0.5 dBmDynamic Range (Left SMA Port) −115 dBm–0 dBmDynamic Range (Right SMA Port) −110 dBm–−10 dBmMax Input Power (Left SMA Port) +5 dBmMax Input Power (Right SMA Port) +30 dBmAverage Noise Level (Typical) −110 dBmFrequency Stability & Accuracy (Typical) ±10 ppmAmplitude Stability & Accuracy (Typical) ±6 dBmFrequency Resolution 1 kHzResolution Bandwidth (RBW) 3 kHz–600 kHz (automatic) -
WilsonPro 460118 Signal MeterWilsonPro 460118 Signal Meter - Installer Tool Overview Detects cellular signal strength, direction, and distance. Works indoors and outdoors. Detects 700, 800, 1900 and 2100 MHz bands. SMA-female connector attaches...Outside Signal Strength Coverage Area @ 800 MHzFeature Detect strength, distance, direction of existing cell signalsFeature Works with 700, 800, 1900, 2100 MHz bandsUsage CommercialImpedance 50 ΩConnector Type SMA-femaleFrequency Range 700 MHz–2100 MHz
