Attenuators

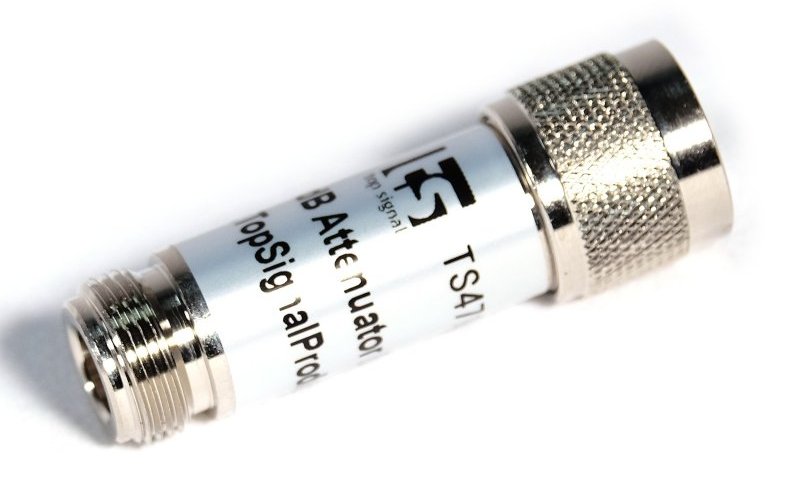

Top Signal 50‑ohm attenuator A Top Signal 50‑ohm attenuator with N-connectors

An attenuator reduces the signal strength between an outside antenna and an in-building cell phone signal amplifier.

Attenuators are used in special situations where there’s a very strong outside signal that’s overwhelming the booster, but not the walls of the building. An attenuator, attached between the outside and antenna and the booster, dampens the signal before being redirected to the inside antennas.

Attenuators are typically used in commercial building installations, and are not usually required in consumer and residential applications. They are also not needed with the WilsonPro 4000/4000R and WilsonPro 1000/1000R systems, which feature automatic gain adjustment.

If you think your system may require an attenuator, please contact us and we’ll be happy to help you find an attenuator solution that fits your needs.

Sort by
View as
  • Top Signal TS471003 −3 dB Attenuator with N-Male/N-Female Connectors (50 Ohm)
    Top Signal TS471003 −3 dB Attenuator with N-Male/N-Female Connectors (50 Ohm)
    Top Signal TS471003 −3 dB Attenuator with N-Male/N-Female Connectors (50 Ohm) Product features Attenuates (reduces) signal −3 dB. N-male connector on one end, N-female on the other. Connects directly to...
      Outside Signal Strength Coverage Area @ 800 MHz
      Feature Attenuates −3 dB
      Feature N-male and N-female connectors
      Feature No jumper cable required
      Connector Type N-male & N-female
      Frequency Range 0 (DC)–3 GHz
      Impedance 50 Ω
      Gain/Loss −3 dB
      $39.95
      Compare
      SKU: TS471003
    • Top Signal TS471006 −6 dB Attenuator with N-Male/N-Female Connectors (50 Ohm)
      Top Signal TS471006 −6 dB Attenuator with N-Male/N-Female Connectors (50 Ohm)
      Top Signal TS471006 −6 dB Attenuator with N-Male/N-Female Connectors (50 Ohm) Product features Attenuates (reduces) signal −6 dB. N-male connector on one end, N-female on the other. Connects directly to...
        Outside Signal Strength Coverage Area @ 800 MHz
        Feature Attenuates −6 dB
        Feature N-male and N-female connectors
        Feature No jumper cable required
        Connector Type N-male & N-female
        Frequency Range 0 (DC)–3 GHz
        Impedance 50 Ω
        Gain/Loss −6 dB
        $39.95
        Compare
        SKU: TS471006
      • Top Signal TS471010 −10 dB Attenuator with N-Male/N-Female Connectors (50 Ohm)
        Top Signal TS471010 −10 dB Attenuator with N-Male/N-Female Connectors (50 Ohm)
        Top Signal TS471010 −10 dB Attenuator with N-Male/N-Female Connectors (50 Ohm) Product features Attenuates (reduces) signal −10 dB. N-male connector on one end, N-female on the other. Connects directly to...
          Outside Signal Strength Coverage Area @ 800 MHz
          Feature Attenuates −10 dB
          Feature N-male and N-female connectors
          Feature No jumper cable required
          Connector Type N-male & N-female
          Frequency Range 0 (DC)–3 GHz
          Impedance 50 Ω
          Gain/Loss −10 dB
          $39.95
          Compare
          SKU: TS471010
        • Top Signal TS471020 −20 dB Attenuator with N-Male/N-Female Connectors (50 Ohm)
          Top Signal TS471020 −20 dB Attenuator with N-Male/N-Female Connectors (50 Ohm)
          Top Signal TS471020 −20 dB Attenuator with N-Male/N-Female Connectors (50 Ohm) Product features Attenuates (reduces) signal −20 dB. N-male connector on one end, N-female on the other. Connects directly to...
            Outside Signal Strength Coverage Area @ 800 MHz
            Feature Attenuates −20 dB
            Feature N-male and N-female connectors
            Feature No jumper cable required
            Connector Type N-male & N-female
            Frequency Range 0 (DC)–3 GHz
            Impedance 50 Ω
            Gain/Loss −20 dB
            $39.95
            Compare
            SKU: TS471020
          • Top Signal TS471030 −30 dB Attenuator with N-Male/N-Female Connectors (50 Ohm)
            Top Signal TS471030 −30 dB Attenuator with N-Male/N-Female Connectors (50 Ohm)
            Top Signal TS471030 −30 dB Attenuator with N-Male/N-Female Connectors (50 Ohm) Product features Attenuates (reduces) signal −30 dB. N-male connector on one end, N-female on the other. Connects directly to...
              Outside Signal Strength Coverage Area @ 800 MHz
              Feature Attenuates −30 dB
              Feature N-male and N-female connectors
              Feature No jumper cable required
              Connector Type N-male & N-female
              Frequency Range 0 (DC)–3 GHz
              Impedance 50 Ω
              Gain/Loss −30 dB
              $39.95
              Compare
              SKU: TS471030
            • Wilson 859936 −6 dB Attenuator with N-Female Connectors (50 Ohm)
              Wilson 859936 −6 dB Attenuator with N-Female Connectors (50 Ohm)
              Wilson 859936 −6 dB Attenuator with N-Female Connectors (50 Ohm) Product features Attenuates (reduces) signal −6 dB. N-female connectors on both ends. Jumper cable terminated with N-male connectors required...
                Outside Signal Strength Coverage Area @ 800 MHz
                Feature Attenuates −6 dB
                Feature N-female connectors
                Connector Type N-female
                Frequency Range 700–2700 MHz
                Impedance 50 Ω
                Gain/Loss −6 dB
                $49.95
                Compare
                SKU: 859936
              • Wilson 859926 −10 dB Attenuator with N-Female Connectors (50 Ohm)
                Wilson 859926 −10 dB Attenuator with N-Female Connectors (50 Ohm)
                Wilson 859926 −10 dB Attenuator with N-Female Connectors (50 Ohm) Product features Attenuates (reduces) signal −10 dB. N-female connectors on both ends. Jumper cable terminated with N-male connectors...
                  Outside Signal Strength Coverage Area @ 800 MHz
                  Feature Attenuates −10 dB
                  Feature N-female connectors
                  Connector Type N-female
                  Frequency Range 700–2700 MHz
                  Impedance 50 Ω
                  Gain/Loss −10 dB
                  $49.95
                  Compare
                  SKU: 859926
                • Wilson 859927 −20 dB Attenuator with N-Female Connectors (50 Ohm)
                  Wilson 859927 −20 dB Attenuator with N-Female Connectors (50 Ohm)
                  Wilson 859927 −20 dB Attenuator with N-Female Connectors (50 Ohm) Product features Attenuates (reduces) signal −20 dB. N-female connectors on both ends. Jumper cable terminated with N-male connectors...
                    Outside Signal Strength Coverage Area @ 800 MHz
                    Feature Attenuates −20 dB
                    Feature N-female connectors
                    Connector Type N-female
                    Frequency Range 700-2700 MHz
                    Impedance 50 Ω
                    Gain/Loss −20 dB
                    $49.95
                    Compare
                    SKU: 859927
