WilsonPro Enterprise 4330 Commercial Cellular Booster Common Mode Installers’ Kit | 461075-C

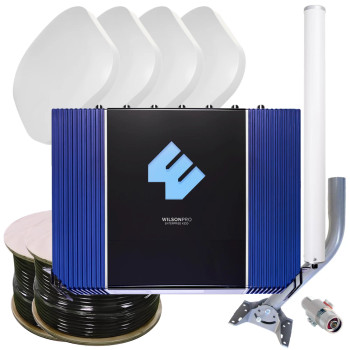

WilsonPro Enterprise 4330 Commercial Cellular Booster Common Mode Installers’ Kit

For integrators & installers
Bulk Pricing:
Buy in bulk and save
  • Channelized 5G/4G passive DAS solution with commercial-grade components
  • 1 high-gain omni outdoor antenna or 3 targeted outdoor antennas
  • Rack-mount or wall-mount amplifier
  • One year WilsonPro Cloud remote monitoring & administration service included
  • Color LCD status display
  • Boosts both voice & 5G/4G data
  • Works with all major cellular carriers
Outside Signal Strength
Coverage @ 700 MHz LTE
5 Bars
Up to 100,000 ft²
3 Bars
Up to 60,000 ft²
1 Bar
Up to 12,500 ft²

Call for Pricing

Free lifetime support
SKU: 461075-C
Call for Pricing

Product Description

Features of the WilsonPro Enterprise 4330 installers’ kit

  • This system is available to integrators and installers for custom installation with up to 100,000 ft² of indoor cellular coverage. question mark inside a circle
  • The WilsonPro Enterprise 4330 provides coverage for office buildings, hospitals, campuses, warehouses, and other large facilities. It has four independent amplifiers, each with its own port and automatic gain adjustment.
  • It features channelized capability, allowing specific blocks (channels) within a band of cellular frequency to be amplified or disabled. This feature can be critical when there is strong outside signal from multiple carriers or in installations where only one specific carrier is required. question mark inside a circle
  • Your choice of amplifier form factor:
  • The wall-mounted amplifier installs in an I.T. closet and has antenna ports on the top.
  • The rack-mounted amplifier fits into a standard 19″ server rack and has antenna ports on the back.
  • One high-gain omnidirectional antenna can send and receive all bands of frequency to and from cell towers in all directions. question mark inside a circle
  • Color LCD setup screen and power meter, plus built-in remote management and alert notifications for easy administration. question mark inside a circle
  • Boosts 5G and 4G/LTE service for voice, text, and data. question mark inside a circle
  • Carrier agnostic: Works with all major cellular carriers and networks.

The WilsonPro Enterprise 4330 is a channelized four-amplifier system designed for large commercial and government buildings, with indoor coverage of up to 100,000 square feet (depending on outside signal strength).

The WilsonPro Enterprise 4330 automatically controls the amplifier with its onboard software and adjusts the gain level, up or down, as needed. It will reduce its gain to prevent oscillation, and with Wilson’s XDR (eXtended Dynamic Range) technology, the Enterprise 4330 will never overpower or shut down.

This installers’ kit includes commercial-grade components, including a high-gain omnidirectional antenna, 4 inside dual-mount dome antennas, 500 feet of TS-400 coax cable, N-male EZ-crimp connectors, and a cable prep tool and crimping tool.

Common mode outside directional antenna available with WilsonPro Enterprise 1300, 4300, and 4330 cell signal booster installer kits This installers’ kit includes an omnidirectional antenna that picks up signal from cell towers in all directions. An array of 3 directional antennas is also an option. (Learn more.)

Who is the WilsonPro Enterprise 4330 installers’ kit for?

Professional integrators, installers, and I.T. managers for:

  • Office buildings, medical/business/education/government campuses, warehouses/distribution centers, and other large buildings.
  • Companies and organizations that need remote administration and change-in-status push notifications.
  • Buildings in urban areas and city centers, where outside signal can overwhelm most boosters or a distant cell tower is preferred above a closer one.
  • Organizations with heavy cellular user and data loads.
  • Buildings whose employees and clients frequently experience dropped calls, undelivered texts, or slow data rates.
  • Buildings in urban locations with building materials that block outside cell signal (steel, low-e glass, concrete, plaster, etc.).
  • Buildings with floor space below ground level, and other places where cell reception is poor.

Channelized filtering

“Part 20” consumer cellular boosters can amplify bands 12, 13, 5, 4, and 25 (which includes band 2).

Each band of frequency is divided into smaller units called blocks or channels. Cellular carriers license specific channels from the FCC, allowing multiple carriers in the same geographic area to use the same band of frequency without interference.

For example, PCS band 25 is divided into blocks A through G. Each block has an uplink frequency for phones to send data to the cell tower and a corresponding downlink frequency for towers to send data to phones; this allows phones to both send data and receive data at the same time.

How the WilsonPro Enterprise 4330 solve specific cellular problems

Most cell phone signal boosters are wideband amplifiers that simultaneously amplify all bands and channels of cellular frequency. They work well under most conditions.

In dense, urban areas, however, outside signal from multiple competing carriers can be “noisy” and low-quality; in that circumstance, the WilsonPro Enterprise 4330 can selectively amplify only the specific carriers and channels that your building needs, improving the quality of the signal that the booster amplifies indoors.

Another common issue is the near–far problem: You want to amplify a specific band of signal from Carrier A, but Carrier B has a tower closer to your building that’s using the same band. A wideband amplifier will reduce its gain on that band to compensate for Carrier B’s overwhelming signal, but Carrier A’s weaker signal needs more gain. The WilsonPro Enterprise 4330 can disable the channel Carrier B is using and provide full gain for Carrier A’s channel on the same band.

Your choice of outside antenna array

The WilsonPro Enterprise 4330 booster sends and receives signal to and from cell towers in the local area. Because those towers are often in different directions, Powerful Signal’s Enterprise 4330 kit offers two options for setting up the outside donor antennas:

Split Mode takes advantage of Wilson’s Multi-Tower Targeting Technology™. Three individual coax cables are run from the amplifier to the roof, where they connect to three directional antennas that are pointed at specific cell towers: one for 700 MHz (bands 12/17 and 13), one for 800 MHz (band 5), and one for 1700–2200 MHz (bands 2 and 4). With three individually targeted directional antennas, the amplifier will receive more signal because of the higher gain directional antennas provide.

Common Mode uses a single run of coax cable from the amplifier to the roof, where it connects to one high-gain omnidirectional antenna that sends and receives signal to and from all cell towers in a 360° radius. This setup receives all cellular bands of frequency from all carriers in all directions. Unlike Split Mode, Common Mode allows for the reception of the same bands of frequency used by multiple carriers from separate towers. In exchange for easier installation and wider reception than Split Mode, in Common Mode antenna gain is lower, reducing the indoor coverage area the amplifier can provide.

WilsonPro Enterprise 1300/1300R Split Mode Multi-Tower Targeting vs. Common Mode (Click to enlarge.)

Integrated WilsonPro Cloud service

The WilsonPro Enterprise 4330 comes with the WilsonPro Cloud service, which provides powerful remote administration tools for I.T. departments and system integrators, giving you high reliability with minimal system downtime.

With a WilsonPro Cloud subscription, you’ll receive customizable email and text alerts if the amplifier goes offline or experiences signal oscillation, weak signal, or no signal conditions.

With the WilsonPro Cloud you can remotely log on to the Enterprise 4330 through your phone, computer, tablet, or other device with a web browser. Once logged in, you can view the booster’s performance and signal levels and configure the system by turning cellular bands and channels on and off or rebooting the amplifier. The Cloud interface also includes a tool to help you tune the rooftop directional antenna.

If you administer multiple WilsonPro Enterprise boosters, the WilsonPro Cloud interface allows you to organize and monitor them by location and by customer account.

Remote monitoring is available through a wireless LTE connection using the outside donor antenna or through an Ethernet connection on the bottom of the Enterprise 4330 amplifier.

A one-year WilsonPro Cloud subscription with LTE service are included with the purchase of the Enterprise 4330 and is billed annually thereafter. For subscription pricing information, please call Powerful Signal at 435-634-6800 or contact us online.

WilsonPro Cloud logo 300x300

Optional plenum air coax cable upgrade

The WilsonPro Enterprise 4330 system includes 400-type coax cable to connect the amplifier to the four inside antennas. If your building requires fire-rated cable in plenum spacesexternal link icon, please ask us about upgrading to ½-inch plenum air coax. Plenum cable fully meets state and federal building codes.

Plenum cable also has nearly half the signal loss per foot of cable compared to 400-type coax cable, delivering stronger signal from the WilsonPro amplifier to your phones and other cellular devices.

(Plenum air cable is available at additional cost. Call Powerful Signal at 435-634-6800 for details.)

400-type coax cable and plenum air coax cable terminated with N-male connectors This system uses 400 coax (left), but you can upgrade to fire-rated plenum air coax cable (right) for building-code compliance and better performance.

Purchasing a WilsonPro Enterprise 4330 system

The WilsonPro Enterprise 4330 can be installed by cellular amplification integrators. We’ll be happy to advise you on the best placement of antennas or provide a custom, turnkey solution. This complete kit includes the following components:

WilsonPro Enterprise 4330 wall-mount 460075 icon Choice of…
WilsonPro Enterprise 4330 wall-mount amplifier 460075
WilsonPro Enterprise 4330 rack-mount 461075 icon …or
WilsonPro Enterprise 4330 rack-mount amplifier 461075
Schaffner IL13-US1-SVT-3100-183 power cable icon 6′ locking AC power cable
Top Signal High-Gain Omni Cellular Antenna 698-2700 MHz N-Female TS210681 icon Choice of…
Top Signal wideband high‑gain omni antenna TS210681 (×1)
Top Signal 5G Outdoor Pole-Mount Directional LPDA Antenna with N-Female Connector (50 Ohm) TS220971 icon or…
Top Signal wideband directional LPDA antenna TS220971 (×3)
Top Signal EDGE Dual-Mount Dome Antenna N-Female TS250620 icon Top Signal EDGE dome antenna w/mounting post, nut & mounting plate TS250620 (×4)
Top Signal TS-400 coax 500 ft. N-Male Connectors TS340500 icon Top Signal TS-400 coax cable 500′ spool TS340500 (×1/omni or ×2/LPDA)
Top Signal EZ-Crimp N-Male Connector for 400-Type Coax TS452040 icon Top Signal N-male EZ-crimp connector for 400 coax
TS452040 (×15/omni or ×21/LPDA)
Top Signal TS450001 Lightning Surge Protector 50 Ohm N-Male/N-Female icon 50‑ohm lightning surge protector TS450001 (×1/omni or ×3/LPDA)
Top Signal 400 coax cable prep tool TS421402 icon Coax cable prep tool TS421402
Top Signal ratchet crimping tool for 400 coax cable TS421401 icon Ratchet crimping tool TS421401
Top Signal adjustable rooftop antenna mount TS430001 icon Adjustable antenna mount TS43000x
(18″/omni or 38″/LPDA)
WilsonPro Enterprise 4330 user manual 460075/461075 icon WilsonPro Enterprise 4330 user manual

How the WilsonPro Enterprise 4330 works

Using Wilson Electronics’s patented technology, the WilsonPro Enterprise 4330 receives the outside cell signal, amplifies it, and rebroadcasts it inside your office through four individual ports. This allows you to stay connected in areas where cell service is poor or where your office’s building materials interfere with signals from the local cell tower.

With an active subscription to the WilsonPro Cloud service, you can monitor and administer your WilsonPro Enterprise 4330 from any device with a web browser.

Works with all major cellular carriers

The WilsonPro Enterprise 4330 works with all major wireless carriers, including Verizon, AT&T, T-Mobile, DISH Wireless, UScellular, GCI Alaska, and most others.

It operates on common cellular frequencies.

  • 700 MHz (SMH) bands 12, 13, 17.
  • 850 MHz (Cellular 850) band 5.
  • 1700/2100 MHz (AWS) band 4.
  • 1900 MHz (PCS) bands 2, 25.
Carrier logos for Verizon, AT&T, T-Mobile, UScellular, DISH Wireless, GCI Alaska

How much area will the WilsonPro Enterprise 4330 cover?

This system comes with four dome antennas that broadcast improved cellular signal in a spherical pattern. The radius of those circles depends on many factors, including:

  • Choice of outside antennas. (Three directional antennas in Split Mode will provide stronger signal than a single omnidirectional antenna in Common Mode.)
  • Outside cell signal strength received by the donor antenna(s).
  • Length of coax cable runs from the outside antenna(s) to the booster and from the booster to the inside antennas. (Always use the shortest runs of cable needed.)
  • Inside building materials. (Cellular frequencies pass through wood framing and drywall more easily than through steel and concrete.)
  • Cellular frequencies used by the carrier. (Lower-frequency LTE and 800 MHz signals travel farther than higher-frequency AWS and PCS signals.)

In general, the stronger the outside cell signal, the greater the interior broadcast distance.

Powerful Signal has has been designing and installing cellular amplification systems since 2007. Please call us at 435-634-6800 or contact us online, and we’ll be happy to calculate the coverage area this system will provide in your building and answer any other questions about this amplifier.

FCC notice

For information on federal rules governing the use of consumer cell signal boosters, please see our FCC notice page.

Prop 65 notice

Caution triangle icon Warning This product can expose you to chemicals, including nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govexternal link icon.

Product Specifications

Usage:
Large office/warehouse/industrial
Strong outside signal (−95 dBm RSRP, 5 bars):
Up to 100,000 ft² indoor coverage @ 700 MHz
Fair outside signal (−105 dBm RSRP, 3 bars):
Up to 60,000 ft² indoor coverage @ 700 MHz
Weak outside signal (−115 dBm RSRP, 1 bar):
Up to 12,500 ft² indoor coverage @ 700 MHz
Outside Antenna:
Omnidirectional (×1) / Directional LPDA (×3)
Inside Antenna:
Omnidirectional dome (×4)
Cable Type:
400
Connector Type:
N
Impedance:
50 Ω
Gain/Loss:
+70 dB max
Max output power (uplink):
25.4 dBm
Max output power (downlink):
16.9 dBm
Booster Case Material:
Metal
Signal Readout:
LCD touchscreen & web portal
Pricing:
Call for pricing

Warranty Information

For warranty information on this product, please see our WilsonPro warranty information page.
