    HiBoost Cabin 4K Home Pro Max Cell Signal Booster

    This kit available only from Powerful Signal
    Bulk Pricing:
    Buy in bulk and save

    Tier Price Rates

    • For small cabins or up to 3 rooms of coverage in larger cabins
    • Upgraded high-gain outside antenna for better reception in weak-signal areas
    • Professional-grade 400-type coax cable
    • 2 inside panel antennas distribute signal where you need it most in your home
    • LCD display with automatic & manually-adjustable gain
    • Includes smartphone app & Bluetooth administration
    • Boosts voice, text & 5G/4G data for all major carriers
    Outside Signal Strength
    Coverage @ 700 MHz LTE
    5 Bars
    Up to 6,000 ft²
    3 Bars
    Up to 3,500 ft²
    1 Bar
    Up to 1,500 ft²

    Free lifetime support
    $599.99
    SKU: TS542220
    Shipping:
    Calculated at Checkout

    Product Description

    Cell phone signal booster installation tips banner
    Cell phone signal booster installation tips mobile banner

    Features of the HiBoost Cabin 4K Home Pro Max cell signal booster

    • With a maximum uplink gain of 65 dB, the HiBoost 4K Pro cellular booster is designed for small to medium-sized homes or a few rooms of a large home. question mark inside a circle
    • This cabin/rural kit, available only from Powerful Signal, features the Top Signal 44″ directional LPDA antenna. With 11.2 to 13.1 dBi of gain, it has up to 2​1⁄2 times the gain of a standard LPDA and can provide the critical difference needed for picking up signal in remote and rural locations.
    • Two indoor antennas allow you to distribute signal more evenly in long-and-narrow or L-shaped houses and homes with two floors. The first panel antenna is inside the amplifier; the second panel antenna is a separate component connected to the amplifier by 30 feet of coax cable.
    • The amplifier has an easy-to-read backlit LCD display, with uplink/downlink/power status on one screen and optional manual settings.
    • Monitor and troubleshoot your booster with HiBoost’s Signal Supervisor app for smartphones.
    • Boosts signal for up to 100 simultaneous cellular devices.
    • Includes two low-loss TS-400 coax cables.
    • Carrier agnostic: Works with all major U.S. and Canadian carriers.
    • Improves 5G and 4G/LTE service for voice, text, and data. question mark inside a circle

    The HiBoost Cabin 4K Home Pro Max improves cellular reception in your remote or rural home. For the best possible signal, this system combines the booster with a high-gain wideband donor antenna.

    This kit includes two inside panel antennas that send amplified signal to the phones in your home.

    HiBoost 4K Plus display and controls The HiBoost 4K Pro amplifier features a backlit LCD display and controls for gain and power.

    Who is the HiBoost Cabin 4K Home Pro Max for?

    • Buildings in remote locations with weak cell service (rural areas, cabins, farms, construction sites, etc.).
    • Structures with building materials that block outside cell signal (metal, logs, plaster, concrete, UV-coated windows, etc.).
    • Get-away homes where you still need to be able to access to the internet, check work emails, power cabin technology, or call for help if you need it.

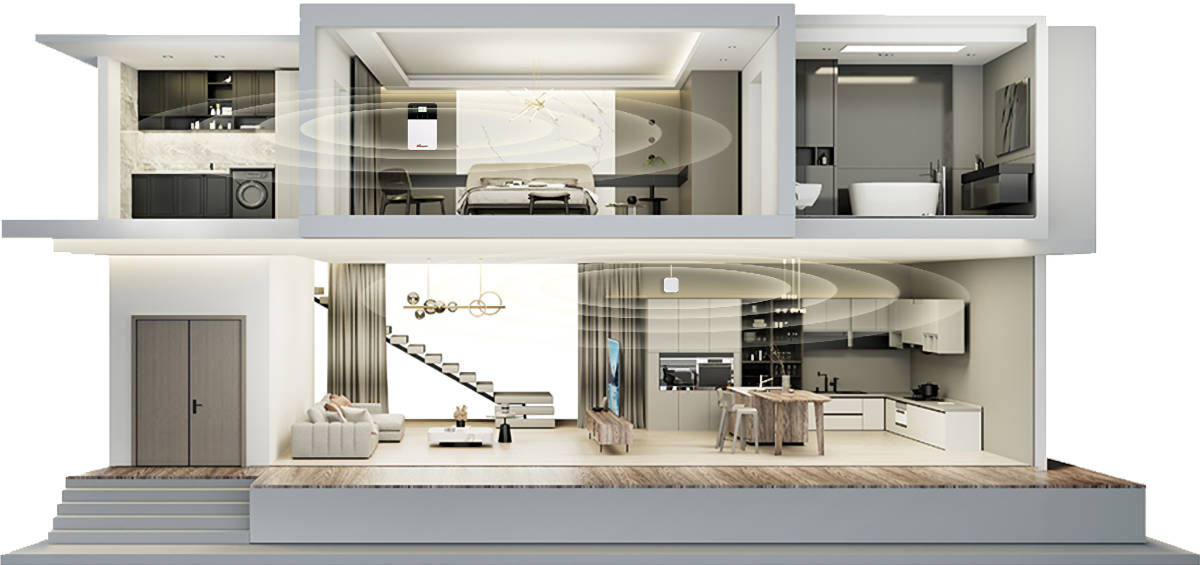

    Sample HiBoost 4K Plus Pro 2-antenna setup Sample HiBoost Cabin 4K Home Pro Max two-antenna setup. (Click to enlarge.)

    Do-it-yourself installation

    You can install the HiBoost 4K Pro cell signal booster yourself in one to two hours with common household tools. It does not require professional installation.

    See the Documentation section below to download the installation guide and user manual. Also check out our installation video for step-by-step instructions and helpful tips:

    Monitor your HiBoost 4K Pro booster from your smartphone

    HiBoost’s Signal Supervisor app for smartphones helps you set up and monitor your cell signal booster. The booster links to your iPhone or Android smartphone via a Bluetooth or WiFi connection. With Signal Supervisor, you can:

    • Register your booster via a QR Code or Bluetooth.
    • Monitor your signal booster’s status via Bluetooth.
    • Set up and receive remote alerts if your booster isn’t operating properly.
    • View your booster’s power settings, gain, and dBm output.
    • Manage multiple boosters.

    HiBoost’s Signal Supervisor app is available for Apple iOSexternal link icon and Androidexternal link icon devices.

    The HiBoost Signal Supervisor app for iPhone and Android smartphones for use with HiBoost cell phone signal boosters
    Download on the App Store Get it on Google Play

    Purchasing a HiBoost Cabin 4K Home Pro Max system

    The HiBoost Cabin 4K Home Pro Max system comes with the following components.

    All kits include:

    HighBoost 4K Plus cell signal booster F10GI-5S-BTW icon HiBoost 4K Pro cell signal booster w/built-in panel antenna F10GI-5S-BTW
    HiBoost 12V/3A AC/DC power supply GM50-120300-F icon 12V/3A AC/DC adapter GM50-120300-F
    Outdoor High-Gain Directional LPDA Antenna with N-Female Connector (50 Ohm) and U-Bolts icon Wideband high-gain LPDA antenna w/mounting hardware TS221101
    HiBoost Compact Indoor Panel Antenna E32040627007 icon HiBoost wideband indoor panel antenna TS260744H
    Top Signal TS-400 coax cable 50 feet TS340050 icon 50′ Top Signal TS-400 coax cable TS340050
    Top Signal TS-400 coax cable 30 feet TS340030 icon 30′ Top Signal TS-400 coax cable TS340030
    Top Signal Adjustable Building Antenna Mount TS430001 icon Adjustable building mount TS430001
    Top Signal 50-ohm lightning surge protector TS450001 icon Top Signal 50-ohm lightning surge protector TS450001
    HiBoost 4K Home Pro Max cell signal booster installation guide icon HiBoost 4K Home Pro Max installation guide
    HiBoost 4K Plus installation guide icon HiBoost 4K Pro installation guide
    HiBoost 4K Plus user manual icon HiBoost 4K Pro user manual

    The upgraded high-gain directional antenna kit also includes:

    How the HiBoost 4K Pro works

    The HiBoost 4K Pro receives the outside cell signal, amplifies it, and rebroadcasts it inside your home through a panel antenna in the wall-mounted amplifier and a second wall-mounted panel antenna connected to the amplifier by a coaxial cable. This allows you to stay connected in areas where cell service is poor or where your home’s building materials interfere with signals from the local cell tower.

    Works with all major cellular carriers

    The HiBoost 4K Pro works with all major wireless carriers, including Verizon, AT&T, T-Mobile, DISH Wireless, UScellular, GCI Alaska, and most others.

    It operates on common cellular frequencies.

    • 700 MHz (SMH) bands 12, 13, 17.
    • 850 MHz (Cellular 850) band 5.
    • 1700/2100 MHz (AWS) band 4.
    • 1900 MHz (PCS) bands 2, 25.
    Carrier logos for Verizon, AT&T, T-Mobile, UScellular, DISH Wireless, GCI Alaska
    T-Mobile customers please read about band 71 and cell signal boosters

    How much area will the HiBoost Cabin 4K Home Pro Max cover?

    With strong outside cell signal (−95 dBm RSRP or greater), the HiBoost 4K Pro booster can cover up to 6,000 square feet of indoor building space with 700 MHz signal. The size of the coverage area depends on many factors, including:

    • Outside cell signal strength received by the donor antenna.
    • How accurately you tune the outside directional antennas.
    • Inside building materials. (Cellular frequencies pass through wood framing and drywall more easily than through steel and concrete.)
    • Cellular frequencies used by the carrier and the device. (Lower-frequency LTE and 800 MHz signals travel farther than higher-frequency AWS and PCS signals.)

    Substandard or inadequate conditions in any of these factors will reduce your coverage area. With weak outside cell signal (−115 dBm RSRP), the HiBoost 4K Pro booster may cover 1,500 square feet of indoor space or less.

    Powerful Signal has years of experience designing and installing cellular amplification systems. Please call us at 435-634-6800 or contact us online, and we’ll be happy to calculate the coverage area this system will provide in your building and answer any other questions about this amplifier.

    FCC notice

    For information on federal rules governing the use of consumer cell signal boosters, please see our FCC notice page.

    Prop 65 notice

    Caution triangle icon Warning This product can expose you to chemicals, including nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govexternal link icon.

    Product Specifications

    Usage:
    Small home/medium-sized home/home office
    Strong outside signal (−95 dBm RSRP, 5 bars):
    Up to 6,000 ft² indoor coverage @ 700 MHz
    Fair outside signal (−105 dBm RSRP, 3 bars):
    Up to 3,500 ft² indoor coverage @ 700 MHz
    Weak outside signal (−115 dBm RSRP, 1 bar):
    Up to 1,500 ft² indoor coverage @ 700 MHz
    Outside antenna:
    High-gain directional LPDA
    Inside antenna:
    Directional panel (×2)
    Cable Type:
    400
    Connector Type:
    N
    Impedance:
    50 Ω
    Gain/Loss:
    +65 dB max
    Max Output Power (Uplink):
    24 dBm
    Max Output Power (Downlink):
    10 dBm
    Booster Case Material:
    Plastic
    Signal Readout:
    LCD display & smartphone app

    Warranty Information

    For warranty information on this product, please see our HiBoost warranty information page.
