HiBoost Home 4K LCD Cell Phone Signal Booster (50 Ohm) F10G-5S: Kit

HiBoost Home 4K LCD Cell Phone Signal Booster

  • Coverage for small homes, condos, and apartments
  • Covers up to 4,000 square feet
  • Supports up to 100 cell phone users simultaneously
  • Inside panel antenna
  • Outside directional antenna
  • 200 coax cable
  • 50-ohm system
  • Automatic or adjustable gain
  • Boosts voice, text & 4G/3G data
  • Works on Verizon, AT&T, T-Mobile, Sprint, & other networks
Outside Signal Strength
Coverage Area @ 800 MHz
Weak (−100 dBm, 1 bar)
Up to 500 ft²
Fair (−90 dBm, 2–3 bars)
Up to 2,500 ft²
Strong (−80 dBm, 4–5 bars)
Up to 4,000 ft²

$399.99
SKU: F10G-5S
Shipping:
Free Shipping
Powerful Signal has been in business over 10 years Powerful Signal is Wilson Electronics' most experienced partner Powerful Signal offers lifetime support on all systems it sells Powerful Signal offers nationwide installation

Product Description

Features of the HiBoost Home 4K LCD

  • Designed for small homes, condominiums, and apartments, as well as covering a few rooms of a large home.
  • Sturdy metal case.
  • Easy-to-read backlit LCD display, with uplink/downlink/power status on one screen and optional manual settings.
  • Boost signal for up to 100 simultaneous cellular devices.
  • Includes 200 coax cable.
  • Carrier agnostic: Works with all major U.S. and Canadian carriers.
  • Boosts 4G LTE and 3G service for voice, text, and data.

The HiBoost Home 4K LCD is designed for small residences that need improved cell signal reception in two to four rooms. The Home 4K LCD improves both voice and data to reduce dropped calls and missed emails and texts, keeping your family members and friends connected with a stronger cell signal.

This kit includes one inside panel antenna that sends amplified signal to the phones in your home.

Who is the HiBoost Home 4K LCD for?

  • Small homes or a few rooms in a large home, with typical cellular user and data loads.
  • Residences in remote locations with weak cell service.
  • Urban environments with building materials that block outside cell signal (steel, glass, concrete, plaster, etc.).
  • Basements and other below-ground rooms where cell reception is poor.

Purchasing a HiBoost Home 4K LCD system

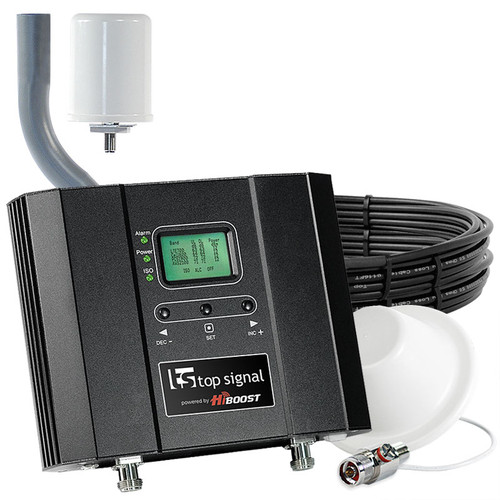

The HiBoost Home 4K LCD kit comes with the following components:

HighBoost Home 4K LCD cell signal booster F10G-5S-LCD icon HiBoost Home 4K LCD cell signal amplifier F10G‑5S‑LCD
HiBoost 12V/3A AC/DC power supply icon AC/DC adapter GM50‑120300‑F
HiBoost 4G/3G Outdoor LPDA Antenna with N-Female Connector icon Wideband outdoor LPDA antenna
HiBoost indoor panel antenna icon Wideband indoor panel antenna
HiBoost 200 coax cable icon 30' 200 coax cable (×2)
HiBoost Home 4K user manual icon HiBoost Home 4K user manual

How the HiBoost Home 4K LCD works

The HiBoost Home 4K LCD receives the outside cell signal, amplifies it, and rebroadcasts it inside your home through a wall-mounted panel antenna. This allows you to stay connected in areas where cell service is poor, or where your home’s construction materials interfere with signals from the local cell tower.

Works with all major cellular carriers

The HiBoost Home 4K LCD works with all major wireless carriers:

  • U.S. carriers, including Verizon, AT&T, T‑Mobile, Sprint, U.S. Cellular, and most others.
  • Canadian carriers, including Rogers, Bell Canada, Telus, Wind, and most others.

It operates on common 4G/3G cellular frequencies.

  • 700 MHz (SMH) bands 12, 13, 17.
  • 850 MHz (Cellular 850) band 5.
  • 1700/2100 MHz (AWS) band 4.
  • 1900 MHz (PCS) bands 2, 25.
Carrier logos for Verizon, AT&T, Sprint, T‑Mobile, U.S. Cellular

How much area will the HiBoost Home 4K LCD cover?

This system comes with one panel antenna that broadcasts in a horizontal wedge shape. With strong outside cell signal (−80 dBm or greater), you can typically cover 4,000 square feet of indoor building space with 800 MHz signal. The size of the coverage area depends on many factors, including:

  • Outside cell signal strength received by the donor antenna.
  • Inside building materials. (Cellular frequencies pass through wood framing and drywall more easily than through steel and concrete.)
  • Cellular frequencies used by the carrier and the device. (Lower-freqency LTE and 800 MHz signals travel farther than higher-frequency AWS and PCS signals.)

Substandard or inadequate conditions in any of these factors will reduce your coverage area.

Powerful Signal has over a decade of experience designing and installing cellular amplification systems. Please call us at 866‐912‐3444 or contact us online, and we’ll be happy to calculate the coverage area this system will provide in your building and answer any other questions about this amplifier.

FCC Notice

This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.

Please note: The four largest carriers (Verizon, AT&T, T‑Mobile, and Sprint) and more than 90 regional carriers have given blanket consent for use of all boosters that are certified to the 2013 FCC standards. Go to our Cell Phone Signal Booster Registration page and follow the links for your carrier. There are no fees to register your cell signal booster.

If you have any questions, please contact Powerful Signal.

Product Specifications

Usage:
Small homes, condominiums, apartments
−100 dBm (1 bar) outside signal:
Up to 500 ft² indoor coverage @ 800 MHz
−90 dBm (2–3 bars) outside signal:
Up to 2,500 ft² indoor coverage @ 800 MHz
−80 dBm (4–5 bars) outside signal:
Up to 4,000 ft² indoor coverage @ 800 MHz
Outside antenna:
Directional LPDA
Inside antenna:
Directional panel
Cable type:
200
Connector type:
N
Impedance:
50 Ω
Gain/loss:
+60 dB max
Max output power (uplink):
17–24 dBm
Max output power (downlink):
10 dBm
Booster case material:
Metal
Signal readout:
Backlit LCD display with adjustable uplink, downlink, & power by channel

Warranty Information

Signal booster (amplifier)

HiBoost signal boosters sold by Powerful Signal are protected by Powerful Signal’s 30-day money-back guarantee. If the signal booster does not perform according to the manufacturer’s specifications, contact Powerful Signal by phone (866‑912‑3444) or online to arrange a return.

(Signal boosters that have been mounted are not eligible for a 30-day money-back guarantee, but are protected by warranty.)

HiBoost signal boosters sold by Powerful Signal are further warranted for 3 years against defects in workmanship and/or materials. To resolve a warranty case, contact Powerful Signal by phone (866‑912‑3444) or online.

Powerful Signal shall, at its option, either repair or replace the signal booster. Powerful Signal will pay for delivery of the repaired or replaced product back to the original consumer if located within the continental U.S.

Neither the 30-day money-back guarantee nor the 3-year warranty apply to any signal booster determined by Powerful Signal to have been subjected to misuse, abuse, neglect, or mishandling that alters or damages its physical or electronic properties. Failure to use a surge-protected AC power strip with at least a 1000 Joule rating will void your warranty.

Components and accessories

Components and accessories are warranted for 90 days against defects in workmanship and/or materials. To resolve a warranty case, contact Powerful Signal by phone (866‑912‑3444) or online.

This warranty does not apply to any accessory or component determined by Powerful Signal to have been subjected to misuse, abuse, neglect, or mishandling that alters or damages its physical or electronic properties.

Returns

For our complete returns policy, please see our Shipping & Returns page.
