    HiBoost 4K Home Pro Max Cell Signal Booster

    This kit available only from Powerful Signal
    Bulk Pricing:
    Buy in bulk and save

    Tier Price Rates

    • Whole-house coverage for small to medium-size homes
    • Professional-grade 400-type coax cable
    • Optional upgraded high-gain outside antenna for better reception in weak-signal areas
    • 2 inside panel antennas distribute signal where you need it most in your home
    • LCD display with automatic & manually-adjustable gain
    • Includes smartphone app & Bluetooth administration
    • Boosts voice, text & 5G/4G data for all major carriers
    Outside Signal Strength
    Coverage @ 700 MHz LTE
    5 Bars
    Up to 6,000 ft²
    3 Bars
    Up to 3,500 ft²
    1 Bar
    Up to 1,500 ft²

    Free lifetime support
    $499.99
    SKU: F10GI-5S-BTW
    Shipping:
    Calculated at Checkout

    Product Description

    Cell phone signal booster installation tips banner
    Cell phone signal booster installation tips mobile banner

    Features of the HiBoost 4K Home Pro Max cell signal booster

    • With a maximum uplink gain of 65 dB, the HiBoost 4K Pro cellular booster is designed for small to medium-sized homes, condominiums, and apartments, as well as covering a few rooms of a large home. question mark inside a circle
    • Two indoor antennas allow you to distribute signal more evenly in long-and-narrow or L-shaped houses and homes with two floors. The first panel antenna is inside the amplifier; the second panel antenna is a separate component connected to the amplifier by 30 feet of coax cable.
    • This kit, available only from Powerful Signal, features your choice of outside antenna: question mark inside a circle
    • Option #1: The Top Signal omnidirectional antenna receives signal from cell towers in all directions with 2–4 dBi gain.
    • Option #2: The HiBoost directional LPDA antenna receives signal from a tower or towers in a specific direction with 9 dBi of gain.
    • Upgrade option: The Top Signal 44″ directional LPDA antenna has 11.2–13.1 dBi of gain, up to 2​1⁄2 times the gain of the HiBoost antenna. A higher-gain antenna provides more signal to the booster, increasing indoor coverage area and providing faster data speeds.
    • The amplifier has an easy-to-read backlit LCD display, with uplink/downlink/power status on one screen and optional manual settings.
    • Monitor and troubleshoot your booster with HiBoost’s Signal Supervisor app for smartphones.
    • Boosts signal for up to 100 simultaneous cellular devices.
    • Includes two low-loss TS-400 coax cables.
    • Carrier agnostic: Works with all major U.S. and Canadian carriers.
    • Improves 5G and 4G/LTE service for voice, text, and data. question mark inside a circle

    The HiBoost 4K Home Pro Max is designed for small residences that need improved cell signal reception in up to four or five rooms. It improves both voice and data to reduce dropped calls and missed emails and texts, keeping your family members and friends connected with a stronger cell signal.

    This kit includes two inside panel antennas that send amplified signal to the phones in your home.

    HiBoost 4K Plus display and controls The HiBoost 4K Pro amplifier features a backlit LCD display and controls for gain and power.

    Who is the HiBoost 4K Home Pro Max for?

    • Small to medium-sized homes or a few rooms in a large home, with typical cellular user and data loads.
    • Apartments, duplexes, and condominiums.
    • Residences in remote locations with weak cell service.
    • Urban environments with building materials that block outside cell signal (steel, glass, concrete, plaster, etc.).
    • Basements and other below-ground rooms where cell reception is poor.
    Sample HiBoost 4K Plus Pro 2-antenna setup Sample HiBoost 4K Home Pro Max two-antenna setup. (Click to enlarge.)

    Do-it-yourself installation

    You can install the HiBoost 4K Pro cell signal booster yourself in one to two hours with common household tools. It does not require professional installation.

    See the Documentation section below to download the installation guide and user manual. Also check out our installation video for step-by-step instructions and helpful tips:

    Monitor your HiBoost 4K Pro booster from your smartphone

    HiBoost’s Signal Supervisor app for smartphones helps you set up and monitor your cell signal booster. The booster links to your iPhone or Android smartphone via a Bluetooth or WiFi connection. With Signal Supervisor, you can:

    • Register your booster via a QR Code or Bluetooth.
    • Monitor your signal booster’s status via Bluetooth.
    • Set up and receive remote alerts if your booster isn’t operating properly.
    • View your booster’s power settings, gain, and dBm output.
    • Manage multiple boosters.

    HiBoost’s Signal Supervisor app is available for Apple iOSexternal link icon and Androidexternal link icon devices.

    The HiBoost Signal Supervisor app for iPhone and Android smartphones for use with HiBoost cell phone signal boosters
    Download on the App Store Get it on Google Play

    Purchasing a HiBoost 4K Home Pro Max system

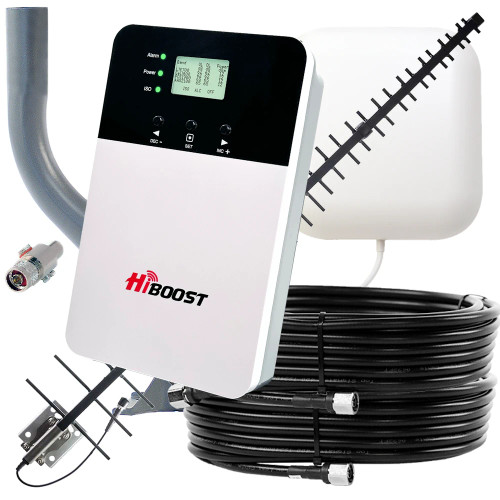

    The HiBoost 4K Home Pro Max system comes with the following components.

    All kits include:

    HighBoost 4K Plus cell signal booster F10GI-5S-BTW icon HiBoost 4K Pro cell signal booster w/built-in panel antenna F10GI-5S-BTW
    HiBoost 12V/3A AC/DC power supply GM50-120300-F icon 12V/3A AC/DC adapter GM50-120300-F
    HiBoost Compact Indoor Panel Antenna E32040627007 icon HiBoost wideband indoor panel antenna TS260744H
    HiBoost 4K Home Pro Max cell signal booster installation guide icon HiBoost 4K Home Pro Max installation guide
    HiBoost 4K Plus installation guide icon HiBoost 4K Pro installation guide
    HiBoost 4K Plus user manual icon HiBoost 4K Pro user manual

    The omnidirectional antenna kit also includes:

    Top Signal omnidirectional building antenna TS210471 icon Top Signal wideband outdoor omni antenna TS210471
    Top Signal TS-400 coax cable 30 feet TS340030 icon 30′ Top Signal TS-400 coax cable TS340030 (×2)
    Top Signal Adjustable Building Antenna Mount TS430001 icon Optional add-on
    Adjustable building mount TS430001
    Top Signal 50-ohm lightning surge protector TS450001 icon Optional add-on
    Top Signal 50-ohm lightning surge protector TS450001

    The directional antenna kit also includes:

    HiBoost 5G/4G Outdoor Pole-Mount Directional LPDA Antenna with N-Female Connector (50 Ohm) TS220971 icon HiBoost wideband outdoor LPDA antenna TS220941H
    Top Signal TS-400 coax cable 30 feet TS340030 icon 30′ Top Signal TS-400 coax cable TS340030 (×2)
    Top Signal Adjustable Building Antenna Mount TS430001 icon Optional add-on
    Adjustable building mount TS430001
    Top Signal 50-ohm lightning surge protector TS450001 icon Optional add-on
    Top Signal 50-ohm lightning surge protector TS450001

    The upgraded high-gain directional antenna kit also includes:

    Outdoor High-Gain Directional LPDA Antenna with N-Female Connector (50 Ohm) and U-Bolts icon Wideband high-gain LPDA antenna w/mounting hardware TS221101
    Top Signal TS-400 coax cable 50 feet TS340050 icon 50′ Top Signal TS-400 coax cable TS340050
    Top Signal TS-400 coax cable 30 feet TS340030 icon 30′ Top Signal TS-400 coax cable TS340030
    Top Signal Adjustable Building Antenna Mount TS430001 icon Adjustable building mount TS430001
    Top Signal 50-ohm lightning surge protector TS450001 icon Top Signal 50-ohm lightning surge protector TS450001

    How the HiBoost 4K Pro works

    The HiBoost 4K Pro receives the outside cell signal, amplifies it, and rebroadcasts it inside your home through a panel antenna in the wall-mounted amplifier and a second wall-mounted panel antenna connected to the amplifier by a coaxial cable. This allows you to stay connected in areas where cell service is poor or where your home’s building materials interfere with signals from the local cell tower.

    Works with all major cellular carriers

    The HiBoost 4K Pro works with all major wireless carriers, including Verizon, AT&T, T-Mobile, DISH Wireless, UScellular, GCI Alaska, and most others.

    It operates on common cellular frequencies.

    • 700 MHz (SMH) bands 12, 13, 17.
    • 850 MHz (Cellular 850) band 5.
    • 1700/2100 MHz (AWS) band 4.
    • 1900 MHz (PCS) bands 2, 25.
    Carrier logos for Verizon, AT&T, T-Mobile, UScellular, DISH Wireless, GCI Alaska
    T-Mobile customers please read about band 71 and cell signal boosters

    Which outside antenna should I choose?

    This system gives you the choice of an outdoor directional or omnidirectional antenna. Here are some general guidelines for choosing the right antenna.

    • The cylindrical Top Signal omnidirectional antenna works well in many situations. An omni antenna receives and send signal for all carrier towers in all directions, and it’s also easier to set up.
    • The wedge-shaped HiBoost directional antenna (LPDA) has more gain and works best if your home has a reasonably clear line of sight to a cell tower that provides service for a specific cellular network. The directional antenna is also an excellent choice if another carrier has a powerful cell tower nearby, but you need to bypass that tower in favor of a more distant one operated by your preferred carrier. A directional antenna needs to be tuned, so its setup is more involved than setting up an omni antenna.

    If you’re still not certain which antenna will work best for you, see our Knowledge Base article or call us at 435-634-6800. Our technical support representatives will be happy to discuss your specific requirements and give you a recommendation based on years of professional experience.

    How much area will the HiBoost 4K Home Pro Max cover?

    With strong outside cell signal (−95 dBm RSRP or greater), the HiBoost 4K Pro booster can cover up to 6,000 square feet of indoor building space with 700 MHz signal. The size of the coverage area depends on many factors, including:

    • Outside cell signal strength received by the donor antenna.
    • The type of outdoor antenna you choose (omni, directional, or high-gain directional) and how well you tune the directional antennas.
    • Inside building materials. (Cellular frequencies pass through wood framing and drywall more easily than through steel and concrete.)
    • Cellular frequencies used by the carrier and the device. (Lower-frequency LTE and 800 MHz signals travel farther than higher-frequency AWS and PCS signals.)

    Substandard or inadequate conditions in any of these factors will reduce your coverage area. With weak outside cell signal (−115 dBm RSRP), the HiBoost 4K Pro booster may cover 1,500 square feet of indoor space or less.

    Powerful Signal has years of experience designing and installing cellular amplification systems. Please call us at 435-634-6800 or contact us online, and we’ll be happy to calculate the coverage area this system will provide in your building and answer any other questions about this amplifier.

    FCC notice

    For information on federal rules governing the use of consumer cell signal boosters, please see our FCC notice page.

    Prop 65 notice

    Caution triangle icon Warning This product can expose you to chemicals, including nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govexternal link icon.

    Product Specifications

    Usage:
    Small home/medium-sized home/home office
    Strong outside signal (−95 dBm RSRP, 5 bars):
    Up to 6,000 ft² indoor coverage @ 700 MHz
    Fair outside signal (−105 dBm RSRP, 3 bars):
    Up to 3,500 ft² indoor coverage @ 700 MHz
    Weak outside signal (−115 dBm RSRP, 1 bar):
    Up to 1,500 ft² indoor coverage @ 700 MHz
    Outside antenna:
    Omnidirectional cylinder/directional LPDA/high-gain directional LPDA
    Inside antenna:
    Directional panel (×2)
    Cable Type:
    400
    Connector Type:
    N
    Impedance:
    50 Ω
    Gain/Loss:
    +65 dB max
    Max Output Power (Uplink):
    24 dBm
    Max Output Power (Downlink):
    10 dBm
    Booster Case Material:
    Plastic
    Signal Readout:
    LCD display & smartphone app

    Warranty Information

    For warranty information on this product, please see our HiBoost warranty information page.
