Top Signal 2X HiBoost 10K Smart Link Home Cell Signal Booster 2 Antennas TS543122: Kit

Top Signal 2X HiBoost 10K Smart Link Home Cell Signal Booster 2 Antennas TS543122

Two zones of coverage in your home | FREE shipping
Bulk Pricing:
Buy in bulk and save
  • Two-zone coverage for large homes
  • Best-in-class antennas, coax cable & components
  • Rooftop antenna mount & surge protector, plus your choice of antennas
  • Boosts voice, text & 4G/3G data
  • Works on Verizon, AT&T, T‑Mobile, Sprint & other networks
  • Includes Smart Link Bluetooth monitoring capability
Outside Signal Strength
Coverage @ 700 MHz LTE
Strong (−80 dBm, 4–5 bars)
Up to 25,000 ft²
Fair (−90 dBm, 2–3 bars)
Up to 3,800 ft²
Weak (−100 dBm, 1 bar)
Up to 750 ft²

Free lifetime support
$769.99 $639.99 Sale
SKU: TS543122
Shipping:
Calculated at Checkout

Product Description

Features of the Top Signal 2X HiBoost 10K Smart Link 2‑antenna system

  • Provides two zones of improved cellular coverage for large homes.
  • Upgraded commercial-grade 400 coax cable delivers double the square foot coverage of the regular Top Signal HiBoost 10K Smart Link system.
  • Provides improved signal for large homes and small offices.
  • Sturdy metal case.
  • Easy-to-read backlit LCD display, with uplink/downlink/power status on one screen and optional manual settings.
  • Monitor and troubleshoot your booster with HiBoost’s Signal Supervisor app for smartphones.
  • Boosts signal for up to 150 simultaneous cellular devices.
  • Choice of outside and inside antennas at no additional charge. (Get help picking the right antennas.)
  • Includes commercial-grade antennas and components.
  • Carrier agnostic: Works with all major U.S. and Canadian carriers.
  • Improves 4G LTE and 3G service for voice, text, and data.

The Top Signal 2X HiBoost 10K Smart Link is a two-antenna system designed for large homes that need improved cell signal reception throughout the house. The 2X 10K Smart Link improves both voice and data to reduce dropped calls and missed emails and texts, keeping your family members, friends, and guests connected with a stronger cell signal.

This kit includes two inside dome or panel antennas that sends amplified signal to the phones in your home.

HiBoost Home 10K Smart Link LCD display and controls The Top Signal 2X HiBoost 10K Smart Link features a backlit LCD display and optional manual controls for gain and power.

This system doubles your coverage!

The Top Signal 2X HiBoost 10K Smart Link 2‑antenna system system uses the same booster as the standard kit, but includes ⅜‑inch 400 coax cable with half the signal loss of the standard 240 coax. This 2X system will double the coverage area provided by your inside dome antenna.*

The 2X system also includes an upgraded outdoor omni antenna that provides better signal gain to and from the cell tower.

*Double coverage provided in areas with strong outside cell signal.

Double the coverage area The low-loss 400 coax cable in this system doubles your amplified cell signal coverage area.

Who is the Top Signal 2X HiBoost 10K Smart Link 2‑antenna system for?

  • Long, rectangular homes, like ranch-style houses.
  • Large homes that have poor signal in two specific areas, like a basement and a back bedroom.
  • Homes in locations with moderate to strong outside cell signal. (Locations with weak outside cell signal should consider the Top Signal 2X HiBoost 10K Smart Link one‑antenna system.)
  • Homes, apartments, and condominiums in urban areas with building materials that block outside cell signal (steel, glass, concrete, plaster, etc.).
  • Basements and other below-ground rooms where cell reception is poor.
Sample Top Signal 2X HiBoost 10K Smart Link 2-antenna setup Sample Top Signal 2X HiBoost 10K Smart Link two‑antenna setup

Monitor your 10K Smart Link system from your smartphone

HiBoost’s Signal Supervisor app for smartphones helps you set up and monitor your cell signal booster. The booster links to your iPhone or Android via a Bluetooth connection. With Signal Supervisor, you can:

  • Register your booster via a QR Code or Bluetooth.
  • Monitor your signal booster’s status via Bluetooth.
  • Set up and receive remote alerts if your booster isn’t operating properly.
  • Adjust your booster’s power settings, decibel gain, and dBm output.
  • Manage multiple boosters.
  • Update your booster’s on-board software.

HiBoost’s Signal Supervisor app is available for Apple iOS and Android devices.

The HiBoost Signal Supervisor app for iPhone and Android smartphones for use with HiBoost Smart Link cell phone signal boosters

Purchasing a Top Signal 2X HiBoost 10K Smart Link 2‑antenna system system

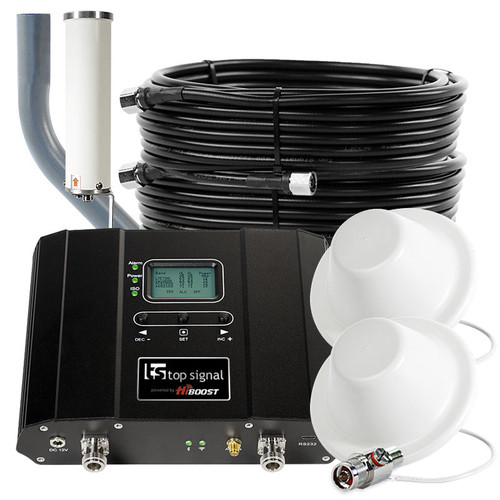

The Top Signal 2X HiBoost 10K Smart Link 2‑antenna system kit comes with the following components:

HighBoost Home 10K Smart Link cell signal booster F15G-5S-BTW icon Top Signal HiBoost 10K Smart Link cell signal amplifier F15G‑5S‑BTW
HiBoost 12V/3A AC/DC power supply icon AC/DC adapter GM50‑120300‑F
Top Signal omnidirectional building antenna TS210471 icon Choice of… Wideband outdoor omni antenna TS210471
Top Signal 4G/3G Outdoor Pole-Mount Directional LPDA Antenna with N-Female Connector (50 Ohm) TS220971 icon …or Wideband outdoor LPDA antenna TS220971
Top Signal dome antenna TS250374 icon Choice of… Wideband indoor dome antenna TS250374 (×2)
Top Signal panel antenna TS260782 icon …or Wideband indoor panel antenna TS260782 (×2)
Top Signal 400 coax cable 50 feet TS340050 icon 50′ 400 coax cable TS340050 (×2)
Top Signal 400 coax cable 30 feet TS340030 icon 30′ 400 coax cable TS340030
Top Signal 2-way splitter TS412001 icon 2-way splitter TS412001
Top Signal 400 coax cable 2 feet TS340002 icon 2′ 400 coax jumper cable TS340002
Top Signal adjustable rooftop antenna mount TS430001 icon Adjustable rooftop antenna mount TS430001
Top Signal 50-ohm lightning surge protector TS450001 icon 50‑ohm lightning surge protector TS450001
HiBoost Home Smart Link Series user manual icon HiBoost Home Smart Link Series user manual

How the Top Signal 2X HiBoost 10K Smart Link 2‑antenna system works

The Top Signal 2X HiBoost 10K Smart Link receives the outside cell signal, amplifies it, and rebroadcasts it inside your home through two ceiling-mounted dome antennas or two wall-mounted panel antennas. This allows you to stay connected in areas where cell service is poor or where your home’s construction materials interfere with signals from the local cell tower.

Works with all major cellular carriers

The Top Signal HiBoost 10K Smart Link works with all major wireless carriers:

  • U.S. carriers, including Verizon, AT&T, T‑Mobile, Sprint, U.S. Cellular, and most others.
  • Canadian carriers, including Rogers, Bell Canada, Telus, Wind, and most others.

It operates on common 4G/3G cellular frequencies.

  • 700 MHz (SMH) bands 12, 13, 17.
  • 850 MHz (Cellular 850) band 5.
  • 1700/2100 MHz (AWS) band 4.
  • 1900 MHz (PCS) bands 2, 25.
Carrier logos for Verizon, AT&T, Sprint, T‑Mobile, U.S. Cellular

Which antennas should I choose?

This kit gives you the choice of an outdoor directional or omnidirectional antenna and two indoor dome or panel antennas. Here are some general guidelines for selecting the right antennas.

Outside (donor) antenna:

  • A cylindrical omnidirectional antenna works best in most circumstances. The omni gathers signal from all carrier towers in all directions.
  • A wedge-shaped LPDA directional antenna works best if your building is in a remote location with one single, distant tower providing cell service for your area. The LPDA is also an excellent choice if there’s a powerful cell tower nearby but you need to bypass that tower in favor of a more distant one operated by your preferred carrier.

Inside (broadcast) antenna:

  • A ceiling-mounted dome antenna works best in most circumstances. It broadcasts downward in a spherical shape (similar to the shape of a light bulb) and usually gives significantly more coverage than a panel antenna. A dome is also less noticeable than a wall-mounted panel. The dome antenna does, however, require access above the ceiling to pull cable and attach it to the antenna.
  • A wall-mounted panel antenna works best if you don’t have access above your ceiling or if you need to mount the broadcast antenna on the outside perimeter of the area you want to cover. The panel antenna broadcasts forward in a wedge shape (similar to beam from a flashlight).

If you’re still not certain which antennas will work best for you, please call us at 866‑912‑3444. Our technical support representatives will be happy to discuss your specific requirements and give you a recommendation based on years of professional experience.

How much area will the Top Signal 2X HiBoost 10K Smart Link 2‑antenna system cover?

This system comes with two dome antennas that broadcast improved cellular signal in a spherical pattern or two panel antennas that broadcast in a horizontal cone shape. With strong outside cell signal (−80 dBm or greater), you can typically cover 25,000 square feet of indoor building space with 800 MHz signal. The size of the coverage area depends on many factors, including:

  • Outside cell signal strength received by the donor antenna.
  • Which indoor broadcast antenna your choose. (A dome antenna typically provides better signal coverage than a panel antenna.)
  • Inside building materials. (Cellular frequencies pass through wood framing and drywall more easily than through steel and concrete.)
  • Cellular frequencies used by the carrier and the device. (Lower-frequency LTE and 800 MHz signals travel farther than higher-frequency AWS and PCS signals.)

Substandard or inadequate conditions in any of these factors will reduce your coverage area.

Powerful Signal has over a decade of experience designing and installing cellular amplification systems. Please call us at 866‐912‐3444 or contact us online and we’ll be happy to calculate the coverage area this system will provide in your building and answer any other questions about this amplifier.

FCC Notice

For information on federal rules governing the use of consumer cell signal boosters, please see our FCC notice page.

Product Specifications

Usage:
Large home
−80 dBm (4–5 bars) outside signal:
Up to 25,000 ft² indoor coverage @ 700 MHz
−90 dBm (2–3 bars) outside signal:
Up to 3,800 ft² indoor coverage @ 700 MHz
−100 dBm (1 bar) outside signal:
Up to 750 ft² indoor coverage @ 700 MHz
Outside antenna:
Omnidirectional cylinder or directional LPDA
Inside antenna:
Omnidirectional dome or directional panel
Cable type:
400
Connector type:
N
Impedance:
50 Ω
Gain/loss:
+65 dB max
Max output power (uplink):
24 dBm
Max output power (downlink):
12 dBm
Booster case material:
Metal
Signal readout:
Backlit LCD display with adjustable uplink, downlink & power by channel

Warranty Information

For warranty information on this product, please see our Top Signal warranty information page.
