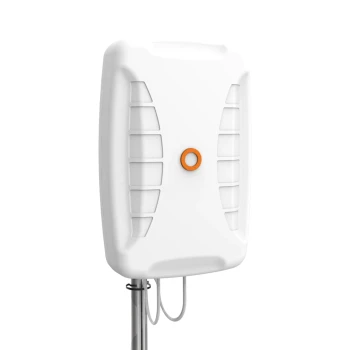

Poynting XPOL-24 4×4 MIMO 5G/LTE Directional Antenna for WiFi Routers & Hotspots 617–4200 MHz 16.4 Feet HDF195 Coax | XPOL-24-V1-01 | TS221114

Poynting XPOL-24 4×4 MIMO 5G/LTE Directional Antenna for WiFi Routers & Hotspots 617–4200 MHz 16.4 Feet HDF195 Coax

For cellular routers, modems, and hotspots
Bulk Pricing:
Buy in bulk and save
  • For use with cellular–WiFi routers with 4 × cellular ports with 2 × cellular ports
  • Wideband X-polarized 4×4 MIMO outdoor panel antenna
  • 8.5–11 dBi gain over 617–4200 MHz 5G & 4G frequencies
  • 2 × twin 16.4″ HDF195 coax cables with 4 × SMA‑male connectors; optional add‑on adapters for TS9 & U.fl ports
  • Mounting bracket & hardware included; attaches to a wall or a 1¼″–2″ pole (optional add‑on)

Free lifetime support
$399.99
SKU: TS221114
Shipping:
Calculated at Checkout

Product Description

Connects directly to a cellular–WiFi router, hotspot, or modem. Does not connect to a cell signal booster.

Features of the Poynting XPOL-24 4×4 MIMO antenna

  • 17.5″ × 11.4″ × 4.33″ (44.4 × 29.0 × 11.0 cm) directional outdoor building antenna.
  • Connects directly to 4 cellular ports on a cellular–WiFi router, modem, or hotspot with 2 × twin 16.4′ HDF195 coax cables and 4 SMA‑male connectors. TS9 and U.fl/MHF adapters are available as an optional add‑on.
  • Enclosure contains four cross-polarized antennas for superior signal strength and quality. Poynting’s patent-pending radiator configuration provides:
  • 8.5 dBi gain on 617–960 MHz 5G, 4G LTE, and 3G frequencies.
  • 8.5 dBi gain on 1710‑2700 MHz 5G, 4G LTE, 3G, and WiFi frequencies.
  • 11 dBi gain on 3400–4200 MHz 5G frequencies.
  • Enclosure is IP 65-ratedexternal link icon for protection against water and dust and ASTM B117external link icon-tested for resistance to corrosion due to salt spray.
  • Mounts upright on a wall or to a pole 1.5″–2.0″ in diameter. (Mounting bracket and hardware included; pole available as an optional add‑on.)
  • 50‑ohm impedance.
  • 2‑year warranty.

What’s a MIMO antenna?

A MIMO (multiple-input, multiple-output) antenna sends and receives signal through two or more simultaneous data streams, providing better signal strength and quality than single‑input, single‑output (SISO) antennas.

An LTE/5G 4×4 MIMO antenna may be the right solution for you if:

  • You need to improve signal reception on a router, hotspot, or modem that converts cellular signal to WiFi.
  • Your router or other device has two SMA, TS9, or U.fl/MHF ports.
  • The outdoor signal at your location is fair or moderate.
  • You need faster download speeds for streaming videos and downloading files.
  • You need improved signal for cellular frequencies that aren’t amplified by cell signal boosters (like band 71 and 5G bands between 2300 and 4200 MHz).

For needs other than these, a cell signal booster may be a better option. If you have any questions about which option is right for you, please feel free to contact Powerful Signal—we’ll be happy to help you!

Poynting XPOL-24 4×4 MIMO antenna contents

Poynting 4x4 MIMO Outdoor Panel Antenna with Twin 16.4-foot HDF195 Coax SMA-Male XPOL-24-V1-01 TS221114 icon Panel antenna w/4 × 16.4′ HDF195 coax cables & SMA‑male connectors A-XPOL-0024
Poynting BRKT-062 Mounting Bracket for XPOL-24 4x4 MIMO Outdoor Panel Antenna icon Antenna mounting bracket & hardware BRKT-062
Poynting 4x4 MIMO Outdoor Panel Antenna User Guide icon Poynting XPOL-24 user guide
Top Signal 38-Inch Adjustable Building Antenna Mount TS430002 icon Optional add‑on
38″ adjustable building mount w/lag screws TS430002

Optional add‑on router connection set:

Top Signal TS451040 SMA-Female to TS9-Male Connector icon SMA‑female to TS9‑male adapter TS451040 (×4)
Top Signal TS392006 SMA-Female to U.fl/MHF 6-Inch Jumper Cable icon 6″ SMA‑female to U.fl/MHF jumper cable TS392006 (×4)

Product Specifications

Usage:
Office/residential
Antenna Type:
Outside directional
Antenna Size:
17.5 × 11.4 × 4.33 in. (444 × 290 × 110 mm)
Polarization:
Vertical
Mount Type:
Bracket
Mount Spec:
Attaches to walls or to 1.5–2.0″-diameter poles
Connector Type:
SMA-male w/optional adapters for TS9 & U.fl/MHF
Cable Type:
HDF195
Cable Length:
16.4 ft. (5 m)
Impedance:
50 Ω
Gain 617–960 MHz:
+8.5 dBi
Gain 1710–2700 MHz:
+8.5 dBi
Gain 3400–4200 MHz:
+11.0 dBi

Warranty Information

For warranty information on this product, please see our Poynting warranty information page.
