WilsonPro 70 PLUS Refurbished Cell Signal Booster Bonus Dome Antenna Kit (463127R-A)

WilsonPro 70 PLUS Cell Signal Booster Bonus Dome Antenna Kit 463127R Refurbished

Discontinued
Bulk Pricing:: Buy in bulk and save

BONUS dome antenna—use panel or dome
Rooftop antenna mount included
Supports a larger number of simultaneous users
Graphical signal meter
Commercial-grade components
Boosts both voice & 4G data
Works with all major cellular carriers

Outside Signal Strength

Coverage @ 700 MHz LTE

5 Bars

Up to 20,000 ft²

3 Bars

Up to 12,000 ft²

1 Bar

Up to 2,500 ft²

WilsonPro (Discontinued)

Discontinued

Free lifetime support

SKU: 463127R-A

Description
More Information
Specifications
Warranty Information
Q&A

Product Description

This system has been discontinued by the manufacturer. Please see our line of weBoost Office 100 boosters for small offices.

Features of the WilsonPro 70 PLUS

Best-in-class coverage area.
Carrier agnostic: Works with all major U.S. cellular carriers and networks.
Boosts 4G LTE and 3G service for voice, text, and data.
Graphical uplink and downlink power meter.
Boosts cell signal in small offices for multiple users.
Commercial-grade antennas and coax cables.
Includes two inside broadcast antennas: a panel antenna and a bonus dome antenna.

The WilsonPro 70 PLUS is designed for small offices or building areas that need improved cell signal reception and have high user demands. The Pro 70 PLUS improves both voice and data to reduce dropped calls and missed emails and texts, keeping your business and employees connected with a stronger cell signal.

This kit includes your choice of a wall-mounted panel antenna or a ceiling-mounted dome antenna to send amplified signal to the phones in your office. (Get help choosing the right antenna.)

What are the differences between the WilsonPro 1100 and WilsonPro 70 Plus?

What are the differences between this system and the WilsonPro 1100? Click here to find out!

Who is the WilsonPro 70 PLUS for?

Those who have heavy cellular user and data loads.
Those who frequently experience dropped calls, undelivered texts, or slow 4G data.
Small offices in remote locations with weak cell service.
Small offices in urban locations with building materials that block outside cell signal (steel, glass, concrete, plaster, etc.).
Small offices below ground level, and other places where cell reception is poor.

What is a refurbished WilsonPro system?

WilsonPro refurbished cell signal booster systems were purchased by customers who returned them to the manufacturer. They may have been used briefly or may not have been used at all.

The manufacturer has inspected and tested each cell signal booster to ensure that it’s in good working order. Any damaged or non-working components have been replaced with new, working ones. The booster or its components may have cosmetic blemishes from a previous installation.

WilsonPro refurbished units are backed by the manufacturer’s 90-day money-back guarantee and are warranted for one year against defects in workmanship and/or materials.

Have more questions about refurbished boosters?
Click here to read our Knowledge Base article
“What is a refurbished cell phone signal booster?”

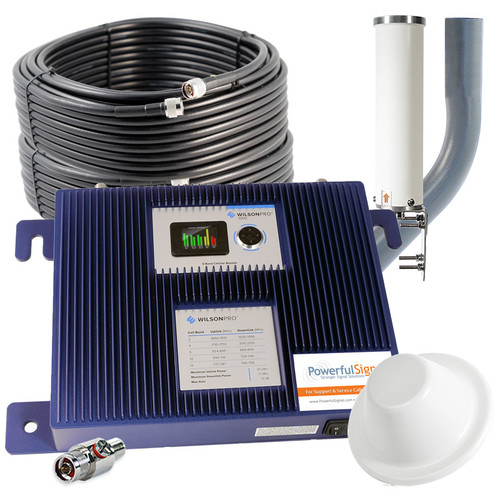

WilsonPro 70 PLUS kit contents

This is a complete kit, with everything you need to start getting the best signal in your office:

WilsonPro 70 PLUS refurbished cell signal amplifier

AC wall outlet power supply

Wideband outdoor directional antenna

Wideband indoor panel antenna

BONUS
Wideband indoor dome antenna

75′ 400 coax cable

60′ 400 coax cable

BONUS
Adjustable rooftop antenna mount

50‑ohm lightning surge protector

WilsonPro 70 PLUS install guide

Optional plenum air coax cable upgrade

The WilsonPro 70 PLUS system includes 400-type coax cable to connect the amplifier to the inside antennas. If your building requires fire-rated cable in plenum spaces, please ask us about upgrading to ½‑inch plenum air coax. Plenum cable fully meets state and federal building codes.

Plenum cable also has nearly half the signal loss per foot of cable compared to 400-type coax cable, delivering stronger signal from the WilsonPro amplifier to your phones and other cellular devices.

(Plenum air cable is available at additional cost. Call Powerful Signal at 866-912-3444 for details.)

400-type coax cable and plenum air coax cable terminated with N-male connectors

This system uses 400 coax (left), but you can upgrade to fire-rated plenum air coax cable (right) for building-code compliance and better performance.

How the WilsonPro 70 PLUS works

Using Wilson Electronics’ patented SmarTech III® technology, the WilsonPro 70 PLUS receives the outside cell signal, amplifies it, and rebroadcasts it inside your office through a ceiling-mounted dome antenna. This allows you to stay connected in areas where cell service is poor or where your office’s building materials interfere with signals from the local cell tower.

Works with all major cellular carriers

The WilsonPro 70 PLUS works with all major wireless carriers, including Verizon, AT&T, T‑Mobile, Sprint, U.S. Cellular, and most others.

It operates on common 4G/3G cellular frequencies.

700 MHz (SMH) bands 12, 13, 17.
850 MHz (Cellular 850) band 5.
1700/2100 MHz (AWS) band 4.
1900 MHz (PCS) bands 2, 25.

Which antennas should I choose?

This kit gives you the choice of an indoor panel antenna or dome antenna. Here are some general guidelines for choosing the right antenna for your use:

A ceiling-mounted dome antenna works best in most circumstances. It broadcasts downward in a spherical shape (similar to the shape of a light bulb) and usually gives more broad, even coverage than a panel antenna. A dome is also less noticeable than a wall-mounted panel. The dome antenna does, however, require access above the ceiling to pull cable and attach it to the antenna.
A wall-mounted panel antenna works best if you don’t have access above your ceiling or if you need to mount the broadcast antenna on the outside perimeter of the area you want to cover. The panel antenna broadcasts forward in a wedge shape (similar to beam from a flashlight).

If you’re still not certain which antenna will work best for you, please call us at 866‑912‑3444. Our technical support representatives will be happy to discuss your specific requirements and give you a recommendation based on years of professional experience.

How much area will the WilsonPro 70 PLUS cover?

This system comes with a panel antenna and a dome antenna. The area of improved cellular coverage from these antennas depends on many factors, including:

Outside cell signal strength received by the donor antenna.
Inside building materials. (Cellular frequencies pass through wood framing and drywall more easily than through steel and concrete.)
Cellular frequencies used by the carrier. (Lower-frequency LTE and 800 MHz signals travel farther than higher-frequency AWS and PCS signals.)
The type of antenna you install. (As described above, a dome antenna will usually provide more total coverage than a panel antenna.)

In general, the stronger the outside cell signal, the greater the interior broadcast distance.

Powerful Signal has over a decade of experience designing and installing cellular amplification systems. Please call us at 866‐912‐3444 or contact us online, and we’ll be happy to calculate the coverage area this system will provide in your building and answer any other questions about this amplifier.

Some online retailers claim that a one-antenna WilsonPro commercial system will provide 50,000 square feet of coverage. That figure is unrealistic under typical conditions, and Powerful Signal warns consumers against purchasing WilsonPro systems from retailers who make such exaggerated claims.

Documentation

WilsonPro 70 PLUS install guide (PDF)

WilsonPro 70 PLUS spec sheet (PDF)

Wilson Electronics 314411 antenna spec sheet (PDF)

Wilson Electronics 314411 antenna spec sheet (PDF)

What’s my actual cell signal strength?

FCC notice

For information on federal rules governing the use of consumer cell signal boosters, please see our FCC notice page.

Prop 65 notice

Caution triangle icon Warning This product can expose you to chemicals, including nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Specifications

Usage:

Small Office

Strong outside signal (−95 dBm RSRP, 5 bars):

Up to 20,000 ft² indoor coverage @ 700 MHz

Fair outside signal (−105 dBm RSRP, 3 bars):

Up to 12,000 ft² indoor coverage @ 700 MHz

Weak outside signal (−115 dBm RSRP, 1 bar):

Up to 2,500 ft² indoor coverage @ 700 MHz

Outside antenna:

Directional LPDA

Inside antenna:

Directional panel + omnidirectional dome (use either)

Cable Type:

400

Connector Type:

Impedance:

50 Ω

Gain/Loss:

+70 dB max

Booster Case Material:

Metal

Signal Readout:

LCD display with output signal in dBM

Warranty Information

For warranty information on this product, please see our WilsonPro warranty information page.
