WilsonPro 70 PLUS Office PRO MAX System with 4 Antennas 463127 (50 Ohm)

Available for purchase or custom install
  • Supports a larger number of simultaneous users
  • 4 indoor dome antennas
  • Graphical signal meter
  • Commercial-grade components
  • Boost both voice & 4G data
  • Works with all major cellular carriers

$2,699.99
SKU: 463127-PRO
Shipping:
Free Shipping
Powerful Signal has been in business over 10 years Powerful Signal is Wilson Electronics' most experienced partner Powerful Signal offers lifetime support on all systems it sells Powerful Signal offers nationwide installation

Product Description

Features of the WilsonPro 70 PLUS Office PRO MAX 4-antenna system

  • Designed for performance and heavy load, both voice and data.
  • Designed for offices up to about 45,000 square feet (with strong outside signal).
  • Best-in-class coverage area.
  • Carrier agnostic: Works with all major U.S. and Canadian carriers.
  • Boosts 4G LTE and 3G service for voice, text, and data.
  • Graphical uplink and downlink power meter.
  • Boosts cell signal in small offices for multiple users.
  • Includes commercial-grade antennas and coax cables.

This WilsonPro 70 PLUS Office PRO MAX system is a four-antenna option designed for small offices or building areas that need improved cell signal reception and have high user and data demands. This system improves both voice and data to reduce dropped calls and missed emails and texts, keeping your business and employees connected with a stronger cell signal.

This kit includes four (4) inside dome antennas that send amplified signal to the phones in your office in four different areas. The idea of using 4 antennas is to be able to disperse more evenly boosted cell signal into 4 different zones. It is not necessarily four times the coverage, but rather more even coverage in a larger area.

Examples of multi-antenna setups

WilsonPro 70 PLUS Office PRO MAX system multi-antenna setups diagram Sample WilsonPro 70 PLUS Office PRO MAX system multi-antenna setups
Please Note: These diagrams are only examples of possible antenna configurations. Additional coax cable may be required in the WilsonPro 70 PLUS Office PRO MAX system kit to achieve these examples. Powerful Signal will be happy to help you determine the proper cabling and coverage for this system in your office environment.

Who is the WilsonPro 70 PLUS Office PRO MAX for?

  • Those who have heavy cellular user and data loads.
  • Those who have a rectangular shape building
  • Those who frequently experience dropped calls, undelivered text, or slow 4G data.
  • Small offices in remote locations with weak cell service.
  • Small offices in urban locations with building materials that block outside cell signal (steel, glass, concrete, plaster, etc.).
  • Small offices below ground level, and other places where cell reception is poor.

Optional plenum air coax cable upgrade

The WilsonPro 70 PLUS Office PRO MAX includes 400-type coax cable to connect the amplifier to the inside antennas. If your building requires fire-rated cable in plenum spaces, please ask us about upgrading to ½‑inch plenum air coax. Plenum cable fully meets state and federal building codes.

Plenum cable also has nearly half the signal loss per foot of cable compared to 400-type coax cable, delivering stronger signal from the WilsonPro amplifier to your phones and other cellular devices.

Click here to learn more about the WilsonPro 70 PLUS Office PRO MAX plenum kit, or call Powerful Signal at 866-912-3444 for more information.

WilsonPro 70 PLUS Office Pro MAX Plenum System with 4 Antennas 463127 Upgrade your WilsonPro 70 PLUS Office PRO MAX to fire-rated plenum air coax cable for building-code compliance and better performance.

Best practices: a custom-designed WilsonPro 70 PLUS Office PRO MAX solution

In a large building, office, or warehouse, you’ll get the best results and performance from a WilsonPro 70 PLUS Office PRO MAX with a custom design and professional installation.

Working with your floor plans, Powerful Signal’s design engineers will create design specifications that will allow you to use the fewest number of components to get the maximum amount of cellular coverage inside your building.

Powerful Signal’s professional installer will have knowledge of local building codes, and have the proper tools and experience to make sure your system is set up and configured correctly.

Call Powerful Signal at 866-912-3444 or request a free custom quote online. We can design a custom cellular amplification system that will solve your reception and connectivity problems at the best possible price point. We’ve designed thousands of cell signal amplifier systems; let us create one for you!

Office floor with a WilsonPro cellular DAS system and dome antenna An office floor flooded with cellular signal from a WilsonPro amplifier and one dome antenna.

Purchasing a WilsonPro 70 PLUS Office PRO MAX system

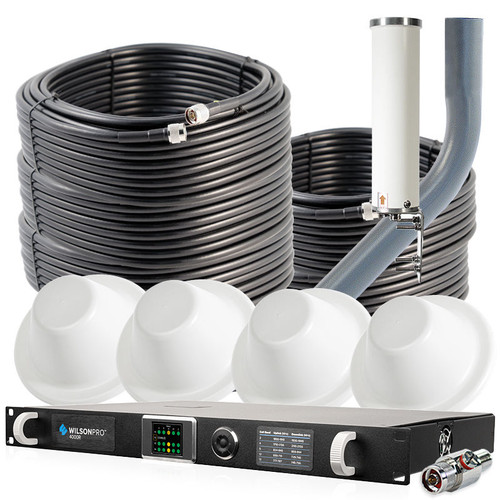

Properly installing and configuring a WilsonPro 70 PLUS Office PRO MAX is complex task, and we strongly advise a custom solution (see Best Practices, above). If you prefer to purchase this system as a standalone product, without design and installation, the kit comes with the following components:

WilsonPro 70 PLUS Office PRO MAX 4-port wall mount system icon WilsonPro 70 PLUS Office PRO MAX 4‑port wall mount system
Top Signal omnidirectional building antenna TS210471 icon Wideband outdoor omni antenna TS210471
Top Signal dome antenna TS250374 icon Wideband indoor dome antenna TS250374 (×4)
Top Signal 400 coax cable 75 feet TS340075 icon 75' 400 coax cable TS340075 (×5)
Top Signal adjustable rooftop antenna mount TS430001 icon Adjustable rooftop antenna mount TS430001
Top Signal 50-ohm lightning surge protector TS450001 icon 50‑ohm lightning surge protector TS450001

How the WilsonPro 70 PLUS Office PRO MAX works

Using Wilson Electronics’ patented SmarTech III® technology, the WilsonPro 70 PLUS Office PRO MAX receives the outside cell signal, amplifies it, and rebroadcasts it inside your office through four ceiling-mounted dome antennas. This allows you to stay connected in areas where cell service is poor, or where your office’s building materials interfere with signals from the local cell tower.

Works with all major cellular carriers

The WilsonPro 70 PLUS Office PRO MAX works with all major wireless carriers:

  • U.S. carriers, including Verizon, AT&T, T‑Mobile, Sprint, U.S. Cellular, and most others.
  • Canadian carriers, including Rogers, Bell Canada, Telus, Wind, and most others.

It operates on common 4G/3G cellular frequencies.

  • 700 MHz (SMH) bands 12, 13, 17.
  • 850 MHz (Cellular 850) band 5.
  • 1700/2100 MHz (AWS) band 4.
  • 1900 MHz (PCS) bands 2, 25.
Carrier logos for Verizon, AT&T, Sprint, T‑Mobile, U.S. Cellular

How much area will the WilsonPro 70 PLUS Office PRO MAX cover?

This system comes with four dome antennas that each broadcast improved cellular signal in a spherical pattern. The radius of that circle depends on many factors, including:

  • Outside cell signal strength received by the donor antenna.
  • Inside building materials. (Cellular frequencies pass through wood framing and drywall more easily than through steel and concrete.)
  • Cellular frequencies used by the carrier. (Lower-freqency LTE and 800 MHz signals travel farther than higher-frequency AWS and PCS signals.)

In general, the stronger the outside cell signal, the greater the interior broadcast distance.

Powerful Signal has over a decade of experience designing and installing cellular amplification systems. Please call us at 866‐912‐3444 or contact us online, and we’ll be happy to calculate the coverage area this system will provide in your building and answer any other questions about this amplifier.

Some online retailers claim that a one-antenna WilsonPro commercial system will provide 50,000 square feet of coverage. That figure is unrealistic under typical conditions, and Powerful Signal warns consumers against purchasing WilsonPro systems from retailers who make such exaggerated claims.

FCC Notice

This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.

Please note: The four largest carriers (Verizon, AT&T, T‑Mobile, and Sprint) and more than 90 regional carriers have given blanket consent for use of all boosters that are certified to the 2013 FCC standards. Go to our Cell Phone Signal Booster Registration page and follow the links for your carrier. There are no fees to register your cell signal booster.

If you have any questions, please contact Powerful Signal.

Product Specifications

Usage:
Small office
Outside Antenna:
Omnidirectional tube
Inside Antenna:
Omnidirectional dome (×4)
Cable Type:
400
Connector Type:
N
Impedance:
50 Ω
Gain/Loss:
+70 dB max
Booster Case Material:
Metal
Signal Readout:
LCD display with output signal in dBM

Warranty Information

All WilsonPro products are protected by WilsonPro’s 30-day money-back guarantee. If for any reason the performance of any product is not acceptable, simply return the product directly to the reseller with a dated proof of purchase. WilsonPro Signal Boosters are warranted for three (3) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by WilsonPro. WilsonPro shall, at its option, either repair or replace the product. WilsonPro will pay for delivery of the repaired or replaced product back to the original consumer if located within the continental U.S. This warranty does not apply to any Signal Booster determined by WilsonPro to have been subjected to misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties. Failure to use a surge protected AC Power Strip with at least a 1000 Joule rating will void your warranty.
