WilsonPro 70 Cell Phone Signal Booster System with 2 Dome Antennas 465134 (50 Ohm): Kit

WilsonPro 70 Cell Phone Signal Booster System with 2 Dome Antennas 465134 (50 Ohm)

Available for purchase or custom install
  • Supports a moderate number of simultaneous users
  • 2 indoor dome antennas
  • Commercial-grade components
  • Boost both voice & 4G data
  • Works with all major cellular carriers
  • Double sq. ft. coverage upgrade available

$1,199.99
SKU: 465134-2
Shipping:
Free Shipping
Powerful Signal has been in business over 10 years Powerful Signal is Wilson Electronics' most experienced partner Powerful Signal offers lifetime support on all systems it sells Powerful Signal offers nationwide installation

Product Description

Features of the WilsonPro 70 2-antenna system

  • WilsonPro’s most cost effective 2-antenna 4G cell phone signal booster system for small offices.
  • Low to moderate use load on cell phones and data
  • Carrier agnostic: Works with all major U.S. and Canadian carriers.
  • Boosts 4G LTE and 3G service for voice, text, and data.
  • Boosts cell signal in small offices for multiple users.
  • Includes commercial-grade antennas and coax cables.

This WilsonPro 70 system is a two-antenna option designed for small rectangular shaped offices or in-building areas that need improved cell signal reception. This system improves both voice and data to reduce dropped calls and missed emails and texts. Keep your business and employees connected with a stronger cell signal.

This kit includes two (2) inside dome antennas that send amplified signal to the cell phones in your office.

Sample WilsonPro 70 PLUS 2-antenna setup Sample WilsonPro 70 PLUS 2-antenna setup

Who is the WilsonPro 70 for?

  • Those who have moderate cellular user and data loads.
  • Those who frequently experience dropped calls, undelivered text, or slow 4G data.
  • Small offices in remote locations with weak cell service.
  • Small offices in urban locations with building materials that block outside cell signal (steel, glass, concrete, plaster, etc.).
  • Small offices below ground level, and other places where cell reception is poor.

Double your coverage with our performance upgrade kit!

The WilsonPro 70 kit comes standard with ⅜‑inch 400 coax cable. Powerful Signal offers you choice to upgrade to ½‑inch carrier-grade coax cable, which will increase the broadcast radius of your inside antenna and double the square footage your Pro 70 PLUS system will cover.

Click the Performance Level option above the Add To Cart button and take advantage of increased coverage in your office!

Double the coverage area The low-loss ½‑inch cable option doubles the square footage of your cell signal amplifier system.

Best practices: a custom-designed WilsonPro 70 solution

In a large building, office, or warehouse, you’ll get the best results and performance from a WilsonPro 70 with a custom design and professional installation.

Working with your floor plans, Powerful Signal’s design engineers will create design specifications that will allow you to use the fewest number of components to get the maximum amount of cellular coverage inside your building.

Powerful Signal’s professional installer will have knowledge of local building codes, and have the proper tools and experience to make sure your system is set up and configured correctly.

Call Powerful Signal at 866-912-3444 or request a free custom quote online. We can design a custom cellular amplification system that will solve your reception and connectivity problems at the best possible price point. We’ve designed thousands of cell signal amplifier systems; let us create one for you!

Office floor with a WilsonPro cellular DAS system and dome antenna An office floor flooded with cellular signal from a WilsonPro amplifier and one dome antenna.

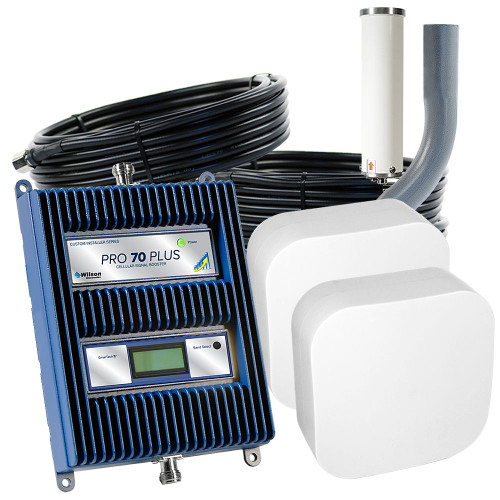

Product includes

Properly installing and configuring a WilsonPro 70 is complex task, and we strongly advise a custom solution (see Best Practices, above). If you prefer to purchase a Pro 70 as a standalone product, without design and installation, the kit comes with the following components:

WilsonPro 70 465134 icon WilsonPro 70 cell signal amplifier
Wilson Electronics power supply 859900 icon AC wall outlet power supply 859900
Top Signal omnidirectional building antenna TS210471 icon Wideband outdoor omni antenna TS210471
Top Signal dome antenna TS250374 icon Wideband indoor dome antenna TS250374 (×2)
Top Signal 2-way splitter TS412001 icon 2-way splitter TS412001
Top Signal 400 coax cable 75 feet TS340075 icon 75' 400 coax cable TS340075
Top Signal 400 coax cable 50 feet TS340050 icon 50' 400 coax cable TS340050 (×2)
Top Signal 400 coax cable 30 feet TS340030 icon 30' 400 coax cable TS340030
Top Signal adjustable rooftop antenna mount TS430001 icon Adjustable rooftop antenna mount TS430001
Top Signal 50-ohm lightning surge protector TS450001 icon 50‑ohm lightning surge protector TS450001
WilsonPro 70 465134 installation guide icon WilsonPro 70 install guide

Optional plenum air coax cable upgrade

The WilsonPro 70 system includes 400-type coax cable to connect the amplifier to the inside antennas. If your building requires fire-rated cable in plenum spaces, please ask us about upgrading to ½‑inch plenum air coax. Plenum cable fully meets state and federal building codes.

Plenum cable also has nearly half the signal loss per foot of cable compared to 400-type coax cable, delivering stronger signal from the WilsonPro amplifier to your phones and other cellular devices.

(Plenum air cable is available at additional cost. Call Powerful Signal at 866-912-3444 for details.)

400-type coax cable and plenum air coax cable terminated with N-male connectors This system uses 400 coax (left), but you can upgrade to fire-rated plenum air coax cable (right) for building-code compliance and better performance.

How the WilsonPro 70 works

Using Wilson Electronics’ patented SmarTech III® technology, the WilsonPro 70 receives the outside cell signal, amplifies it, and rebroadcasts it inside your office through two ceiling-mounted dome antennas. This allows you to stay connected in areas where cell service is poor, or where your office’s building materials interfere with signals from the local cell tower.

Works with all major cellular carriers

The WilsonPro 70 works with all major wireless carriers:

  • U.S. carriers, including Verizon, AT&T, T‑Mobile, Sprint, U.S. Cellular, and most others.
  • Canadian carriers, including Rogers, Bell Canada, Telus, Wind, and most others.

It operates on common 4G/3G cellular frequencies.

  • 700 MHz (SMH) bands 12, 13, 17.
  • 850 MHz (Cellular 850) band 5.
  • 1700/2100 MHz (AWS) band 4.
  • 1900 MHz (PCS) bands 2, 25.
Carrier logos for Verizon, AT&T, Sprint, T‑Mobile, U.S. Cellular

How much area will this product cover?

This system comes with two dome antennas that will broadcast improved cellular signal in a spherical pattern. The radius of that circle depends on many factors, including:

  • Outside cell signal strength received by the donor antenna.
  • Inside building materials. (Cellular frequencies pass through wood framing and drywall more easily than through steel and concrete.)
  • Cellular frequencies used by the carrier. (Lower-freqency LTE and 800 MHz signals travel farther than higher-frequency AWS and PCS signals.)

In general, the stronger the outside cell signal, the greater the interior broadcast distance.

Powerful Signal has over a decade of experience designing and installing cellular amplification systems. Please call us at 866‐912‐3444 or contact us online, and we’ll be happy to calculate the coverage area this system will provide in your building and answer any other questions about this amplifier.

Some online retailers claim that a one-antenna WilsonPro commercial system will provide 50,000 square feet of coverage. That figure is unrealistic under typical conditions, and Powerful Signal warns consumers against purchasing WilsonPro systems from retailers who make such exaggerated claims.

FCC Notice

This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.

Please note: The four largest carriers (Verizon, AT&T, T‑Mobile, and Sprint) and more than 90 regional carriers have given blanket consent for use of all boosters that are certified to the 2013 FCC standards. Go to our Cell Phone Signal Booster Registration page and follow the links for your carrier. There are no fees to register your cell signal booster.

If you have any questions, please contact Powerful Signal.

Product Specifications

Usage:
Small Office
Outside antenna:
Omnidirectional tube
Inside Antenna:
Omnidirectional dome (×2)
Cable Type:
400
Connector Type:
N
Impedance:
50 Ω
Gain/Loss:
+70 dB max
Booster Case Material:
Metal
Signal Readout:
LCD display with output signal in dBM

Warranty Information

All WilsonPro products are protected by WilsonPro’s 30-day money-back guarantee. If for any reason the performance of any product is not acceptable, simply return the product directly to the reseller with a dated proof of purchase. WilsonPro Signal Boosters are warranted for three (3) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by WilsonPro. WilsonPro shall, at its option, either repair or replace the product. WilsonPro will pay for delivery of the repaired or replaced product back to the original consumer if located within the continental U.S. This warranty does not apply to any Signal Booster determined by WilsonPro to have been subjected to misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties. Failure to use a surge protected AC Power Strip with at least a 1000 Joule rating will void your warranty.
