What’s my actual cell signal strength?
Discontinued
Product Description
This system has been discontinued by the manufacturer. For an alternative, see the WilsonPro 70 Plus 75 Ohm system with panel antenna (460127).
The WilsonPro 70 is a single-antenna option designed for small offices or building areas that need improved cell signal reception. The Pro 70 improves both voice and data reception, reducing dropped calls and missed emails and texts. Keep your business and employees connected with a stronger cell signal.
This kit includes one inside panel antenna that sends amplified signal to the phones in your office.
In a large building, office, or warehouse, you’ll get the best results and performance from a WilsonPro 70 with a custom design and professional installation.
Working with your floor plans, Powerful Signal’s design engineers will create design specifications that will allow you to use the fewest number of components to get the maximum amount of cellular coverage inside your building.
Powerful Signal’s professional installer will have knowledge of local building codes, and have the proper tools and experience to make sure your system is set up and configured correctly.
Call Powerful Signal at 866-912-3444 or request a free custom quote online. We can design a custom cellular amplification system that will solve your reception and connectivity problems at the best possible price point. We’ve designed thousands of cell signal amplifier systems; let us create one for you!
An office floor flooded with cellular signal from a WilsonPro amplifier and one dome antenna.

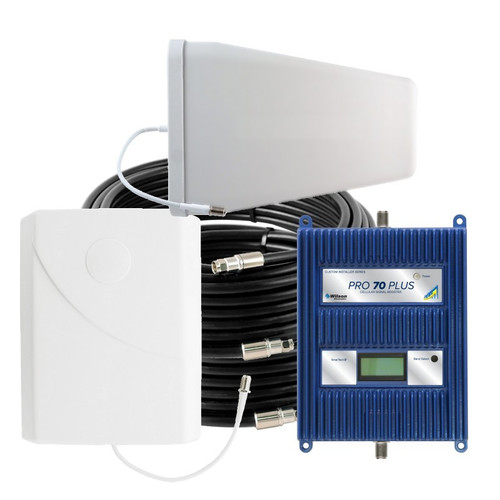

Properly installing and configuring a WilsonPro 70 is complex task, and we strongly advise a custom solution (see Best Practices, above). If you prefer to purchase a Pro 70 as a standalone product, without design and installation, the kit comes with the following components:
WilsonPro 70 cell signal amplifier
AC wall outlet power supply 850010
Wideband outdoor directional antenna 314475
Wideband indoor panel antenna 311155
75′ RG11 coax cable 951175
50′ RG11 coax cable 951150
2′ RG11 coax jumper cable 951127
75‑ohm lightning surge protector 859992
WilsonPro 70 PLUS install guide
Using Wilson Electronics’ patented SmarTech III® technology, the WilsonPro 70 system receives the outside cell signal, amplifies it, and rebroadcasts it inside your office through four ceiling-mounted dome antennas. This allows you to stay connected in areas where cell service is poor, or where your office’s building materials interfere with signals from the local cell tower.
The WilsonPro 70 works with all major wireless carriers, including Verizon, AT&T, T‑Mobile, Sprint, U.S. Cellular, and most others.
It operates on common 4G/3G cellular frequencies.
This system comes with one panel antenna that will broadcast improved cellular signal in a conical pattern. The radius of that circle depends on many factors, including:
In general, the stronger the outside cell signal, the greater the interior broadcast distance.
Powerful Signal has over a decade of experience designing and installing cellular amplification systems. Please call us at 866‐912‐3444 or contact us online, and we’ll be happy to calculate the coverage area this system will provide in your building and answer any other questions about this amplifier.
Some online retailers claim that a one-antenna WilsonPro commercial system will provide 50,000 square feet of coverage. That figure is unrealistic under typical conditions, and Powerful Signal warns consumers against purchasing WilsonPro systems from retailers who make such exaggerated claims.
For information on federal rules governing the use of consumer cell signal boosters, please see our FCC notice page.
Warning This product can expose you to chemicals, including nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Specifications
Warranty Information
For warranty information on this product, please see our WilsonPro warranty information page.
