Top Signal HiBoost 10K 65 Large RV Park Cell Phone Booster TS543511: Kit

Top Signal HiBoost 10K 65 Large RV Park Cell Phone Booster TS543511

Discontinued by the manufacturer
Bulk Pricing:
Buy in bulk and save
  • For use while parked
  • Rooftop antenna sets up in moments
  • Covers RV living area (with sufficient outside signal)
  • Mix-and-match cables for your choice of cable lengths
  • Works with all major cellular carriers for both voice and data


Free lifetime support
SKU: TS543511

Product Description

This product has been discontinued and replaced by the Top Signal HiBoost 10K Smart Link 65 Large RV TS543119.

Features of the Top Signal HiBoost 10K 65 Large RV Park kit

  • Improves cell signal in large (class A) RVs, motorhomes, and fifth wheels.
  • Designed to be used while vehicle is parked. (Not for use while RV is underway.)
  • All-weather outside antenna with ratchet mount attaches to a ladder or roof rail; sets up and folds down in moments.
  • Includes mix-and-match cables—use your choice of cables for the best fit in your RV.
  • +65 dB wideband cell signal booster with metal case and digital readout.
  • Automatic gain control (AGC) provides steady cell signal and prevents booster overload and shutdown.
  • Boosts 4G LTE and 3G service for voice, text, and data.
  • Carrier agnostic: Works with Verizon, AT&T, T‑Mobile, Sprint, and other U.S. and Canadian carriers.
  • Boosts cell signal for multiple users simultaneously.

The Top Signal HiBoost 10K 65 Large RV Park cell phone signal booster system improves cellular reception inside large RVs and motorhomes. Whether at an RV resort, a remote national park, or mountain getaway, the 10K 65 Large RV system will help you stay connected, with faster 4G data and fewer dropped calls, undelivered texts, and missed email messages.

With sufficient outside signal strength (−100 dBm/1 bar or greater), the 10K 65 Large RV system can improve signal throughout your rig’s dining area or other living space. Less outside signal will reduce the total coverage amount, but will still make phone, text, and data available closer to the inside antenna (as long as outside signal isn’t effectively zero).

Who is the Top Signal HiBoost 10K 65 Large RV Park kit for?

  • Class A motorhomes (30–45 feet long).
  • Large fifth wheel trailers.
  • Government agencies with RVs that serve as mobile command posts (police, disaster recovery, etc.).
  • Anyone who needs the best, most reliable cell phone connectivity in their RV or trailer.

Do-it-yourself installation

You can install the Top Signal HiBoost 10K 65 Large RV Park kit yourself or you can have it installed by an RV dealer or service center. Installation requires running ¼-inch coax cable into your RV through an available opening or a specially-drilled entry point. (Speak with a professional if you’e not sure how to run cable into your rig.)

Top Signal HiBoost 4K 60 Small RV Park kit for class C motorhomes

There are four main components to install:

  • The outside omnidirectional all-weather antenna with N-female connector. Attach this to a ladder or roof rail, using the included ratchet mount. We recommend attaching this antenna at the opposite end of the RV from the inside antenna. (Separation of the two antennas prevents signal oscillation and booster shutdown.)
  • The HiBoost Home 10K cell signal booster. The booster unit needs to be placed where it has access to an AC power outlet.
  • The inside omnidirectional flat dome antenna with N-female connector. Mount this in or under a kitchen cabinet, preferably with the refrigerator between the inside dome antenna and the outside cylinder antenna. (The metal in the refrigerator will help prevent signal oscillation between the two antennas.)
  • Coax cable. This kit includes four 10-foot lengths of low-loss 240 coax cable to connect the antennas to the booster. Mix and match the cables to the appropriate length for your RV. Use only the lengths you need and no more. Do not kink, loop, or coil any cables. The small FME connectors can be easily inserted into holes and pulled behind interior panels and appliances. Use the FME-to-N adapters to connect the ends of the cables to the booster.

We strongly recommend you do a “soft” installation before permanently mounting the antennas and pulling cable. Drive to an area with weak cell signal, lay out and connect all the components inside your RV, power on the booster, then check the cell signal you receive from the inside antenna. If the ISO LED light on the front of the booster is flashing green or red, the two antennas are oscillating; move the inside antenna farther from the outside antenna. Metal plating between the antennas will often reduce the minimum required separation.

Setup examples (click images to enlarge)

Top Signal HiBoost 10K 65 Large RV Park outside omni antenna deployed Top Signal HiBoost 10K 65 Large RV Park outside omni antenna folded Top Signal HiBoost 10K 65 Large RV Park inside ultra-thin dome antenna installed

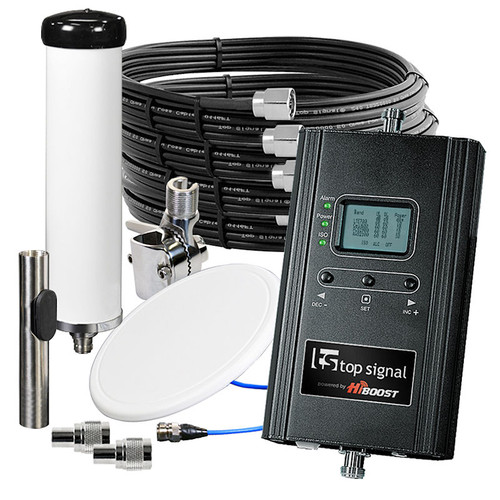

Top Signal HiBoost 10K 65 Large RV Park kit contents

This is a complete kit, with everything you need to start getting the best signal in your vessel:

Top Signal HighBoost 10K cell signal booster TS543011 icon Top Signal HiBoost 10K cell signal amplifier F15G‑5S‑LCD
HiBoost 12V/3A AC/DC power supply icon AC/DC adapter GM50‑120300‑F
Top Signal all-weather 4G omni antenna TS210462 icon Top Signal all‑weather omni antenna TS210462
Shakespeare 4190 ratchet rail antenna mount icon Shakespeare 4190 ratchet rail antenna mount
Top Signal dome antenna TS250374 icon Wideband indoor ultra-thin dome antenna TS250376
Top Signal 240 coax 10 ft. N-Male/FME-Female Connectors TS320110 icon 10′ 240 coax with N‑male & FME‑female connectors TS320110 (×2)
Top Signal 240 coax 10 ft. FME-Male/FME-Female Connectors TS320210 icon 10′ 240 coax with FME‑male & FME‑female connectors TS320210 (×2)
Top Signal TS451013 N-Male to FME-Male Connector icon N‑male to FME‑male connector TS451013 (×2)
HiBoost Home 10K LCD user manual icon HiBoost Home 10K LCD user manual

Works with all major cellular carriers

The Top Signal HiBoost 10K 65 Large RV Park kit works with all major wireless carriers:

  • U.S. carriers, including Verizon, AT&T, T‑Mobile, Sprint, U.S. Cellular, and most others.
  • Canadian carriers, including Rogers, Bell Canada, Telus, Wind, and most others.

It operates on common 4G/3G cellular frequencies.

  • 700 MHz (SMH) bands 12, 13, 17.
  • 850 MHz (Cellular 850) band 5.
  • 1700/2100 MHz (AWS) band 4.
  • 1900 MHz (PCS) bands 2, 25.
Carrier logos for Verizon, AT&T, Sprint, T-Mobile, U.S. Cellular

FCC Notice

For information on federal rules governing the use of consumer cell signal boosters, please see our FCC notice page.

Product Specifications

Outside Antenna:
Omnidirectional all-weather
Inside Antenna:
Omnidirectional ultra-thin dome
Cable Type:
Connector Type:
50 Ω
+65 dB max
Max Output Power (Uplink):
17–24 dBm
Max Output Power (Downlink):
12 dBm
Booster Case Material:
Signal Readout:
Backlit LCD display with adjustable uplink, downlink & power by channel

Warranty Information

For warranty information on this product, please see our Top Signal warranty information page.
