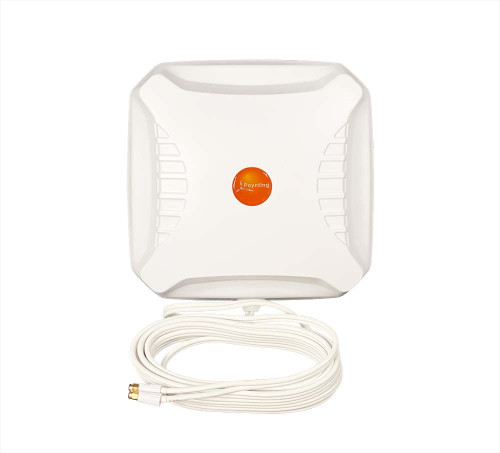

Poynting XPOL-2-5G 2×2 MIMO 5G/LTE Directional Antenna for WiFi Routers & Hotspots 617–3800 MHz N-Female Connectors | A-XPOL-0002-V3-12 | TS221121

Poynting XPOL-2-5G 2×2 MIMO 5G/LTE Directional Antenna for WiFi Routers & Hotspots 617–3800 MHz N-Female Connectors

For cellular routers, modems, and hotspots
Bulk Pricing:
Buy in bulk and save
  • For use with cellular–WiFi routers with 2 × cellular ports
  • Wideband X-polarized 2×2 MIMO outdoor panel antenna
  • 9–11 dBi gain over 617–3800 MHz 5G & 4G frequencies
  • Twin N-female connectors; optional add‑on 400 coax cable with adapters for SMA, TS9 & U.fl ports
  • Mounting hardware included; attaches to a wall or a 1¼″–2″ pole (optional add‑on)

Free lifetime support
$209.99
SKU: TS221121
Shipping:
Calculated at Checkout

Product Description

Connects directly to a cellular–WiFi router, hotspot, or modem. Does not connect to a cell signal booster.

Features of the Poynting XPOL-2 2×2 MIMO antenna

  • 10.5″ × 10.5″ × 3.5″ (265 × 265 × 90 mm) directional outdoor building antenna.
  • Connects to dual cellular ports on a cellular–WiFi router, modem, or hotspot. (Cables not included; add‑on cables available above.)
  • Two N‑female connectors on the back of the antenna support low‑loss 400-type and other 50‑ohm coax cables.
  • Optional add‑on dual TS‑400 coax cables available in three lengths (20′, 30′, and 50′) with SMA, TS9, and U.fl/MHF adapters to complete the connection to your router.
  • Enclosure contains two cross-polarized antennas for superior signal strength and quality. Poynting’s patent-pending radiator configuration provides:
  • 9 dBi gain on 617–894 MHz 5G, 4G LTE, and 3G frequencies.
  • 10 dBi gain on 1710‑2700 MHz 5G, 4G LTE, 3G, and WiFi frequencies.
  • 11 dBi gain on 3400–3800 MHz 5G frequencies.
  • Enclosure is IP 65-ratedexternal link icon for protection against water and dust.
  • Mounts upright on a wall or to a pole 1.5″–2.0″ in diameter. (Mounting hardware included; pole available as an optional add‑on.)
  • 50‑ohm impedance.
  • 2‑year warranty.

What’s a MIMO antenna?

A MIMO (multiple-input, multiple-output) antenna sends and receives signal through two or more simultaneous data streams, providing better signal strength and quality than single‑input, single‑output (SISO) antennas.

A MIMO antenna may be the right solution for you if:

  • You need to improve signal reception on a router, hotspot, or modem that converts cellular signal to WiFi.
  • Your router or other device has two SMA, TS9, or U.fl/MHF ports.
  • The outdoor signal at your location is fair or moderate.
  • You need faster download speeds for streaming videos and downloading files.
  • You need improved signal for cellular frequencies that aren’t amplified by cell signal boosters (like band 71 and 5G bands between 2300 and 4000 MHz).

For needs other than these, a cell signal booster may be a better option. If you have any questions about which option is right for you, please feel free to contact Powerful Signal—we’ll be happy to help you!

Poynting XPOL-2 2×2 MIMO antenna contents

Poynting 2x2 MIMO Outdoor Panel Antenna with N-Female A-XPOL-0002-V3-12 TS221121 icon Panel antenna w/2 N‑female connectors TS221121
Poynting 2x2 MIMO Outdoor Panel Antenna Mounting Hardware icon Antenna mounting hardware
Poynting XPOL-2 MIMO 2x2 Antenna A-XPOL-0002-V3-12 User Guide icon Poynting XPOL-2 user guide
Top Signal Adjustable Building Antenna Mount TS430001 icon Optional add‑on
Adjustable building mount TS430001

Optional add‑on TS‑400 coax cable sets:

Top Signal TS-400 Coax with N-Male Connectors TS3400x0 icon TS‑400 coax 20′, 30′ or 50′ TS3400x0 (×2)
Top Signal N-Female/N-Female Right-Angle Connector TS452004 icon N‑male/N‑female right‑angle connector TS452004 (×2)
Top Signal RG58 2-Foot Jumper Cable N-Female/SMA-Male TS386002 icon 2′ RG58 jumper cable N‑female/​SMA‑male TS386002 (×2)
Top Signal TS451040 SMA-Female to TS9-Male Connector icon SMA‑female to TS9‑male adapter TS451040 (×2)
Top Signal TS392006 SMA-Female to U.fl/MHF 6-Inch Jumper Cable icon 6″ SMA‑female to U.fl/MHF jumper cable TS392006 (×2)

Product Specifications

Usage:
Office/residential
Connector Type:
N-female (optional adapters for SMA, TS9 & U.fl/MHF)
Cable Type:
None (optional 400 coax add‑on)
Cable Length:
None (optional 20′/30′/50′ add‑on)
Antenna Type:
Outside directional
Antenna Size:
10.5 × 10.5 × 3.5 in. (265 × 265 × 90 mm)
Polarization:
Vertical
Mount Type:
Bracket
Mount Spec:
Attaches to walls or to 1.5–2.0″-diameter poles
Impedance:
50 Ω
Gain 617–894 MHz:
+9.0 dBi
Gain 1710–2700 MHz:
+10.0 dBi
Gain 3400–3800 MHz:
+11.0 dBi
