The weBoost RV50 shares the weBoost RV35’s amplifier—the same one used in the weBoost Home Studio—and pairs it with the higher-gain Omni Plus roofline antenna and a second inside antenna. In a 45-foot Class A, one inside antenna at the galley leaves the bedroom short. Two antennas, split front and back, solve that.
Because the roofline antenna is mounted once and receives from every direction, the system starts working the moment you park. There is no pole to raise, no tower to find, and no setup ritual at the campsite.
* The RV50 is a fixed-location booster, not a mobile one. Use it while parked.
For rigs 20 to 40 feet, the single-antenna weBoost RV35 is the better value. If you need boosted signal while the rig is moving, you need a mobile-class booster instead: the weBoost RV20.
You can install the weBoost RV50 yourself. The Omni Plus antenna mounts once at the roofline, the coax runs in through an existing junction box or the included window entry cable, and the two-way splitter feeds the two inside antennas.
Place the two inside antennas well apart—one toward the front of the rig and one toward the back—so they cover different areas instead of overlapping. Because the outside antenna is omnidirectional, there is nothing to aim during installation and nothing to re-aim at your next campsite.
Click here to download the detailed, illustrated installation guide, or see the Documentation section below.
The weBoost app measures signal performance, pinpoints the nearest cell tower, and shows your cell signal strength before and after installation. It includes step-by-step setup instructions and how-to videos for weBoost products.
This is a complete kit, with everything you need to start getting the best signal in your RV:
weBoost Home Studio cell signal booster 460066
Wilson AC/DC wall outlet power supply 850027
Outdoor Omni Plus antenna 304423 w/mounting hardware
Inside mini-panel antenna w/13′ coax cable & VELCRO® mounting strips 310004 (×2)
30′ RG-6 coax cable 950630
15′ RG-6 coax cable 950615 (×2)
RV cable entry cover
2-way F-female 75-ohm splitter 850034
10″ window entry cable 951182
weBoost RV35 installation guide

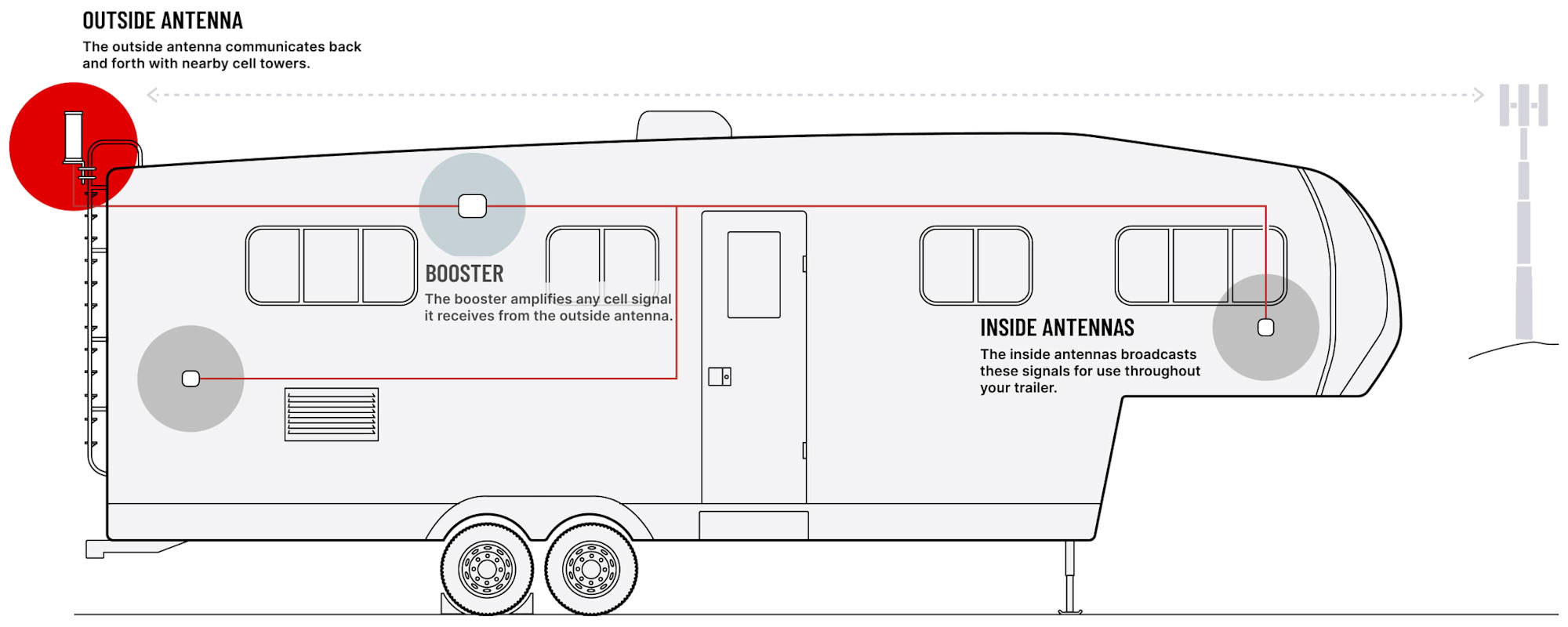

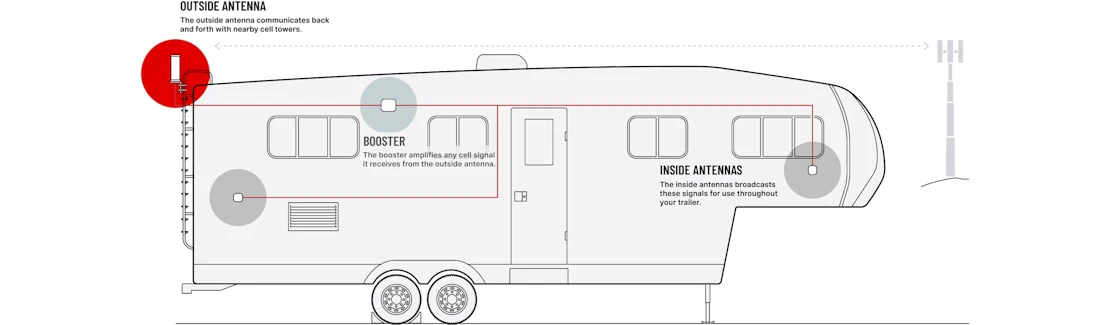

Using Wilson Connectivity’s patented technology, the weBoost RV50 receives the outside cell signal through the Omni Plus roofline antenna, amplifies it, and rebroadcasts it inside your RV through two mini-panel antennas. This allows you to stay connected at campsites where cell service is poor or where your rig’s construction blocks signal from the local cell tower.
The two-way splitter divides the amplifier’s output between the two inside antennas, so each one serves its own end of the rig. Rather than one antenna straining to cover 45 feet, each antenna covers a shorter distance well.
The mini-panel antennas are omnidirectional. They send amplified signal in all directions, so place them inside the RV in the areaa you use most.
The weBoost RV50 works with all major wireless carriers, including Verizon, T-Mobile, AT&T, Boost Mobile, UScellular, GCI Alaska, and most others.
It operates on common cellular frequencies.
For information on federal rules governing the use of consumer cell signal boosters, please see our FCC notice page.
Warning This product can expose you to chemicals, including nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
.
Product Specifications
Warranty Information
For warranty information on this product, please see our weBoost warranty information page.
