Poynting 4×4 MIMO “Badger” 7-in-1 MIMO-3-17 5G/LTE Vehicle Antenna | A-MIMO-0003-V2-17 | TS210611

Poynting 4×4 MIMO “Badger” 7-in-1 MIMO-3-17 5G/LTE Vehicle Antenna for WiFi Routers & Hotspots 410–3800 MHz

6 mounting options
Bulk Pricing:
Buy in bulk and save
  • 7-in-1 cellular donor/WiFi broadcast antenna for cellular–WiFi routers
  • Wideband 4×4 MIMO outdoor antenna for RVs, trailers &vans
  • Up to 6.2 dBi gain for cellular; up to 7 dBi gain for WiFi
  • 7 × 6.6′ bundled RTK031 coax cables with SMA-male connectors
  • Includes adhesive pad & 2 spigot mounts

Free lifetime support
$339.99
SKU: TS210611
Shipping:
Calculated at Checkout

Product Description

Connects to a 4×4 cellular–WiFi router, hotspot, or modem. Does not connect to a cell signal booster.

Features of the Poynting MIMO-3-17 “Badger” 4×4 MIMO vehicle antenna

  • 10.0″ ʟ × 5.0″ ᴡ × 5.7″ ʜ (253 × 128 × 144 mm) omnidirectional vehicle antenna.
  • Receives 4G/LTE and 5G cellular signal from 617 to 3800 MHz; broadcasts 2.4 & 5 GHz WiFi signal.
  • Seven 6.6′ (2 m) SMA‑male RTK031 coax cables connect to cellular (×4), WiFi (×2), and GPS (×1) ports on a 4×4 cellular–WiFi router, modem, or hotspot. The cables are enclosed in a braided protection sleeve.
  • Mounts on or above the roof of an RV, motorhome, trailer, van, or other vehicle.
  • Two mounting options (mounting accessories included):
    • Spigot mount attaches through a 0.9″ (22 mm) hole with 0.4″ (10 mm) or 2.0″ (50 mm) two-piece threaded spigot posts and nut. (Requires a drilled entry point below the center the antenna to run the coax cables.)
    • Surface mount attaches securely to non-magnetic roofs and surfaces with a double-sided foam adhesive pad. (Includes a rear-exit channel for the coax cables.)
  • The rugged ASA enclosure is IK10 impact-ratedexternal link icon and IP 69K-ratedexternal link icon for protection against water immersion and dust. It’s also rated for wind conditions up to 135 ᴍᴘʜ (220 ᴋᴘʜ ), depending on the selected mounting option.
  • Ground plane-independent.
  • 50‑ohm impedance.
  • 2‑year warranty.
Peplink MAX BR1 Pro 5G antenna connectors The Poynting MIMO-3-17 4×4 MIMO antenna has 7 coax cables that connect to the 4 LTE, 2 WiFi, and 1 GPS connectors on routers like this Peplink MAX BR1 Pro 5G.

Installation

The Poynting MIMO-3-17 antenna has two mounting options for flexible use as a cellular donor and WiFi broadcast antenna on your RV, trailer, van, or other vehicle.

Click here to download Poynting’s PDF user guide with installation instructions.

Poynting MIMO-3-17 4x4 MIMO Vehicle Antenna A-MIMO-0003-V2-17 TS210611 spigot mount Spigot mount
with 10 mm or 80 mm spigot

(cable bottom exit)

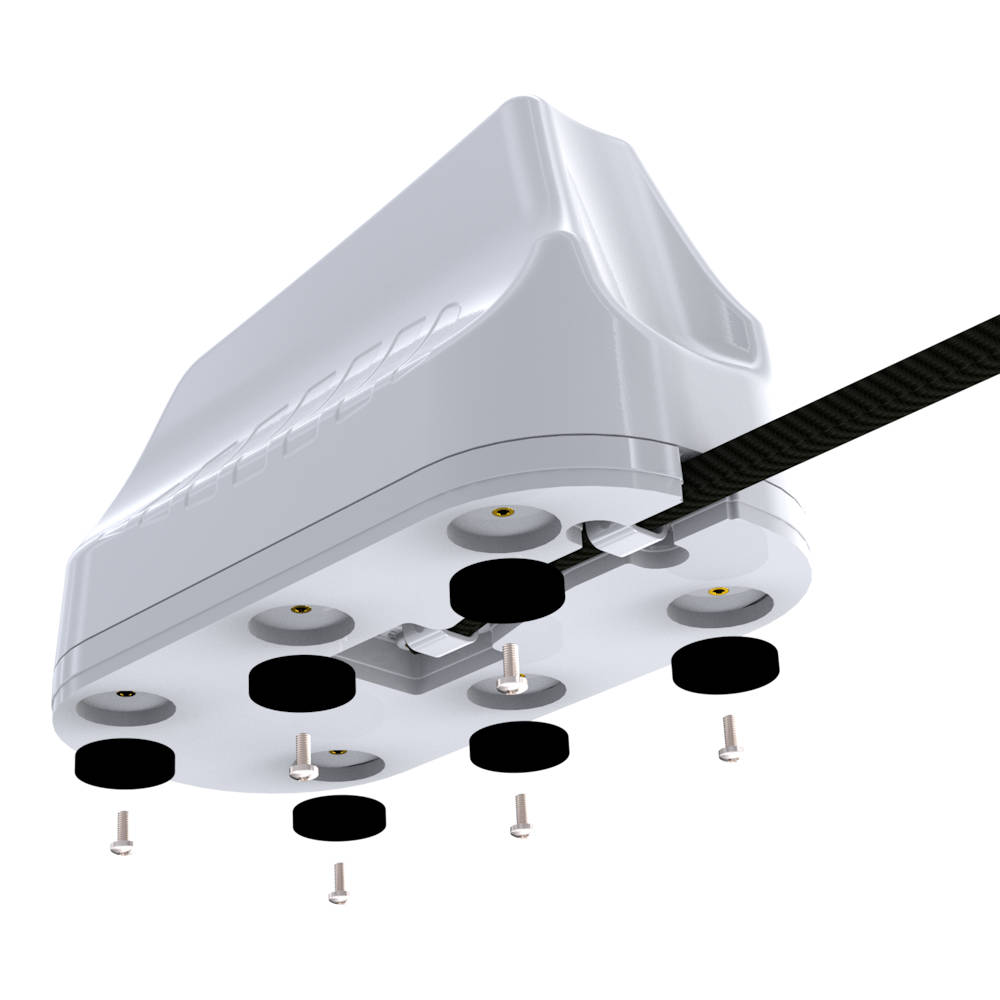

Poynting MIMO-3-17 4x4 MIMO Vehicle Antenna A-MIMO-0003-V2-17 TS210611 adhesive mount Surface mount
with adhesive pad and discs

(cable rear exit)

Sample installation videos:

Poynting MIMO-3-17 antenna contents

Poynting MIMO-3-17 4x4 MIMO Vehicle Antenna A-MIMO-0003-V2-17 TS210611 icon Antenna w/2‑meter 7 × RTK031 coax cable bundle A‑MIMO‑0003‑V2‑17
Poynting MIMO-3-17 4x4 MIMO Vehicle Antenna A-MIMO-0003-V2-17 10 mm Spigot icon 10 mm spigot
Poynting MIMO-3-17 4x4 MIMO Vehicle Antenna A-MIMO-0003-V2-17 80 mm Spigot icon 80 mm spigot
Poynting MIMO-3-17 4x4 MIMO Vehicle Antenna A-MIMO-0003-V2-17 Spigot Nut icon Spigot nut
Poynting MIMO-3-17 4x4 MIMO Vehicle Antenna A-MIMO-0003-V2-17 Spigot Seal icon Spigot seal
Poynting MIMO-3-17 4x4 MIMO Vehicle Antenna A-MIMO-0003-V2-17 Adhesive Foam Pad icon Adhesive foam pad
Poynting MIMO-3-17 4x4 MIMO Vehicle Antenna A-MIMO-0003-V2-17 Adhesive Foam Discs icon Adhesive foam discs (×6)
Poynting MIMO-3-17 4x4 MIMO Vehicle Antenna A-MIMO-0003-V2-17 Cable Clips icon Cable clips (×2)
Poynting MIMO-3-17 4x4 MIMO Vehicle Antenna A-MIMO-0003-V2-17 SMA-Female/RP-SMA-female Adapters icon SMA-female to RP-SMA-female adapters (×2)
Poynting MIMO-3-17 4x4 MIMO Vehicle Antenna A-MIMO-0003-V2-17 M4 x 12 mm Screws icon M4 × 12 mm screws (×2)
Poynting MIMO-3-17 4x4 MIMO Vehicle Antenna A-MIMO-0003-V2-17 User Guide icon Poynting MIMO-3-17 user guide

Product Specifications

Usage:
Class A & class C RV / class B van / trailer
Antenna Type:
Omnidirectional MIMO
Antenna Length:
10.0 in. (25.3 cm) L × 5.0 in. (12.8 cm) W × 5.7 in. (14.4 cm) H
Polarization:
Vertical
Connector Type:
SMA-male
Mount Type:
Spigot, adhesive
Mount Spec:
Attaches to steel, flat surfaces, drillable surfaces
Impedance:
50 Ω
Cellular Gain 617–960 MHz:
+2.2 dBi
Cellular Gain 1710–2700 MHz:
+6.2 dBi
Cellular Gain 3400–3800 MHz:
+4.8 dBi
WiFi Gain 2400–2500 MHz:
+3.0 dBi
WiFi Gain 5000–7200 MHz:
+7.0 dBi
Cellular VSWR:
<2.5:1
WiFi VSWR:
<2.5:1
Beamwidth Horizontal Plane::
360°

Warranty Information

For warranty information on this product, please see our Poynting warranty information page.
