    Poynting LPDA-500 High-Gain 5G/LTE/WiFi Directional Antenna 617–7200 MHz N-Female TS221131

    Our highest-gain log periodic antenna
    Bulk Pricing:
    Buy in bulk and save

    Tier Price Rates

    • Ultra-wideband outdoor antenna with +9.0 to +11.5 dBi of gain
    • For 50-ohm cell signal boosters & cellular–WiFi routers
    • N-female bulkhead connector
    • Attaches to 1½″–2″ pole (optional add‑on)
    • U-bolt & brackets (included) rotatable at 45° increments for MIMO setups

    Free lifetime support
    $199.99
    SKU: TS221131
    Shipping:
    Calculated at Checkout

    Product Description

    Features of the Poynting High-Gain LPDA-500 Antenna

    • 54.5″ × 9.8″ (138.5 × 25.0 cm) high-gain directional LPDA/Yagi building antenna for cell phone signal boosters and cellular–WiFi routers.
    • +9.0–11.5 dBi gain.
    • Future-proof frequency range of 617–7200 MHz 5G, 4G/LTE, and WiFi frequencies, with exceptional performance over the entire range of frequencies.
    • Mounts upright on poles 1.5″ –2.0″ in diameter with U bolts (included; pole available as an optional add on).
    • LPDA Antenna mounting points can be rotated at 45° increments for MIMO setups.
    • N female bulkhead connector.
    • 50 ohm impedance.
    • Rugged design deployable in extreme weather conditions:
    • IP 65-ratedexternal link icon design protects against dust and water intrusion.
    • IK 08-ratedexternal link icon impact-resistant design.
    • Wind-rated up to 100 MPH (160 KPH).
    • 2-year warranty.

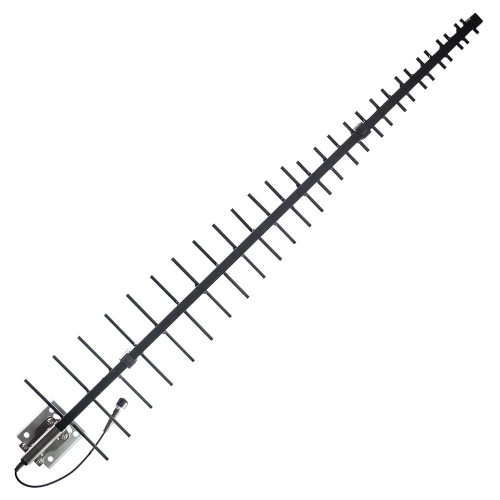

    Poynting LPDA-500 ultra-wideband log-periodic diplole array 5G antenna The Poynting LPDA-500 high-gain antenna highly focuses the outdoor signal strength between a cell tower and a cell signal booster or cellular router.

    How the Poynting High-Gain LPDA-500 Antenna works

    • Receives outside signal from a cell phone tower and directs it to a cell phone signal booster or cellular–WiFi router.
    • For use outside commercial buildings, offices, and homes that need maximum gain to boost weak outside cellular signal.
    • Works with 50 ohm boosters and routers.

    Learn more about LPDA antennas in our Knowledge Base article, “What’s the difference between an LPDA antenna and a Yagi antenna?”

    Poynting high-gain LPDA antenna contents

    Poynting LPDA-500 wideband antenna A-LPDA-0500-V1-01 icon Poynting LPDA-500 wideband antenna A-LPDA-0500-V1-01
    U-bolts and brackets for Poynting LPDA-500 wideband antenna A-LPDA-0500-V1-01 icon U-bolt & bracket (×2)
    Poynting LPDA-500 wideband antenna A-LPDA-0500-V1-01 user guide icon User guide
    Top Signal Adjustable Building Antenna Mount TS430001 icon Optional add‑on
    18″ adjustable building mount TS430001
    Top Signal TS450001 Lightning Surge Protector 50 Ohm N-Male/N-Female icon Optional add‑on
    50-ohm lightning surge protector TS450001

    Please note

    • This LPDA antenna works best when used 8 to 10 miles or more from a cell tower.
    • This high-gain wifi antenna requires an adequate line of sight to a cell tower. For homes and buildings with trees, terrain, or other obstacles blocking sight of the tower, we recommend the Poynting OMNI-293 5G/LTE omni antenna.
    • This LPDA antenna will not operate by itself; it is one component of a cell signal booster or cellular router system. Please contact Powerful Signal—we’ll be happy to help you determine what your needs are and what system will work best in your situation.

    Prop 65 notice

    Caution triangle icon Warning This product can expose you to chemicals, including nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govexternal link icon.

    Product Specifications

    Usage:
    Office/residential
    Connector Type:
    N-female (bulkhead)
    Cable Length:
    None
    Antenna Type:
    Outside directional
    Antenna Length:
    54.5 in. (138.5 cm)
    Polarization:
    Vertical
    Mount Type:
    U-bolt bracket
    Mount Spec:
    Attaches to 1.5–2.0 in. poles
    Impedance:
    50 Ω
    Gain 617–960 MHz:
    +10.5 dBi
    Gain 1427–1517 MHz:
    +10.0 dBi
    Gain 1710–2700 MHz:
    +11.0 dBi
    Gain 3400–4200 MHz:
    +11.5 dBi
    Gain 5000–6000 MHz:
    +10.0 dBi
    Gain 6000–7200 MHz:
    +9.0 dBi
    VSWR:
    < 1.75:1
