WilsonPro 1000R Rack-Mount Commercial Signal Booster 2 Antennas 460237: Kit

WilsonPro 1000R Rack-Mount Commercial Signal Booster 2 Antennas 460237

Wilson’s most powerful system with an extra zone of coverage
Bulk Pricing:
Buy in bulk and save
  • Enterprise DAS with 2 zones of coverage
  • Heaviest user loads
  • Color LCD status & control display
  • Commercial-grade components
  • Boost both voice and 4G data
  • Works with all major cellular carriers
Outside Signal Strength
Coverage @ 700 MHz LTE
5 Bars
Up to 45,000 ft²
3 Bars
Up to 7,500 ft²
1 Bar
Nᴏᴛ ʀᴇᴄᴏᴍᴍᴇɴᴅᴇᴅ

Discontinued

Free lifetime support
SKU: 460237-PS-2

Product Description

This system has been discontinued by the manufacturer. Please see our line of WilsonPro Enterprise 1300 Series commercial cellular boosters.

Features of the WilsonPro 1000R two‑antenna system

  • Provides two zones of coverage for office buildings, hospitals, campuses, warehouses, and other large facilities.
  • Rack-mounted to fit your I.T. room or closet.
  • Color LCD setup screen and power meter with D-pad controller.
  • Boosts 4G LTE and 3G service for voice, text, and data.
  • Carrier agnostic: Works with all major U.S. cellular carriers and networks.

The WilsonPro 1000R two-antenna system is rack-mounted, with a single amplifier and two inside dome antennas. The dual-antenna setup provides two zones of coverage in large office buildings, warehouses, hospitals, hotels, campuses, and other facilities. With strong outside cell signal (around −80 dBm) the WilsonPro 1000R can cover two zones of 15,000 to 30,000 square feet each (depending on the cellular frequency being amplified).

This is the industry’s first cell phone signal amplifier designed to be mounted with the rest of your I.T. infrastructure: The Pro 1000R fits into a standard server rack in your I.T. room or closet. Run plenum, HELIAX®, or 400-type coax cable from the outside donor antenna and inside broadcast antennas to your I.T. room, mount the Pro 1000R in your rack, and attach the antenna cables to the back to the amplifier.

The WilsonPro 1000R automatically controls the amplifier with its on-board software, and adjusts the gain level, up or down, as needed. It can reduce its gain to prevent oscillation, and with Wilson’s XDR (eXtended Dynamic Range) technology, the Pro 1000R will never overpower or shut down.

The color LCD screen and D-pad navigation controller allow installers and administrators to monitor and adjust the gain of the various cellular frequencies the Pro 1000R supports.

Sample WilsonPro 1000R 2-antenna setup Sample WilsonPro 1000R two‑antenna setup

Who is the WilsonPro 1000R two‑antenna system for?

  • Office buildings, medical/business/education/government campuses, warehouses/distribution centers, and other multi-floor and/or long buildings that need two zones of improved coverage.
  • Those who have heavy cellular user and data loads.
  • Those who frequently experience dropped calls, undelivered texts, or slow 4G data.
  • Buildings in urban locations with building materials that block outside cell signal (steel, low-e glass, concrete, plaster, etc.).
  • Buildings with floor space below ground level, and other places where cell reception is poor.

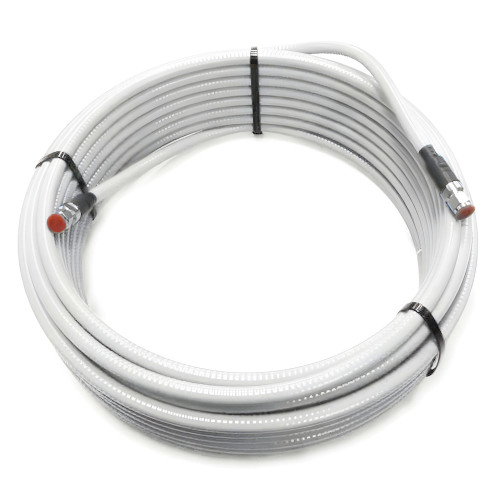

Optional plenum air coax cable upgrade

The WilsonPro 1000R two‑antenna system includes 400-type coax cable to connect the amplifier to the inside antennas. If your building requires fire-rated cable in plenum spaces, please ask us about upgrading to ½-inch plenum air coax. Plenum cable fully meets state and federal building codes.

Plenum cable also has nearly half the signal loss per foot of cable compared to 400-type coax cable, delivering stronger signal from the WilsonPro amplifier to your phones and other cellular devices.

(Plenum air cable is available at additional cost. Call Powerful Signal at 866-912-3444 for details.)

400-type coax cable and plenum air coax cable terminated with N-male connectors This system uses 400 coax (left), but you can upgrade to fire-rated plenum air coax cable (right) for building-code compliance and better performance.

Best practices: a custom-designed WilsonPro 1000R solution

In a large building, office, or warehouse, you’ll get the best results and performance from a WilsonPro 1000R with a custom design and professional installation.

Working with your floor plans, Powerful Signal’s design engineers will create design specifications that will allow you to use the fewest number of components to get the maximum amount of cellular coverage inside your building.

Powerful Signal’s professional installer will have knowledge of local building codes and the proper tools and experience to make sure your system is set up and configured correctly.

Call Powerful Signal at 866-912-3444 or request a free custom quote online. We’ll design a custom system that will solve your cellular reception and connectivity problems at the best possible price point. We’ve designed thousands of cell signal amplifier systems—let us create one for you!

Office floor with a WilsonPro cellular DAS system and dome antenna An office floor flooded with cellular signal from a WilsonPro amplifier and a dome antenna.

Purchasing a WilsonPro 1000R two‑antenna system

Properly installing and configuring the WilsonPro 1000R is complex task, so we strongly advise a custom solution (see above). If you prefer to purchase this system as a standalone product, without design and installation, the kit comes with the following components:

WilsonPro 1000R 460237 icon WilsonPro 1000R cell signal amplifier
Schaffner IL13-US1-SVT-3100-183 power cable icon 6′ locking AC power cable
Top Signal omnidirectional building antenna TS210471 icon Wideband outdoor omni antenna TS210471
Top Signal dome antenna TS250374 icon Wideband indoor dome antenna TS250374 (×2)
Top Signal 400 coax cable 100 feet TS340100 icon 100′ 400 coax cable TS340100 (×2)
Top Signal 400 coax cable 75 feet TS340075 icon 75′ 400 coax cable TS340075
Top Signal 2-way splitter TS412001 icon 2-way splitter TS412001
Top Signal 400 coax cable 2 feet TS340002 icon 2′ 400 coax jumper cable TS340002
Top Signal adjustable rooftop antenna mount TS430001 icon Adjustable rooftop antenna mount TS430001
Top Signal 50-ohm lightning surge protector TS450001 icon 50‑ohm lightning surge protector TS450001
WilsonPro 1000R user manual 460237 icon WilsonPro 1000R user manual

How the WilsonPro 1000R works

Using Wilson Electronics’ patented SmarTech III® technology, the WilsonPro 1000R receives the outside cell signal, amplifies it, and rebroadcasts it inside your office. This allows you to stay connected in areas where cell service is poor or where your office’s building materials interfere with signals from the local cell tower.

Works with all major cellular carriers

The WilsonPro 1000R works with all major wireless carriers, including Verizon, AT&T, T‑Mobile, Sprint, U.S. Cellular, and most others.

It operates on common 4G/3G cellular frequencies.

  • 700 MHz (SMH) bands 12, 13, 17.
  • 850 MHz (Cellular 850) band 5.
  • 1700/2100 MHz (AWS) band 4.
  • 1900 MHz (PCS) bands 2, 25.
Carrier logos for Verizon, AT&T, Sprint, T‑Mobile, U.S. Cellular

How much area will the WilsonPro 1000R two‑antenna system cover?

This system comes with two dome antennas that broadcast improved cellular signal in a spherical pattern. The radius of each circle depends on many factors, including:

  • Outside cell signal strength received by the donor antenna.
  • Inside building materials. (Cellular frequencies pass through wood framing and drywall more easily than through steel and concrete.)
  • Cellular frequencies used by the carrier. (Lower-frequency LTE and 800 MHz signals travel farther than higher-frequency AWS and PCS signals.)

In general, the stronger the outside cell signal, the greater the interior broadcast distance.

Powerful Signal has over a decade of experience designing and installing cellular amplification systems. Please call us at 866‐912‐3444 or contact us online, and we’ll be happy to calculate the coverage area this system will provide in your building and answer any other questions about this amplifier.

Some online retailers claim that a one-antenna WilsonPro commercial system will provide 50,000 square feet of coverage. That figure is unrealistic under typical conditions, and Powerful Signal warns consumers against purchasing WilsonPro systems from retailers who make such exaggerated claims.

FCC notice

For information on federal rules governing the use of consumer cell signal boosters, please see our FCC notice page.

Prop 65 notice

Caution triangle icon Warning This product can expose you to chemicals, including nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Specifications

Usage:
Large building
Strong outside signal (−95 dBm RSRP, 5 bars):
Up to 45,000 ft² indoor coverage @ 700 MHz
Fair outside signal (−105 dBm RSRP, 3 bars):
Up to 7,500 ft² indoor coverage @ 700 MHz
Weak outside signal (−115 dBm RSRP, 1 bar):
Nᴏᴛ ʀᴇᴄᴏᴍᴍᴇɴᴅᴇᴅ
Outside Antenna:
Omnidirectional cylinder
Inside Antenna:
Omnidirectional domes (×2)
Cable Type:
400
Connector Type:
N
Impedance:
50 Ω
Gain/Loss:
+70 dB max
Booster Case Material:
Metal
Signal Readout:
Color LCD display with output signal in dBM

Warranty Information

For warranty information on this product, please see our WilsonPro warranty information page.
