    weBoost Office 100 Commercial Cellular Booster 50 Ohm 1 Antenna

    weBoost’s best value for small business
    Bulk Pricing:
    Buy in bulk and save

    Tier Price Rates

    • Premier solution for small businesses
    • Outside omni antenna; inside dome antenna
    • Boosts voice & 5G/4G data for all major cellular carriers
    • 50-ohm system with N connectors & low-loss 400 coax cable
    Outside Signal Strength
    Coverage @ 700 MHz LTE
    5 Bars
    Up to 15,000 ft²
    3 Bars
    Up to 9,000 ft²
    1 Bar
    Up to 2,500 ft²

    Free lifetime support
    $1,299.99
    SKU: 472060
    Shipping:
    Calculated at Checkout

    Product Description

    See our weBoost Office 100 Plus Kit, with high‑gain omni antenna, EDGE dome antenna, and adjustable building antenna mount!

    Call the experts at Powerful Signal for cell signal booster product information and lifetime support
    Call the experts at Powerful Signal for cell signal booster product information and lifetime support

    Features of the weBoost Office 100

    • Excellent coverage area for small businesses up to 15,000 square feet (depending on outside signal strength).
    • Includes commercial-grade antennas and coax cables.
    • The roof-mounted omnidirectional antenna provides reception for all towers and carriers and works well in areas without a clear line of sight to any particular tower.
    • The inside dome antenna mounts to drop ceilings and ceiling panels.
    • Boosts cell signal for multiple users with a moderate user load.
    • Boosts 5G and 4G/LTE service for voice, text, and data for all major U.S. cellular carriers. (Learn more about 5G compatibility.)
    • Three-year manufacturer’s warranty on the booster.

    The weBoost Office 100 improves cellular voice and data to reduce dropped calls and missed emails and texts, keeping your employees and customers connected with fewer dropped calls and undeliverable text messages, better voice quality, improved hotspot capability, faster internet speeds, better streaming, and more.

    The weBoost Office 100 provides maximum power for the best possible cellular reception in your small office. The Office 100 can reach cell towers up to twice as distant as the WilsonPro 70 Plus, Wilson’s previous small-business amplifier.

    This system includes one inside antenna that sends amplified signal to the phones in your building.

    What are the differences between the weBoost Office 100, Office 200, and Office 300 Installed? What are the differences between this system and the weBoost Office 200 and Office 300 Installed? Click here to find out!
    Upgrade option: Need more power or coverage? Get it here! Customers also like: Learn more about antenna and coverage options.

    Who is the weBoost Office 100 for?

    • Small offices that have moderate cellular user and data loads.
    • Large homes and custom homes that need improved cellular reception.
    • Small offices that frequently experience dropped calls, undelivered texts, or slow data rates.
    • Small offices in remote locations with weak cell service.
    • Small offices in urban locations with building materials that block outside cell signal (steel, glass, concrete, plaster, etc.).
    • Small offices below ground level, and other places where cell reception is poor.

    Get installation help with the weBoost smartphone app

    The weBoost app measures signal performance, pinpoints the nearest cell tower, and shows your cell signal strength before and after installation. It includes step-by-step setup instructions and how-to videos for weBoost products.

    The weBoost app for iPhone and Android smartphones for use with weBoost cell signal boosters

    Purchasing this weBoost Office 100 system

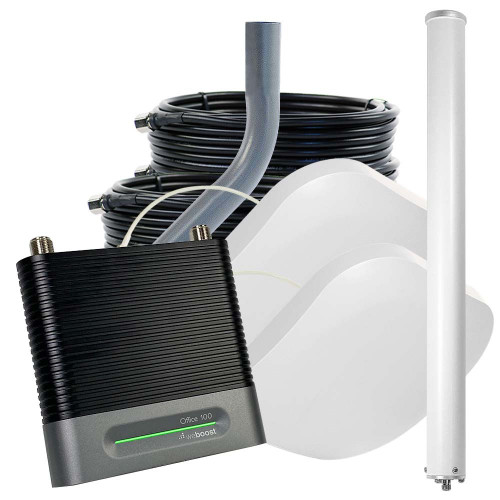

    The weBoost Office 100 can be self-installed if you are familiar with cellular amplification equipment. We’ll be happy to advise you on the best placement of antennas or provide a custom, turnkey solution. If you purchase this system as a standalone product, it includes the following components:

    weBoost Office 100 50-ohm booster 472060 icon weBoost Office 100 50‑ohm cell signal amplifier
    weBoost Office 100 120V AC/DC power supply icon AC wall outlet power supply
    Wilson Electronics Outside Omni Antenna 50 Ohm N-Female Connector 314422 icon Wilson wideband outdoor omni antenna w/mounting hardware 314422
    Wilson Electronics Indoor Ceiling-Mount Omnidirectional Dome Antenna 50 Ohm N-Female 304412 icon Wilson wideband indoor dome antenna w/nylon mounting nut 304412
    WILSON400 coax 75 ft. N-Male Connectors 952375 icon 75′ WILSON400 coax cable w/N‑male connectors 952375
    WILSON400 coax 60 ft. N-Male Connectors 952360 icon 60′ WILSON400 coax cable w/N‑male connectors 952360
    WILSON400 coax 2 ft. N-Male Connectors 952302 icon 2′ WILSON400 coax jumper cable w/N‑male connectors 952302
    Wilson 859902 Lightning Surge Protector 50 Ohm N-Female/N-Female icon Wilson 50‑ohm lightning surge protector 859902
    weBoost Office 100 472060 installation guide icon weBoost Office 100 install guide

    Optional plenum air coax cable upgrade

    The weBoost Office 100 system includes a 400-type coax cable to connect the amplifier to the inside antenna. If your building requires fire-rated cableexternal link icon in plenum spaces, please ask us about upgrading to ½‑inch plenum air coax. Plenum cable fully meets state and federal building codes.

    Plenum cable also has nearly half the signal loss per foot of cable compared to 400-type coax cable, delivering stronger signal from the weBoost amplifier to your phones and other cellular devices.

    (Plenum air cable is available at additional cost. Call Powerful Signal at 435-634-6800 for details.)

    400-type coax cable and plenum air coax cable terminated with N-male connectors This system uses 400 coax (left), but you can upgrade to fire-rated plenum air coax cable (right) for building-code compliance and better performance.

    How the weBoost Office 100 works

    Using Wilson Electronics’s patented technology, the weBoost Office 100 receives the outside cell signal, amplifies it, and rebroadcasts it inside your office through a ceiling-mounted dome antenna. This allows you to stay connected in areas where cell service is poor or where your office’s building materials interfere with signals from the local cell tower.

    Works with all major cellular carriers

    The weBoost Office 100 works with all major wireless carriers, including Verizon, AT&T, T-Mobile, DISH Wireless, UScellular, GCI Alaska, and most others.

    It operates on common cellular frequencies.

    • 700 MHz (SMH) bands 12, 13, 17.
    • 850 MHz (Cellular 850) band 5.
    • 1700/2100 MHz (AWS) band 4.
    • 1900 MHz (PCS) bands 2, 25.
    Carrier logos for Verizon, AT&T, T-Mobile, UScellular, DISH Wireless, GCI Alaska
    T-Mobile customers please read about band 71 and cell signal boosters

    How much area will the weBoost Office 100 cover?

    The coverage area this system can provide depends on many factors, including:

    • Outside signal strength received by the outside donor antenna.
    • Where you mount the inside dome antenna.
    • Inside building materials. (Cellular frequencies pass through wood framing and drywall more easily than through steel and concrete.)
    • The cellular frequencies used by the carrier. (Lower-frequency SMH and CLR signals travel farther than higher-frequency AWS and PCS signals.)

    In general, the stronger the outside cell signal, the greater the interior broadcast distance.

    Powerful Signal has has been designing and installing cellular amplification systems since 2007. Please call us at 435-634-6800 or contact us online, and we’ll be happy to calculate the coverage area this system will provide in your building and answer any other questions about this amplifier.

    FCC notice

    For information on federal rules governing the use of consumer cell signal boosters, please see our FCC notice page.

    Prop 65 notice

    Caution triangle icon Warning This product can expose you to chemicals, including nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govexternal link icon.

    Product Specifications

    Usage:
    Small office
    Strong outside signal (−95 dBm RSRP, 5 bars):
    Up to 15,000 ft² indoor coverage @ 700 MHz
    Fair outside signal (−105 dBm RSRP, 3 bars):
    Up to 9,000 ft² indoor coverage @ 700 MHz
    Weak outside signal (−115 dBm RSRP, 1 bar):
    Up to 2,500 ft² indoor coverage @ 700 MHz
    Outside Antenna:
    Omnidirectional cylinder
    Inside Antenna:
    Omnidirectional dome
    Cable Type:
    400
    Connector Type:
    N
    Impedance:
    50 Ω
    Gain/Loss:
    +72 dB max
    Max Output Power (Uplink):
    25.8 dBm
    Max Output Power (Downlink):
    13.6 dBm
    Booster Case Material:
    Metal & plastic
    Signal Readout:
    LED lights

    Warranty Information

    For warranty information on this product, please see our weBoost warranty information page.
