Top Signal 2X HiBoost 10K Cell Phone Signal Booster with 1 Antenna TS543021 (50 Ohm): Kit

Top Signal 2X HiBoost 10K Home Cell Signal Booster 1 Antenna TS543021

In stock—fast shipping!
  • Whole-house coverage for large homes
  • Covers up to 20,000 square feet
  • Supports up to 150 cell phone users simultaneously
  • Choice of dome or panel inside antenna
  • Choice of omni or directional outside antenna
  • 400 coax cable
  • 50-ohm system
  • Automatic or adjustable gain
  • Boosts voice, text & 4G/3G data
  • Works on Verizon, AT&T, T-Mobile, Sprint, & other networks
Outside Signal Strength
Coverage Area @ 800 MHz
Weak (−100 dBm, 1 bar)
Up to 2,400 ft²
Fair (−90 dBm, 2–3 bars)
Up to 12,500 ft²
Strong (−80 dBm, 4–5 bars)
Up to 20,000 ft²

SKU: TS543021-O1D4
Calculated at Checkout
Powerful Signal has been in business over 10 years Powerful Signal is Wilson Electronics' most experienced partner Powerful Signal offers lifetime support on all systems it sells Powerful Signal offers nationwide installation

Product Description

Features of the Top Signal 2X HiBoost 10K

  • Upgraded commercial-grade 400 coax cable delivers double the square foot coverage of the regular Top Signal HiBoost 10K system.
  • Provides improved signal for large homes and small offices.
  • Sturdy metal case.
  • Easy-to-read backlit LCD display, with uplink/downlink/power status on one screen and optional manual settings.
  • Boost signal for up to 150 simultaneous cellular devices.
  • Choice of outside and inside antennas at no additional charge. (Get help picking the right antennas.)
  • Includes commercial-grade antennas and components.
  • Carrier agnostic: Works with all major U.S. and Canadian carriers.
  • Boosts 4G LTE and 3G service for voice, text, and data.

The Top Signal 2X HiBoost 10K is a single-antenna system designed for large homes that need improved cell signal reception throughout the house. The 2X 10K improves both voice and data to reduce dropped calls and missed emails and texts, keeping your family members, friends, and guests connected with a stronger cell signal.

This kit includes one inside dome or panel antenna that sends amplified signal to the phones in your home.

HiBoost LCD display and controls The Top Signal 2X HiBoost 10K features a backlit LCD display and controls for gain and power.

This system doubles your coverage!

The Top Signal 2X HiBoost 10K system uses the same booster as the standard kit, but includes ⅜‑inch 400 coax cable with half the signal loss of the standard 240 coax. This 2X system will double the coverage area provided by your inside dome antenna.

The 2X system also includes an upgraded outdoor omni antenna that provides better signal gain to and from the cell tower.

Double the coverage area The low-loss 400 coax cable in this system doubles your amplified cell signal coverage area.

Who is the Top Signal 2X HiBoost 10K for?

  • Large homes with typical cellular user and data loads.
  • Residences in remote locations with weak cell service.
  • Urban environments with building materials that block outside cell signal (steel, glass, concrete, plaster, etc.).
  • Basements and other below-ground rooms where cell reception is poor.

Purchasing a Top Signal 2X HiBoost 10K system

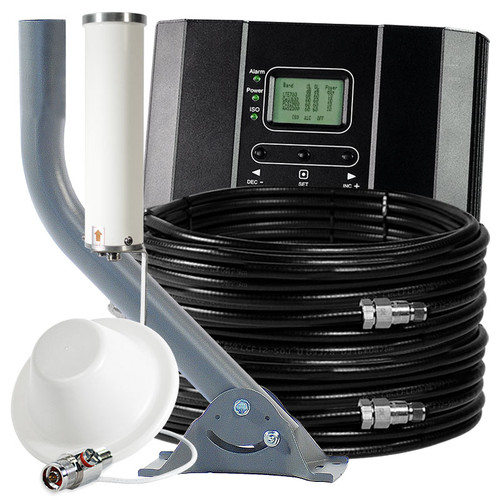

The Top Signal 2X HiBoost 10K kit comes with the following components:

Top Signal HighBoost 10K cell signal booster TS543011 icon Top Signal HiBoost 10K cell signal amplifier F15G‑5S‑LCD
HiBoost 12V/3A AC/DC power supply icon AC/DC adapter GM50‑120300‑F
Top Signal omnidirectional building antenna TS210471 icon Choice of… Wideband outdoor omni antenna TS210471
Top Signal 4G/3G Outdoor Pole-Mount Directional LPDA Antenna with N-Female Connector (50 Ohm) TS220971 icon …or Wideband outdoor LPDA antenna TS220971
Top Signal dome antenna TS250374 icon Choice of… Wideband indoor dome antenna TS250374
Top Signal panel antenna TS260771 icon …or Wideband indoor panel antenna TS260771
Top Signal 400 coax cable 30 feet TS340030 icon 30' 400 coax cable TS340030 (×2)
Top Signal adjustable rooftop antenna mount TS430001 icon Adjustable rooftop antenna mount TS430001
Top Signal 50-ohm lightning surge protector TS450001 icon 50‑ohm lightning surge protector TS450001
HiBoost Home 10K LCD user manual icon HiBoost Home 10K LCD user manual

How the Top Signal 2X HiBoost 10K works

The Top Signal 2X HiBoost 10K receives the outside cell signal, amplifies it, and rebroadcasts it inside your home through a ceiling-mounted dome antenna or wall-mounted panel antenna. This allows you to stay connected in areas where cell service is poor, or where your home’s construction materials interfere with signals from the local cell tower.

Works with all major cellular carriers

The Top Signal HiBoost 10K works with all major wireless carriers:

  • U.S. carriers, including Verizon, AT&T, T‑Mobile, Sprint, U.S. Cellular, and most others.
  • Canadian carriers, including Rogers, Bell Canada, Telus, Wind, and most others.

It operates on common 4G/3G cellular frequencies.

  • 700 MHz (SMH) bands 12, 13, 17.
  • 850 MHz (Cellular 850) band 5.
  • 1700/2100 MHz (AWS) band 4.
  • 1900 MHz (PCS) bands 2, 25.
Carrier logos for Verizon, AT&T, Sprint, T‑Mobile, U.S. Cellular

Which antennas should I choose?

This kit gives you the choice of an outdoor directional or omnidirectional antenna, and an indoor dome or panel antenna. Here are some general guidelines for selecting the right antennas.

Outside (donor) antenna:

  • The cylindrical omnidirectional antenna works best in most circumstances. The omni gathers signal from all carrier towers in all directions.
  • The wedge-shaped LPDA directional antenna works best if your building is in a remote location with one single, distant tower providing cell service for your area. The LPDA is also an excellent choice if there’s a powerful cell tower nearby, but you need to bypass that tower in favor of a more distant one operated by your preferred carrier.

Inside (broadcast) antenna:

  • The ceiling-mounted dome antenna works best in most circumstances. It broadcasts downward in a spherical shape (similar to the shape of a light bulb), and usually gives significantly more coverage than a panel antenna. A dome is also less noticeable than a wall-mounted panel. The dome antenna does, however, require access above the ceiling to pull cable and attach it to the antenna.
  • The wall-mounted panel antenna works best if you don’t have access above your ceiling, or if you need to mount the broadcast antenna on the outside perimeter of the area you want to cover. The panel antenna broadcasts forward in a wedge shape (similar to beam from a flashlight).

If you’re still not certain which antennas will work best for you, please call us at 866‑912‑3444. Our technical support representatives will be happy to discuss your specific requirements and give you a recommendation based on years of professional experience.

How much area will the Top Signal 2X HiBoost 10K cover?

This system comes with one dome antenna that broadcasts improved cellular signal in a spherical pattern, or a panel antenna that broadcasts in a horizontal cone shape. With strong outside cell signal (−80 dBm or greater), you can typically cover 20,000 square feet of indoor building space with 800 MHz signal. The size of the coverage area depends on many factors, including:

  • Outside cell signal strength received by the donor antenna.
  • Which indoor broadcast antenna your choose. (A dome antenna typically provides better signal coverage than a panel antenna.)
  • Inside building materials. (Cellular frequencies pass through wood framing and drywall more easily than through steel and concrete.)
  • Cellular frequencies used by the carrier and the device. (Lower-freqency LTE and 800 MHz signals travel farther than higher-frequency AWS and PCS signals.)

Substandard or inadequate conditions in any of these factors will reduce your coverage area.

Powerful Signal has over a decade of experience designing and installing cellular amplification systems. Please call us at 866‐912‐3444 or contact us online, and we’ll be happy to calculate the coverage area this system will provide in your building and answer any other questions about this amplifier.

FCC Notice

This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.

Please note: The four largest carriers (Verizon, AT&T, T‑Mobile, and Sprint) and more than 90 regional carriers have given blanket consent for use of all boosters that are certified to the 2013 FCC standards. Go to our Cell Phone Signal Booster Registration page and follow the links for your carrier. There are no fees to register your cell signal booster.

If you have any questions, please contact Powerful Signal.

Product Specifications

Coverage: Weak (−100 dBm, 1 bar):
Up to 2,400 ft²
Large home
−100 dBm (1 bar) outside signal:
Up to 2,400 ft² indoor coverage @ 800 MHz
−90 dBm (2–3 bars) outside signal:
Up to 12,500 ft² indoor coverage @ 800 MHz
−80 dBm (4–5 bars) outside signal:
Up to 20,000 ft² indoor coverage @ 800 MHz
Outside antenna:
Omnidirectional cylinder or directional LPDA
Inside antenna:
Omnidirectional dome or directional panel
Cable type:
Connector type:
50 Ω
+65 dB max
Max output power (uplink):
17–24 dBm
Max output power (downlink):
12 dBm
Booster case material:
Signal readout:
Backlit LCD display with adjustable uplink, downlink, & power by channel

Warranty Information

Signal booster (amplifier)

Top Signal-branded signal boosters are protected by Top Signal’s 30-day money-back guarantee. If the signal booster does not perform according to the manufacturer’s specifications, contact Powerful Signal by phone (866‑912‑3444) or online to arrange a return.

(Signal boosters that have been mounted are not eligible for a 30-day money-back guarantee, but are protected by warranty.)

Top Signal-branded signal boosters are further warranted for 3 years against defects in workmanship and/or materials. To resolve a warranty case, contact Powerful Signal by phone (866‑912‑3444) or online.

Powerful Signal shall, at its option, either repair or replace the signal booster. Powerful Signal will pay for delivery of the repaired or replaced product back to the original consumer if located within the continental U.S.

Neither the 30-day money-back guarantee nor the 3-year warranty apply to any signal booster determined by Powerful Signal to have been subjected to misuse, abuse, neglect, or mishandling that alters or damages its physical or electronic properties. Failure to use a surge-protected AC power strip with at least a 1000 Joule rating will void your warranty.

Components and accessories

Top Signal components and accessories are warranted for 90 days against defects in workmanship and/or materials. To resolve a warranty case, contact Powerful Signal by phone (866‑912‑3444) or online.

This warranty does not apply to any accessory or component determined by Powerful Signal to have been subjected to misuse, abuse, neglect, or mishandling that alters or damages its physical or electronic properties.


For our complete returns policy, please see our Shipping & Returns page.
