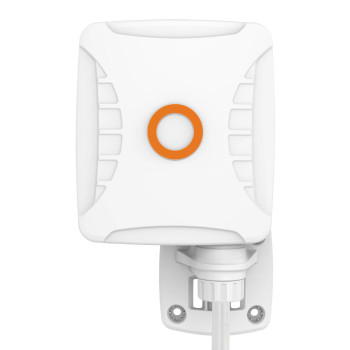

Poynting 4×4 MIMO XPOL-1-5G+ 5G/LTE Directional Antenna for Cellular Routers & Hotspots | A-XPOL-0001-V3-41

Poynting 4×4 MIMO XPOL-1-5G+ 5G/LTE Directional Antenna for Cellular Routers & Hotspots 410–6000 MHz 16.4 Feet HDF195 Coax

For 2×2 cellular routers, modems, and hotspots
Bulk Pricing:
Buy in bulk and save
  • For use with cellular routers
  • Wideband X-polarized 4×4 MIMO outdoor panel antenna
  • Up to 7 dBi gain
  • Quad 16.4″ HDF195 coax cables with 4 × SMA‑male connectors; optional add‑on adapters for TS9 & U.fl ports
  • Mounting hardware included; attaches to a pole, a wall, or an exterior window (hardware included; pole optional add‑on)

Free lifetime support
$189.99
SKU: TS220314
Shipping:
Calculated at Checkout

Product Description

Connects to a 4×4 cellular router, hotspot, or modem. Does not connect to a cell signal booster.

Features of the Poynting XPOL-1-5G+ 4×4 MIMO antenna

  • 9.7″ × 6.2″ × 3.5″ (246 × 157 × 88 mm) directional outdoor building antenna. Less than one quarter the size of Poynting’s XPOL-24 MIMO antenna!*
  • Connects to four cellular ports on a cellular router, modem, or hotspot with quad 16.4′ HDF195 coax cables and four SMA-male connectors. TS9 or U.fl/MHF adapters are available as an optional add-on.
  • Enclosure contains four cross-polarized antennas for superior signal strength, quality, and speed. Poynting’s patent-pending radiator configuration provides:
  • 1.5 dBi gain at 617–960 MHz.
  • 6 dBi gain at 1710–2700 MHz.
  • 7 dBi gain at 3300–4200 MHz.
  • 5 dBi gain at 4400–6000 MHz.
  • Includes hardware for three mounting options:
  • Pipe clamp attaches to poles. (Pole available as an optional add-on.)
  • Knock-in screws attach to masonry walls.
  • Suction cups attach to an exterior window.
  • Enclosure is IP 65-ratedexternal link iconfor protection against water immersion and dust. Pipe clamp and knock-in screws are rated for wind conditions up to 155 mph (250 kph).
  • 50-ohm impedance.
  • 2-year warranty.

The Poynting XPOL-1-5G+ is an ideal outdoor antenna for Fixed Wireless Access (FWA) and other cellular broadband applications. It’s ideally suited for homes, apartments/condos, small offices, small- to medium-sized businesses, and temporary offices on construction sites that use a cellular router as the primary or backup option for internet service.

* Measured in cubic dimensions: 264 × 157 × 88 mm (XPOL-1-5G+) ÷ 290 × 444 × 110 mm (XPOL-24) = 24.0%.

What’s a MIMO antenna?

A MIMO (multiple input, multiple output) antenna sends and receives signal through multiple simultaneous data streams, providing better signal strength and quality than SISO (single input, single output) antennas.

An LTE/5G 4×4 MIMO antenna may be the right solution for you if:

  • You need to improve signal reception on a router, hotspot, or modem that converts cellular signal to WiFi.
  • Your router or other device has four SMA, TS9, or U.fl/MHF ports.
  • The outdoor signal at your location is weak to moderate.
  • You need faster download speeds for streaming videos and downloading files.
  • You need improved signal for cellular frequencies that aren’t amplified by cell signal boosters (like band 71 and 5G bands between 2300 and 4000 MHz).

For needs other than these, a cell signal booster may be a better option. If you have any questions about which option is right for you, please feel free to contact Powerful Signal—we’ll be happy to help you!

Poynting XPOL-1-5G+ 4×4 MIMO antenna contents

Poynting XPOL-1-5G+ 4x4 MIMO Outdoor Panel Antenna with Twin 16.4-foot HDF195 Coax SMA-Male A-XPOL-0001-V3-41 TS220311 icon Panel antenna & bracket w/4 × 16.4′ HDF195 coax cables & SMA-male connectors A-XPOL-0001-V3-41
Poynting XPOL-1-5G+ 4x4 MIMO Outdoor Panel Antenna Pipe Clamp icon Worm-gear pipe clamp
Poynting XPOL-1-5G+ 4x4 MIMO Outdoor Panel Antenna Suction Cups icon Suction cups w/screws (×4)
Poynting XPOL-1-5G+ 4x4 MIMO Outdoor Panel Antenna M6 Hex Nuts icon M6 hex nuts (×4)
Poynting XPOL-1-5G+ 4x4 MIMO Outdoor Panel Antenna Knock-in Screws icon Screws w/knock-in anchors (×4)
Poynting XPOL-1-5G+ MIMO 4x4 Antenna A-XPOL-0001-V3-41 User Guide icon Poynting XPOL-1-5G+ user guide
Top Signal TS451040 SMA-Female to TS9-Male Connector icon Optional add-on
SMA-female to TS9-male adapter TS451040 (×2)
Top Signal TS392006 SMA-Female to U.fl/MHF 6-Inch Jumper Cable icon Optional add-on
6″ SMA-female to U.fl/MHF jumper cable TS392006 (×2)
Top Signal Adjustable Building Antenna Mount TS430001 icon Optional add-on
Adjustable building mount TS430001

Product Specifications

Usage:
Office/residential
Antenna Type:
Outside directional
Antenna Size:
9.7 × 6.2 × 3.5 in. (246 × 157 × 88 mm)
Polarization:
Vertical
Mount Type:
Bracket
Mount Spec:
Attaches to pole, wall, or window
Connector Type:
SMA-male w/optional adapters for TS9 & U.fl/MHF
Cable Type:
HDF195
Cable Length:
16.4 ft. (5 m)
Impedance:
50 Ω
Gain 410–470 MHz:
−4 dBi
Gain 617–960 MHz:
+1.5 dBi
Gain 1427–1517 MHz:
+2.0 dBi
Gain 1710–2700 MHz:
+6.0 dBi
Gain 3300–4200 MHz:
+7.0 dBi
Gain 4400–6000:
+5.0 dBi
VSWR:
≤2.5:1 across 90% of the bands
