Product Description
Connects to a 2×2 cellular router, hotspot, or modem. Does not connect to a cell signal booster.
Features of the Poynting XPOL-1-5G+ 2×2 MIMO antenna
- 9.7″ × 6.2″ × 3.5″ (246 × 157 × 88 mm) directional outdoor building antenna. Almost half the size of Poynting’s XPOL-2 MIMO antenna!*
- Connects to dual cellular ports on a cellular router, modem, or hotspot with twin 16.4′ HDF195 coax cables and two SMA-male connectors. TS9 or U.fl/MHF adapters are available as an optional add-on.
- Enclosure contains two cross-polarized antennas for superior signal strength, quality, and speed. Poynting’s patent-pending radiator configuration provides:
- 2 dBi gain at 617–960 MHz.
- 5 dBi gain at 1710–2700 MHz.
- 6 dBi gain at 3300–4200 MHz.
- 5.5 dBi gain at 4400–6000 MHz.
- Includes hardware for three mounting options:
- Pipe clamp attaches to poles. (Pole available as an optional add-on.)
- Knock-in screws attach to masonry walls.
- Suction cups attach to an exterior window.
- Enclosure is IP 65-rated
for protection against water immersion and dust. Pipe clamp and knock-in screws are rated for wind conditions up to 155 mph (250 kph).
- 50-ohm impedance.
- 2-year warranty.
The Poynting XPOL-1-5G+ is an ideal outdoor antenna for Fixed Wireless Access (FWA) and other cellular broadband applications. It’s ideally suited for homes, apartments/condos, small offices, small- to medium-sized businesses, and temporary offices on construction sites that use a cellular router as the primary or backup option for internet service.
What’s a MIMO antenna?
A MIMO (multiple input, multiple output) antenna sends and receives signal through multiple simultaneous data streams, providing better signal strength and quality than SISO (single input, single output) antennas.
An LTE/5G 2×2 MIMO antenna may be the right solution for you if:
- You need to improve signal reception on a router, hotspot, or modem that converts cellular signal to WiFi.
- Your router or other device has two SMA, TS9, or U.fl/MHF ports.
- The outdoor signal at your location is weak to moderate.
- You need faster download speeds for streaming videos and downloading files.
- You need improved signal for cellular frequencies that aren’t amplified by cell signal boosters (like band 71 and 5G bands between 2300 and 4000 MHz).
For needs other than these, a cell signal booster may be a better option. If you have any questions about which option is right for you, please feel free to contact Powerful Signal—we’ll be happy to help you!
Poynting XPOL-1-5G+ 2×2 MIMO antenna contents
Panel antenna & bracket w/2 × 16.4′ HDF195 coax cables & SMA-male connectors A-XPOL-0001-V3-21
Worm-gear pipe clamp
Suction cups w/screws (×4)
M6 hex nuts (×4)
Screws w/knock-in anchors (×4)
Poynting XPOL-1-5G+ user guide
Optional add-on
SMA-female to TS9-male adapter TS451040 (×2)
Optional add-on
6″ SMA-female to U.fl/MHF jumper cable TS392006 (×2)
Optional add-on
Adjustable building mount TS430001
Product Specifications
Usage:
Office/residential
Antenna Type:
Outside directional
Antenna Size:
9.7 × 6.2 × 3.5 in. (246 × 157 × 88 mm)
Polarization:
Vertical
Mount Type:
Bracket
Mount Spec:
Attaches to pole, wall, or window
Connector Type:
SMA-male w/optional adapters for TS9 & U.fl/MHF
Cable Type:
HDF195
Cable Length:
16.4 ft. (5 m)
Impedance:
50 Ω

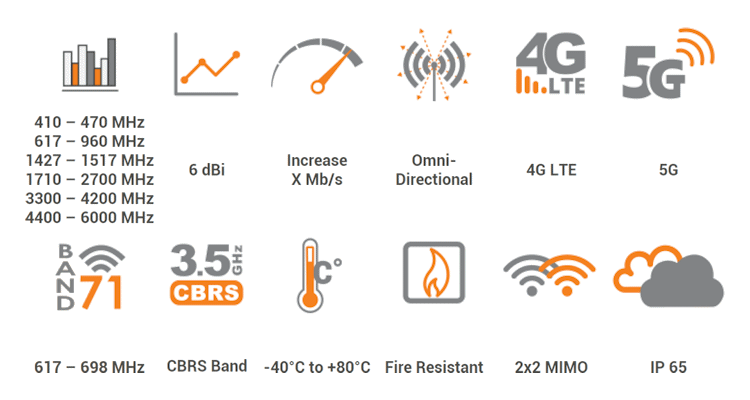

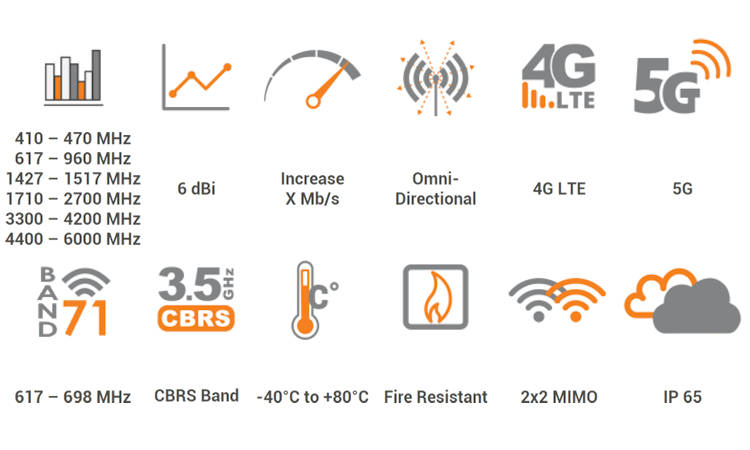

Gain 410–470 MHz:
−4 dBi
Gain 617–960 MHz:
+2.0 dBi
Gain 1427–1517 MHz:
+2.5 dBi
Gain 1710–2700 MHz:
+5.0 dBi
Gain 3300–4200 MHz:
+6.0 dBi
Gain 4400–6000:
+5.5 dBi
VSWR:
≤2:1 across 90% of the bands
Warranty Information
For warranty information on this product, please see our Poynting warranty information page.
