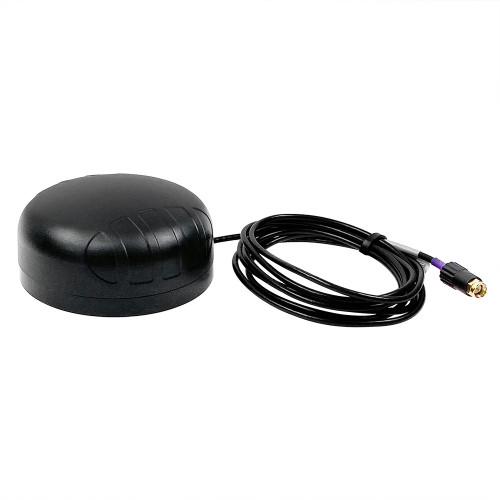

Poynting PUCK-1 5G/LTE Marine Antenna 7 dBi 617–4200 MHz SMA-Male | A-PUCK-0001-V1-01-W | TS210616W

Poynting PUCK-1 5G/LTE Marine Antenna 7 dBi 698–3800 MHz SMA-Male TS210616W

6 mounting options & excellent high-band gain
Bulk Pricing:
Buy in bulk and save
  • Low-profile wideband omni antenna with up to 7 dBi of gain
  • Excellent option as an interior or exterior antenna for boats & ships, as well as RVs, trailers & vans
  • Attached 6.6′ RTK031 coax cable with SMA-male connector
  • Includes magnetic base, 3M® adhesive pad, 2 spigot mounts & pole/wall-mount bracket
  • Works with 50-ohm cell signal boosters

Free lifetime support
$69.99
SKU: TS210616W 
Shipping:
Calculated at Checkout

Product Description

Features of the Poynting PUCK‑1 marine antenna

  • 3.9″ ᴅ × 1.4″ ʜ (99.3 × 36 mm) omnidirectional marine, vehicle, and IoT/M2M antenna.
  • Attaches outside as a donor antenna or inside as a broadcast antenna in a boat, ship, RV, trailer, van, or other vehicle.
  • 6′ 7″ (2 m) flexible RTK031 coax cable with SMA‑male connector.
  • Covers 4G/LTE and 5G operating frequencies, including 3.4–4.0 GHz CBRS and C‑band, with 7–8 dBi gain above 1710 MHz.
  • Six mounting options (mounting accessories included, except where noted):
    1. Magnetic base attaches to a ferrous surfaces. Includes a side-exit channel for the coax cable.
    2. Surface mount attaches securely to most surfaces with a double-sided 3M® foam adhesive pad.
    3. Spigot mount attaches through a 0.8″ (20 mm) hole with 1.2″ (30 mm) or 2.75″ (70 mm) two-piece threaded spigot posts and nut.
    4. Pipe mount bracket attaches to a vertical or horizontal pole. (Requires a cable tie or hose clamp, purchased separately.)
    5. Wall mount bracket attaches to a drillable vertical surface with screws of appropriate length (purchased separately).
    6. Panel mount attaches through a thin surface with M4×10 mm bolts (included) or through a thicker drillable surface with longer M4 bolts (purchased separately).
  • The rugged PC+ABS radome is IK10 impact-ratedexternal link icon and IP 69K-ratedexternal link icon for protection against water immersion and dust. It’s also rated for wind conditionsexternal link icon up to 135 ᴍᴘʜ (220 ᴋᴘʜ ), depending on the selected mounting option.
  • Ground plane-independent.
  • 50‑ohm impedance.
  • 2‑year warranty.

Installation

The Poynting PUCK‑1 marine antenna has six mounting options for flexible use as a broadcast antenna inside your vessel or as an outside donor antenna.

Click here to download the PDF user guide with installation instructions.

Poynting PUCK-1 marine antenna A-PUCK-0001-V1-01-W TS210616W magnet mount Magnet mount

(cable side exit)
Poynting PUCK-1 marine antenna A-PUCK-0001-V1-01-W TS210616W surface mount Surface mount
with 3M® adhesive pad

(cable side exit)
Poynting PUCK-1 marine antenna A-PUCK-0001-V1-01-W TS210616W spigot mount Spigot mount
with 30 mm or 70 mm spigot

(cable bottom exit)
Poynting PUCK-1 marine antenna A-PUCK-0001-V1-01-W TS210616W pipe mount Horizontal or vertical pipe mount

(cable side or bottom exit; zip tie or hose clamp required)
Poynting PUCK-1 marine antenna A-PUCK-0001-V1-01-W TS210616W wall mount Wall mount

(cable side or bottom exit; additional screws required)
Poynting PUCK-1 marine antenna A-PUCK-0001-V1-01-W TS210616W panel mount Panel mount

(cable side exit; longer M4 bolts may be required)

Poynting PUCK‑1 marine antenna contents

Poynting PUCK-1 Marine Antenna A-PUCK-0001-V1-01-W TS210616W icon Antenna w/2 m RTK031 coax cable & SMA-male connector A-PUCK-0001-V1-01-W
Poynting PUCK-1 Marine Antenna A-PUCK-0001-V1-01-W M4 Screws icon M4 screws (×4)
Poynting PUCK-1 Marine Antenna A-PUCK-0001-V1-01-W Magnetic Base Plate icon Magnetic base plate
Poynting PUCK-1 Marine Antenna A-PUCK-0001-V1-01-W 3M Foam Adhesive Pad icon 3M® foam adhesive pad
Poynting PUCK-1 Marine Antenna A-PUCK-0001-V1-01-W 70 mm Spigot icon 70 mm spigot
Poynting PUCK-1 Marine Antenna A-PUCK-0001-V1-01-W 30 mm Spigot icon 30 mm spigot
Poynting PUCK-1 Marine Antenna A-PUCK-0001-V1-01-W Spigot Nut icon Spigot nut
Poynting PUCK-1 Marine Antenna A-PUCK-0001-V1-01-W Pole/Wall Bracket icon Pole/wall bracket
Poynting PUCK-1 Marine Antenna A-PUCK-0001-V1-01-W User Guide icon Poynting PUCK-1 user guide

Product Specifications

Usage:
Marine/vehicle
Antenna Type:
Indoor/outdoor omnidirectional
Antenna Length:
3.9 in. (9.93 cm) W × 1.4 in. (3.6 cm) H
Polarization:
Vertical
Connector Type:
SMA-male
Cable Type:
RTK031
Cable Length:
6.6 ft. (2 m)
Mount Type:
Magnetic, adhesive, spigot, pole/wall bracket
Mount Spec:
Attaches to steel, poles, flat surfaces, drillable surfaces
Impedance:
50 Ω
Gain 698–960 MHz:
−1.0 dBi
Gain 1427–1527:
+2.0 dBi
Gain 1710–2700 MHz:
+7.0 dBi
Gain 3400–4200 MHz:
+8.0 dBi
VSWR:
<2.5:1
Beamwidth Horizontal Plane:
360°
