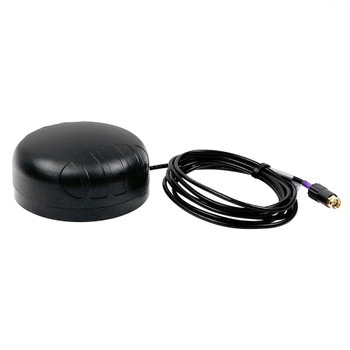

Poynting PUCK-1 5G/LTE Antenna 5.5 dBi 617–6000 MHz SMA-Male |  A-PUCK-0001-V2-01 | TS210616

Poynting PUCK-1 LTE/5G Antenna 5.5 dBi 617–6000 MHz SMA-Male TS210616

6 mounting options & excellent high-band gain
Bulk Pricing:
Buy in bulk and save
  • Low-profile wideband omni antenna with up to 5.5 dBi of gain
  • Excellent option as an interior or exterior antenna for cars, SUVs, trucks, vans, RVs, trailers, boats & other vehicles
  • Attached 6.6′ RTK031 coax cable with SMA-male connector
  • Includes magnetic base, 3M® adhesive pad, 2 spigot mounts & pole/wall-mount bracket
  • Works with 50-ohm cell signal boosters

Free lifetime support
$69.99
SKU: TS210616
Shipping:
Calculated at Checkout

Product Description

Features of the Poynting PUCK-1-V2 antenna

  • 3.9″ d × 1.4″ h (99.3 × 36 mm) omnidirectional vehicle, marine, and IoT/M2M antenna.
  • Attaches on the roof as a donor antenna or inside as a broadcast antenna in a car, truck, van, RV, motorhome, trailer, or other vehicle.
  • 6′ 7″ (2 m) flexible RTK031 coax cable with SMA-male connector.
  • Covers 4G/LTE and 5G operating frequencies, including 3.4–4.0 GHz CBRS and C‑band, with 4.5 dBi gain above 1710 MHz.
  • Six mounting options (mounting accessories included, except where noted):
    1. Magnetic base attaches to a steel vehicle roof or other ferrous surface. Includes a side-exit channel for the coax cable.
    2. Surface mount attaches securely to an aluminum vehicle roof or other non-magnetic surface with a double-sided 3M® foam adhesive pad.
    3. Spigot mount attaches through a 0.8″ (20 mm) hole with 1.2″ (30 mm) or 2.75″ (70 mm) two-piece threaded spigot posts and nut.
    4. Pipe mount bracket attaches to a vertical or horizontal pole. (Requires a cable tie or hose clamp, purchased separately.)
    5. Wall mount bracket attaches to a drillable vertical surface with screws of appropriate length (purchased separately).
    6. Panel mount attaches through a thin surface with M4×10 mm bolts (included) or through a thicker drillable surface with longer M4 bolts (purchased separately).
  • The rugged PC+ABS enclosure is IK10 impact-ratedexternal link icon and IP 69K-ratedexternal link icon for protection against water immersion and dust. It’s also rated for wind conditionsexternal link icon up to 135 mph (220 kph), depending on the selected mounting option.
  • Ground plane-independent.
  • 50‑ohm impedance.
  • 2‑year warranty.
Poynting PUCK-1 Vehicle/IoT Antenna A-PUCK-0001-V2-01 TS210616 Mounting Options The Poynting PUCK-1 antenna has 6 mounting options. (Learn more.)

Installation

The Poynting PUCK-1 antenna has six mounting options for flexible use as a broadcast antenna inside your vehicle or boat or as an outside donor antenna.

Click here to download the PDF user guide with installation instructions.

Poynting PUCK-1 vehicle/IoT antenna A-PUCK-0001-V2-01 TS210616 magnet mount Magnet mount

(cable side exit)
Poynting PUCK-1 vehicle/IoT antenna A-PUCK-0001-V2-01 TS210616 surface mount Surface mount
with 3M® adhesive pad

(cable side exit)
Poynting PUCK-1 vehicle/IoT antenna A-PUCK-0001-V2-01 TS210616 spigot mount Spigot mount
with 30 mm or 70 mm spigot

(cable bottom exit)
Poynting PUCK-1 vehicle/IoT antenna A-PUCK-0001-V2-01 TS210616 pipe mount Horizontal or vertical pipe mount

(cable side or bottom exit; zip tie or hose clamp required)
Poynting PUCK-1 vehicle/IoT antenna A-PUCK-0001-V2-01 TS210616 wall mount Wall mount

(cable side or bottom exit; additional screws required)
Poynting PUCK-1 vehicle/IoT antenna A-PUCK-0001-V2-01 TS210616 panel mount Panel mount

(cable side exit; longer M4 bolts may be required)

Poynting PUCK-1-V2 antenna contents

Poynting PUCK-1 Vehicle/IoT Antenna A-PUCK-0001-V2-01 TS210616 icon Antenna w/2‑meter RTK031 coax cable & SMA-male connector A-PUCK-0001-V2-01
Poynting PUCK-1 Vehicle/IoT Antenna A-PUCK-0001-V2-01 M4 Screws icon M4 screws (×4)
Poynting PUCK-1 Vehicle/IoT Antenna A-PUCK-0001-V2-01 Magnetic Base Plate icon Magnetic base plate
Poynting PUCK-1 Vehicle/IoT Antenna A-PUCK-0001-V2-01 3M Foam Adhesive Pad icon 3M® foam adhesive pad
Poynting PUCK-1 Vehicle/IoT Antenna A-PUCK-0001-V2-01 70 mm Spigot icon 70 mm spigot
Poynting PUCK-1 Vehicle/IoT Antenna A-PUCK-0001-V2-01 30 mm Spigot icon 30 mm spigot
Poynting PUCK-1 Vehicle/IoT Antenna A-PUCK-0001-V2-01 Spigot Nut icon Spigot nut
Poynting PUCK-1 Vehicle/IoT Antenna A-PUCK-0001-V2-01 Pole/Wall Bracket icon Pole/wall bracket
Poynting PUCK-2 Series Vehicle/IoT Antenna User Guide icon Poynting PUCK Series user guide

Product Specifications

Usage:
Vehicle/marine
Antenna Type:
Indoor/outdoor omnidirectional
Antenna Length:
3.9 in. (9.93 cm) W × 1.4 in. (3.6 cm) H
Polarization:
Vertical
Connector Type:
SMA-male
Cable Type:
RTK031
Cable Length:
6.6 ft. (2 m)
Mount Type:
Magnetic, adhesive, spigot, pole/wall bracket
Mount Spec:
Attaches to steel, poles, flat surfaces, drillable surfaces
Impedance:
50 Ω
Gain 617–960 MHz:
−2.0 dBi
Gain 1427–1527:
+2.0 dBi
Gain 1710–2700 MHz:
+4.5 dBi
Gain 3400–4200 MHz:
+5.5 dBi
Gain 5000–6000 MHz:
+5.0 dBi
VSWR:
<2.5:1
Beamwidth Horizontal Plane:
360°
