Product Description
Connects to a 2×2 cellular router, hotspot, or modem. Does not connect to a cell signal booster.
Features of the Poynting MIMO-3-12 “Badger” 2×2 MIMO vehicle antenna
- 10.0″ ʟ × 5.0″ ᴡ × 5.7″ ʜ (253 × 128 × 144 mm) omnidirectional vehicle antenna.

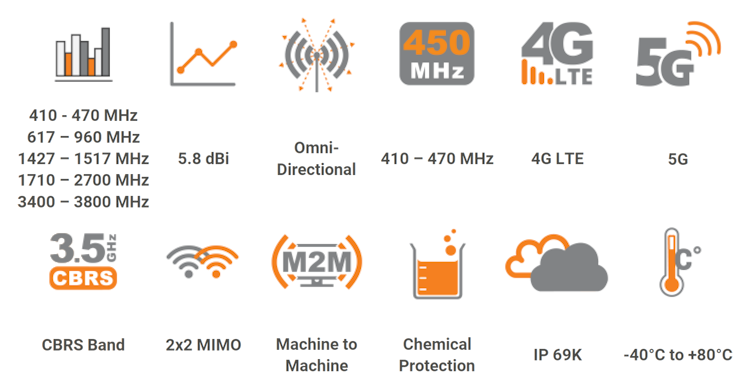

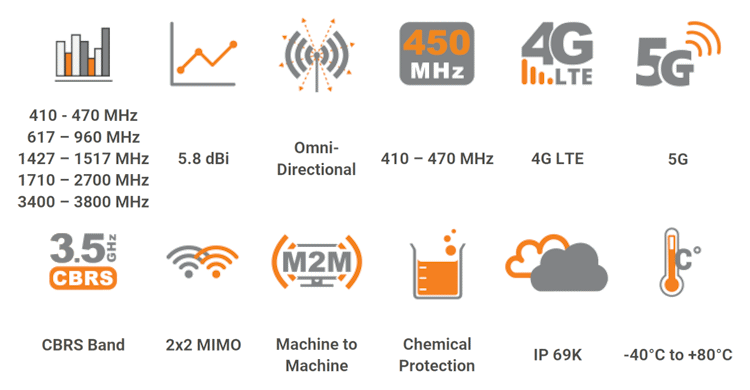

- Covers today’s 4G/LTE and 5G operating frequencies—including T-Mobile band 71 and 3.3–3.8 GHz CBRS and C‑band:
- 3.5 dBi gain on 617–960 MHz.
- 5.8 dBi gain on 1710–2700 MHz.
- 4.0 dBi gain on 3400–3800 MHz.
- Two 6.6′ (2 m) SMA‑male RTK031 coax cables connect to cellular ports on a 2×2 cellular router, modem, or hotspot. The cables are enclosed in a braided protection sleeve. (TS9 and U.fl/MHF adapters are available as an optional add-on.)
- Mounts on or above the roof of an RV, motorhome, trailer, van, or other vehicle.
- Three mounting options:
- Spigot mount (included) attaches through a 0.9″ (22 mm) hole with 0.4″ (10 mm) or 2.0″ (50 mm) two-piece threaded spigot posts and nut. (Requires a drilled entry point below the center the antenna to run the coax cables.)
- Surface mount (included) attaches securely to non-ferrous roofs and surfaces with a double-sided foam adhesive pad. (Includes a rear-exit channel for the coax cables.)
- Magnet mount (optional add-on) attaches securely to ferrous roofs and surfaces with six magnets.
- The rugged ASA enclosure is IK10 impact-rated
and IP 69K-rated
for protection against water immersion and dust. It’s also rated for wind conditions up to 135 ᴍᴘʜ (220 ᴋᴘʜ ), depending on the selected mounting option.
- Ground plane-independent.
- 50‑ohm impedance.
- 2‑year warranty.
Installation
The Poynting MIMO-3-12 antenna has three mounting options for flexible use as a cellular donor and WiFi broadcast antenna on your RV, trailer, van, or other vehicle.
Click here to download Poynting’s PDF user guide with installation instructions.
Spigot mount
with 10 mm or 80 mm spigot
(cable bottom exit)
Surface mount
with adhesive pad and discs
(cable rear exit)
Magnet mount
6 magnets and screws
optional add-on
(cable rear exit)
Sample installation videos:
Product Specifications
Usage:
Class A & class C RV / class B van / trailer
Antenna Type:
Omnidirectional MIMO
Antenna Length:
10.0 in. (25.3 cm) L × 5.0 in. (12.8 cm) W × 5.7 in. (14.4 cm) H
Polarization:
Vertical
Connector Type:
SMA-male
Mount Type:
Spigot, adhesive; magnet (optional)
Mount Spec:
Attaches to steel, flat surfaces, drillable surfaces
Impedance:
50 Ω
Gain 617–960 MHz:
+3.5 dBi
Gain 1710–2700 MHz:
+5.8 dBi
Gain 3400–3800 MHz:
+4.0 dBi
VSWR:
<2.5:1 across 90% of the bands
Beamwidth Horizontal Plane:
360°
Warranty Information
For warranty information on this product, please see our Poynting warranty information page.
