The SOLiD BARS™ off-air active DAS signal booster system is a multi-carrier solution that delivers carrier-grade cellular coverage over standard structured cabling. Designed specifically for the “Middleprise”—buildings that need reliable in-building cellular service but can’t justify the cost or complexity of a full-spectrum DAS—BARS improves cellular reception inside offices, hospitals, schools, hotels, retail stores, multi-dwelling units (MDUs), warehouses, and light industrial facilities that have weak or no cell signal.

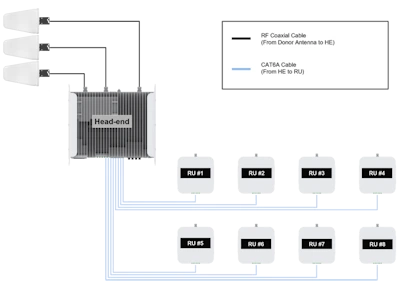

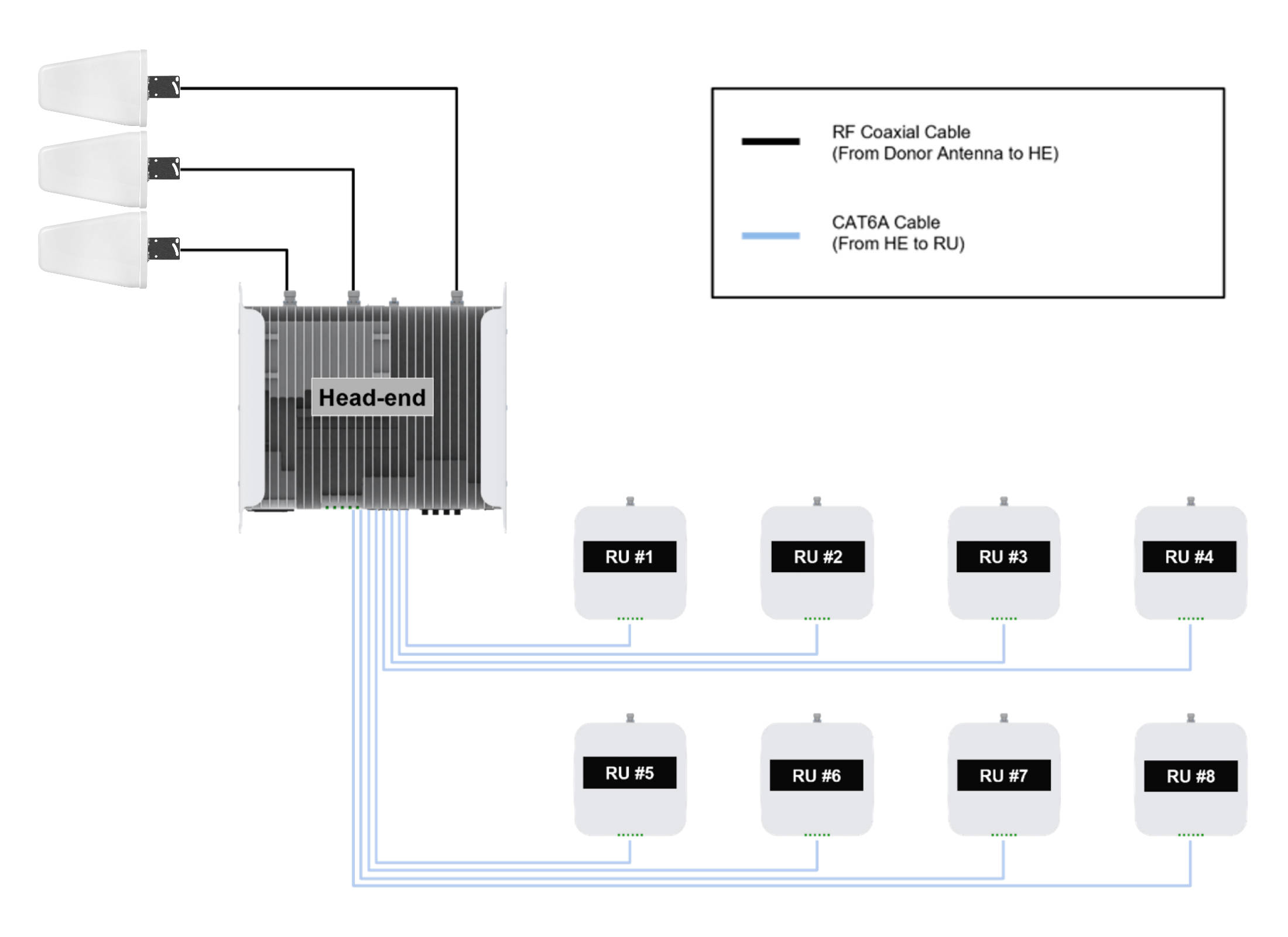

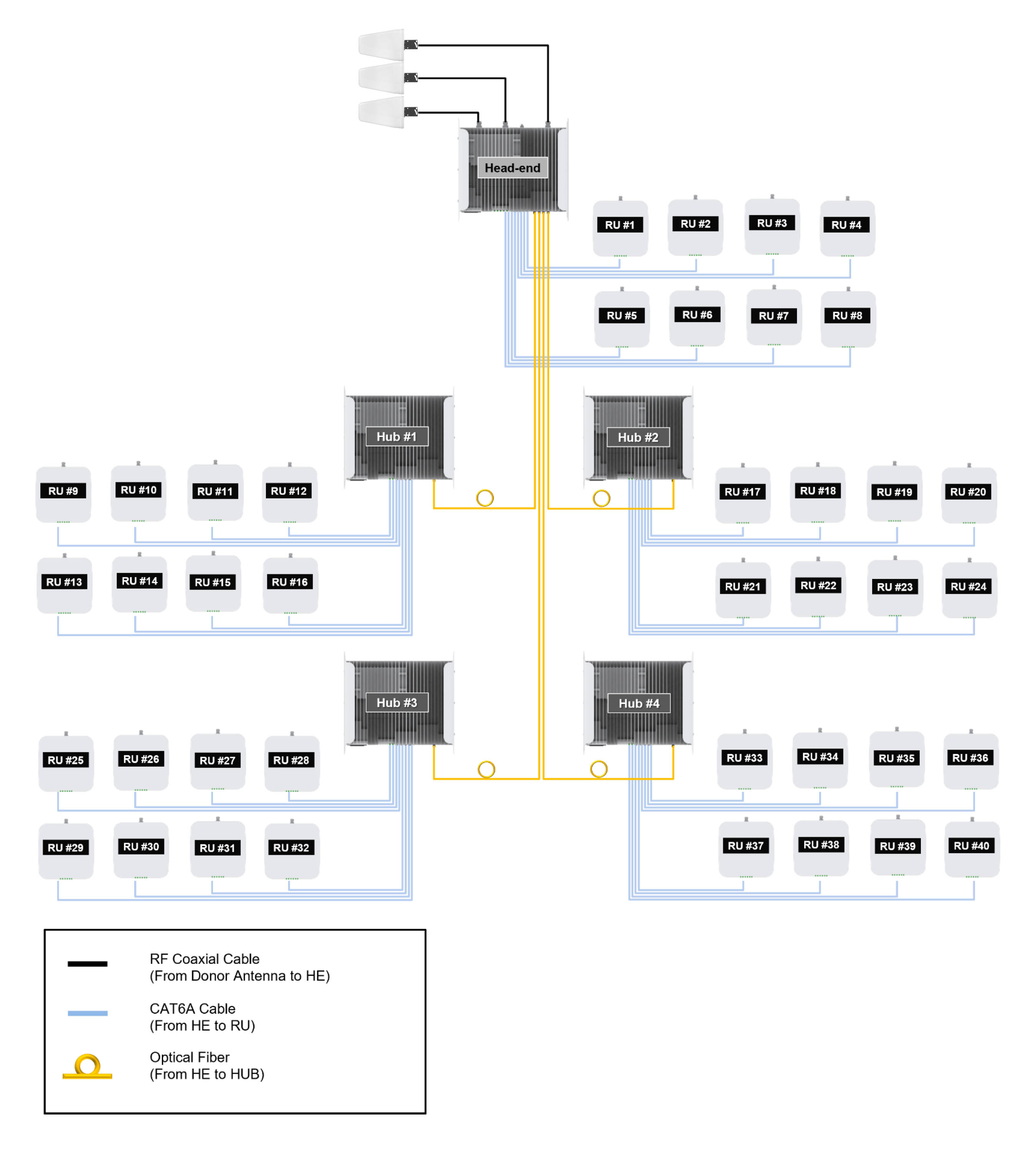

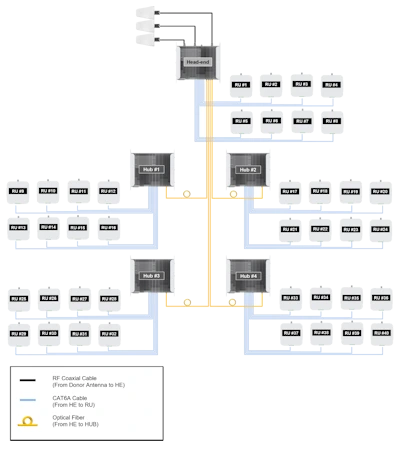

A single SOLiD BARS head-end natively supports up to 8 remote units, ideal for buildings of roughly 20,000–80,000 square feet. For larger venues, the system scales by adding up to four hubs to a single head-end—each hub powers another 8 RUs—for a total of up to 40 remote units per head-end. This makes SOLiD BARS an excellent solution for offices, schools, hospitals, hotels, multi-floor MDUs, and other Middleprise buildings.
The SOLiD BARS platform is highly scalable: as your coverage needs grow, additional remote units, hubs, or head-ends can be added without replacing core components or disrupting existing service. Powerful Signal can extend coverage into new floors, new wings, or adjacent buildings on your campus as your business grows.
In a large building, office, hospital, school, or hotel, you’ll get the best results and performance from a SOLiD BARS system with a custom design and professional installation.
Working with your floor plans, Powerful Signal’s design engineers will create design specifications that will allow you to use the fewest number of components to get the maximum amount of cellular coverage inside your building.
Powerful Signal’s professional installer will have knowledge of local building codes and the proper tools and experience to make sure your system is set up and configured correctly.
Call Powerful Signal at 435-634-6800 or request a free custom quote online. We’ll design a custom system that will solve your cellular reception and connectivity problems at the best possible price point. We’ve designed thousands of cell signal amplifier systems—let us create one for you!
A large office floor with amplified cellular signal from a SOLiD BARS system serving four remote units. (Click to enlarge.)
The SOLiD BARS data sheet covers full system specifications—supported carriers and bands, head-end and remote unit hardware, cabling and power requirements, scalability, and management—everything you need to evaluate SOLiD BARS for your building. Read the SOLiD BARS data sheet (PDF).
The SOLiD BARS™ system works with these cellular networks simultaneously:
SOLiD BARS supports up to three frequency bands per carrier, providing comprehensive 5G and 4G/LTE coverage for voice, text, and data—no matter which network your tenants, employees, or visitors use.
For information on federal rules governing the use of consumer cell signal boosters, please see our FCC notice page.
