Automotive NETGEAR Nighthawk M6 Cellular Router with Poynting PUCK-2 MIMO Antenna

In stock—fast shipping!
Bulk Pricing:: Buy in bulk and save

Converts 5G/4G cellular signal to a WiFi network
Low-profile wideband 2×2 MIMO roof antenna with 6 mounting options
Unlocked SIM card slot for use with your choice of cellular carrier
Compact & portable with a 2.4″ LCD touchscreen display
Rechargeable lithium-ion battery provides up to 9 hours of continuous use
USB-C port, Ethernet port & two TS‑9 antenna connectors
Works with Verizon, AT&T, T‑Mobile & most other North American cellular networks

NETGEAR

Free lifetime support

$699.99

SKU: TS570201

Shipping:

Calculated at Checkout

Quantity:

Description
More Information
Specifications
Warranty Information
Q&A

Product Description

Features of the Automotive NETGEAR Nighthawk M6 with Poynting PUCK-2 antenna

The Nighthawk M6 converts 5G and 4G cellular signal to WiFi signal, creating a wireless network in your car, truck, SUV, van, or other vehicle that can be used by computers, smartphones, tablets, and other WiFi-enabled devices. Its unlocked SIM card slot supports your choice of cellular data plan. (SIM card required.)
The rugged Poynting PUCK-2 cellular 2×2 MIMO antenna sends signal to and from cell towers with up to 5 dBi of gain and superior signal strength and quality. The PUCK-2 has two 6.6′ RTK031 coax cables in a protected sleeve and six mounting options. (Learn more.)
The Nighthawk M6 supports 5 GHz and 2.4 GHz WiFi 6 technology, offering faster data transfer and connectivity, with support for up to 32 connected devices.
The Nighthawk’s compact form factor—4.14″ × 4.14″ × 0.85″ (10.5 × 10.5 × 2.15 cm)—allows you take it with you to your home, business, hotel, RV, trailer, boat, hiking/camping, meetings/events, etc.
You can run your hotspot on AC or battery power. Its removable, rechargeable lithium-ion battery provides up to 9 hours of continuous usage.

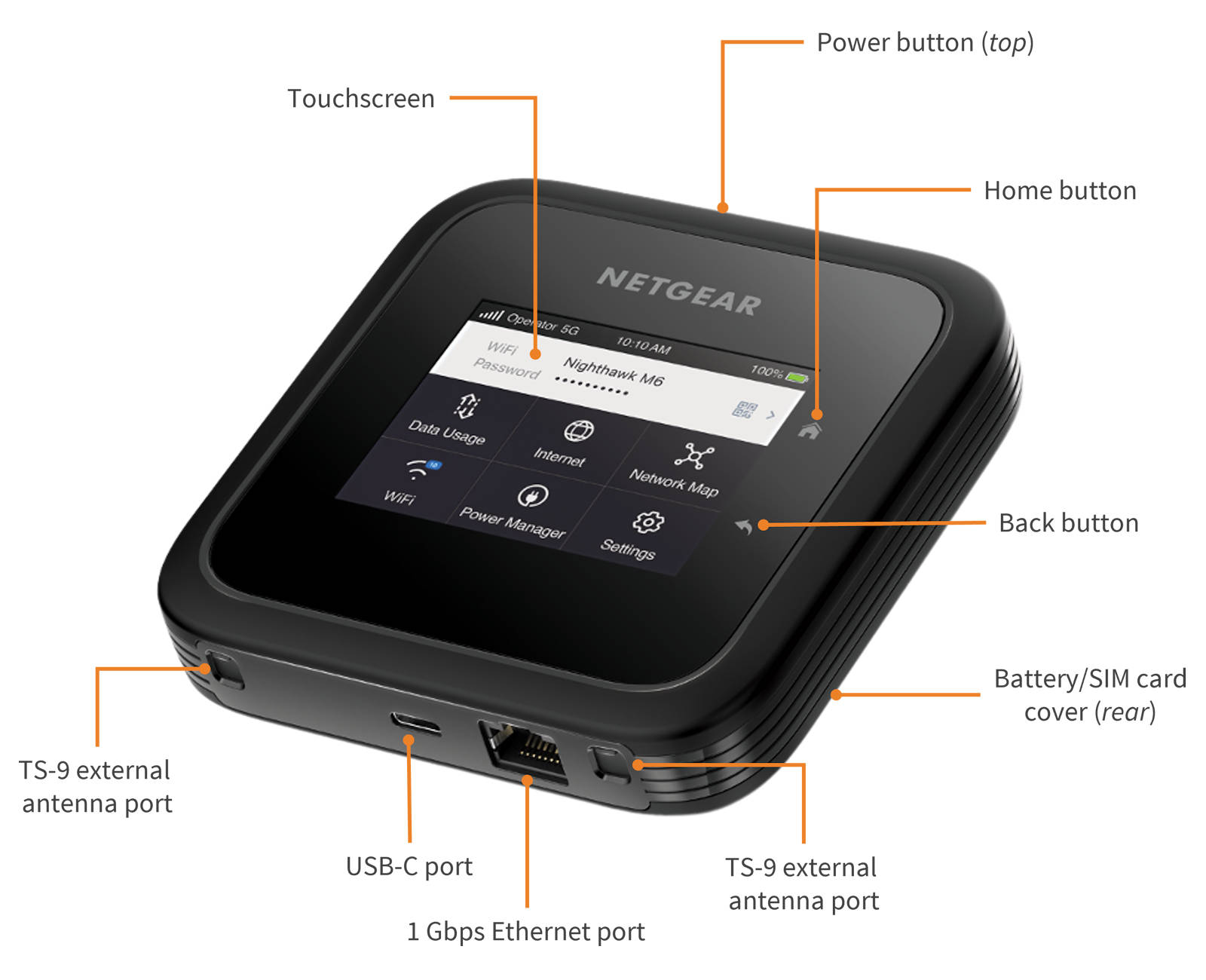

The Nighthawk’s simple, intuitive 2.4″ (6.1 cm) LCD touchscreen lets you easily see the WiFi name, password, and cellular signal strength, and easily monitor data usage and manage device and network settings.
A 1 Gbps Ethernet port connects to computers, smart TVs, and other wired devices. (Ethernet cable not included.)
A USB type C connector powers the hotspot, recharges its battery, and can provide data to other devices via USB-C tethering.
The Nighthawk M6 features WiFi offloading and Ethernet offloading, both with automatic failover. Use an external wireless or wired data source and the hotspot will automatically switch to cellular data if either becomes unavailable.
The Nighthawk M6 includes GPS location services to support GPS-enabled apps on connected devices.
The Nighthawk M6 operates on a wider range of cellular bands than consumer cell signal boosters. (Learn more.)
Includes NETGEAR’s one-year warranty plus a one-year subscription to NETGEAR Insight Pro remote management.

Poynting PUCK-2-V2 2x2 MIMO Transportation/IoT Antenna A-PUCK-0002-V2-01 TS210618 Mounting Options Exploded View

Poynting PUCK-2 2×2 MIMO transportation antenna has 6 mounting options. (Learn more.)

(Click to enlarge)

SIM card required (important—please read)

To use the NETGEAR Nighthawk M6 as a cellular router, you must have an activated nano-SIM card with a data plan. You can obtain a SIM card from your cellular carrier (Verizon, AT&T, T-Mobile, etc.) and add it to your existing data plan as an additional line. You can also purchase SIM cards from many retailers, including Amazon, Walmart, Target, and Best Buy; the data plan will either have a recurring monthly payment or will be a prepaid “pay-as-you-go” plan.

A nano-SIM card is about the size of a fingernail.

Who is the Automotive NETGEAR Nighthawk M6 with Poynting PUCK-2 antenna for?

Vehicles that operate on roads or in areas where cell service is fair or moderate.
Cars, trucks, vans, and fleet vehicles with WiFi-enabled tablets, laptops, and/or fleet-management devices.
Individuals and families who use in-vehicle entertainment devices, tablets, etc.
Sales representatives, service technicians, delivery drivers, oil and gas field workers, farm machinery operators, and other mobile professionals.
Government agencies and first responders with emergency vehicles and mobile command posts (police, fire, ambulance, park ranger, incident response, disaster recovery, etc.).
Users of T-Mobile band 71, AT&T band 30, CBRS band 48, or C-Band band 77 as their internet service. (These bands aren’t amplified by cellular boosters.)

For locations with weak cellular signal, a cell signal booster may be a better option in your motorhome or trailer. If you have any questions about which option is right for you, please feel free to contact Powerful Signal—we’ll be happy to help you!

Features of the Poynting PUCK-2 2×2 MIMO cellular transportation antenna

3.9″ ᴅ × 1.4″ ʜ (99.3 × 36 mm) omnidirectional vehicle, marine, and IoT/M2M antenna.
Attaches on the roof of or above a car, SUV, truck, van, RV, motorhome, trailer, or other vehicle.
Two 6.6′ (2 m) SMA-male RTK031 coax cables connect to cellular ports on the NETGEAR Nighthawk M6 with SMA-to-TS9 adapters (included). The cables are enclosed in a braided protection sleeve.
Covers 4G/LTE and 5G operating frequencies from 617 to 6000 MHz.
The rugged PC+ABS enclosure is IK10 impact-rated and IP 69K-rated for protection against water immersion and dust. It’s also rated for wind conditions up to 135 ᴍᴘʜ (220 ᴋᴘʜ ), depending on the selected mounting option.

The Poynting PUCK-2 antenna has six mounting options. (Click here to download the PDF user guide with installation instructions.)

Poynting PUCK-2-V2 2x2 MIMO Transportation/IoT Antenna A-PUCK-0002-V2-01 magnet mount

Magnet mount

(cable side exit)

Poynting PUCK-2-V2 2x2 MIMO Transportation/IoT Antenna A-PUCK-0002-V2-01 surface mount

Surface mount
with 3M® adhesive pad

(cable side exit)

Poynting PUCK-2-V2 2x2 MIMO Transportation/IoT Antenna A-PUCK-0002-V2-01 spigot mount

Spigot mount
with 30 mm or 70 mm spigot

(cable bottom exit)

Poynting PUCK-2-V2 2x2 MIMO Transportation/IoT Antenna A-PUCK-0002-V2-01 pipe mount

Horizontal or vertical pipe mount

(cable side or bottom exit; zip tie or hose clamp required)

Poynting PUCK-2-V2 2x2 MIMO Transportation/IoT Antenna A-PUCK-0002-V2-01 wall mount

Wall mount

(cable side or bottom exit; additional screws required)

Poynting PUCK-2-V2 2x2 MIMO Transportation/IoT Antenna A-PUCK-0002-V2-01 panel mount

Panel mount

(cable side exit; longer M4 bolts may be required)

Administer your hotspot with the NETGEAR Mobile app

The NETGEAR Mobile app for smartphones and tablets allows you to monitor and configure your Nighthawk M6 , view your cellular connection, track data usage, monitor your mobile hotspot connection and battery life, view connected devices, and turn off or reboot your hotspot.

Using the NETGEAR Mobile app to check your Nighthawk M6’s state and make changes is often faster and more convenient than using the hotspot’s touchscreen controls.

NETGEAR Mobile app for iPhone and Android smartphones for use with NETGEAR routers

Purchasing an Automotive NETGEAR Nighthawk M6 with Poynting PUCK-2 antenna

This system includes the following components:

NETGEAR Nighthawk M6 MR6220 router MR6220G-111NAS

5185 mAh li-ion battery W-20b

AC/DC USB adapter 332-1106-03

1 m (39.4″) USB-A to USB-C cable

NETGEAR Nighthawk M6 Quick Start Guide

Poynting PUCK-2-V2 antenna w/6.6′ 2 × RTK031 coax cable bundle A‑MIMO‑0003‑V2‑17

M4 screws (×4)

Magnetic base plate

3M® foam adhesive pad

70 mm spigot

30 mm spigot

Spigot nut

Pole/wall bracket

Poynting PUCK v2-series user guide

Works with all major cellular carriers

The NETGEAR Nighthawk M6 works with all major wireless carriers, including Verizon, AT&T, T-Mobile, DISH Wireless, UScellular, GCI Alaska, and most others (including MVNOs).

It operates on a wide range of 5G/NR and 4G/LTE cellular bands, including bands that are not currently amplified by cell signal boosters. Some of the bands the Nighthawk M6 uses include:*
