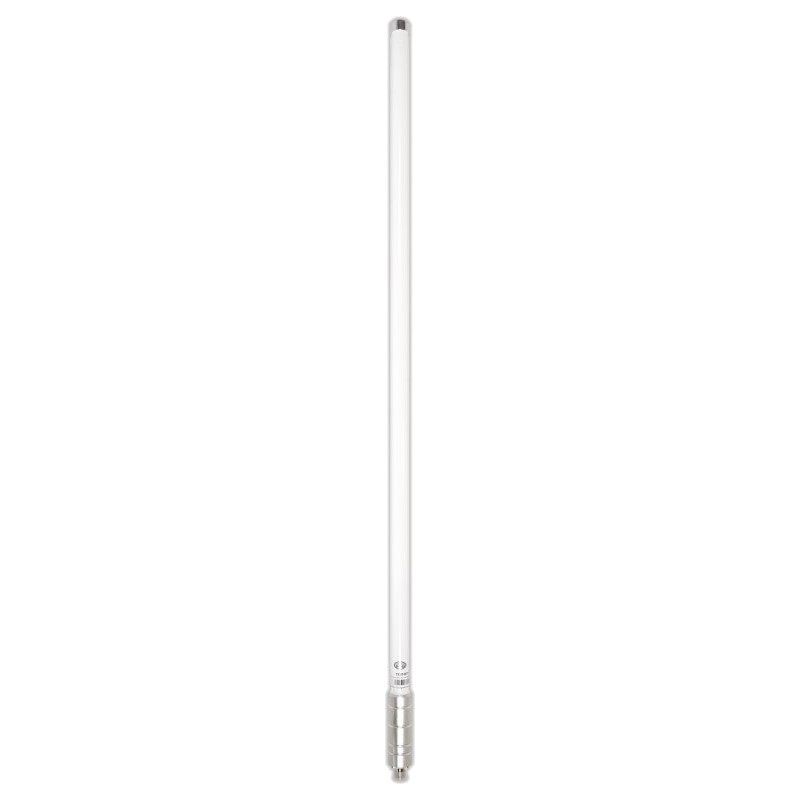

Top Signal 40" 4G LTE Omni Antenna 746-806MHz 6dB

This 40" omni antenna is specialy designed for use with Verizon 4G LTE frequency.  This 6dB Omni-directional antenna is constructed of fiberglass radome for durability, aesthetics, and long life.  It is designed for all weather operation.  This type of antenna (omni-directional) can be used to collect signal from 360° around the antenna.  The TS210671 works well when there is not a good line of sight to the tower.



This antenna features an integral N-Female type connector.  Mounting is easy with a 2 U-bolt mounting kit (included) that allows installation on masts up to 2" in diameter.



Features 6dB, 40" All Weather Anodized Aluminum N-Female Connector Solid Aluminum Elements Heavy duty mounting hardware

Applications Verizon LTE 4G 750Mhz Upper Band Point-to-Multipoint Applications



Model	TS210671
Frequency	746-806MHz
Gain	6dBi
Polarization	Vertical
Horizontal Beam	360º
Vertical Beam	30º
VSWR	<1.5
Fronto Back Ratio	>15dB
Impedance	50 ohm
Input Max Power	200 W
Lightning Protection	DC Ground
Connector	N-Female
Size	39.37 in / 100 cm
Radiating Elec. Material	Cu Ag
Radome Material	Fiberglass
Operating Temperature	-40 to 85º C -40 to 185º F
Diameter of Installation Pole	1.2-2.3 in 30-55 mm
Weight	3.3 lbs 1.5 kg
Wind Loading 100 MPH 120 MPH	7 lb 10 lb
